#include "LArPandoraOutput.h"

Classes
class	Settings
	Settings class. More...

Public Types
typedef std::vector< size_t >	IdVector

typedef std::map< size_t, IdVector >	IdToIdVectorMap

typedef std::map< const pandora::CaloHit *, art::Ptr< recob::Hit > >	CaloHitToArtHitMap

typedef std::unique_ptr< std::vector< recob::PFParticle > >	PFParticleCollection

typedef std::unique_ptr< std::vector< recob::Vertex > >	VertexCollection

typedef std::unique_ptr< std::vector< recob::Cluster > >	ClusterCollection

typedef std::unique_ptr< std::vector< recob::SpacePoint > >	SpacePointCollection

typedef std::unique_ptr< std::vector< anab::T0 > >	T0Collection

typedef std::unique_ptr< std::vector< larpandoraobj::PFParticleMetadata > >	PFParticleMetadataCollection

typedef std::unique_ptr< std::vector< recob::Slice > >	SliceCollection

typedef std::unique_ptr< art::Assns< recob::PFParticle, larpandoraobj::PFParticleMetadata > >	PFParticleToMetadataCollection

typedef std::unique_ptr< art::Assns< recob::PFParticle, recob::SpacePoint > >	PFParticleToSpacePointCollection

typedef std::unique_ptr< art::Assns< recob::PFParticle, recob::Cluster > >	PFParticleToClusterCollection

typedef std::unique_ptr< art::Assns< recob::PFParticle, recob::Vertex > >	PFParticleToVertexCollection

typedef std::unique_ptr< art::Assns< recob::PFParticle, anab::T0 > >	PFParticleToT0Collection

typedef std::unique_ptr< art::Assns< recob::PFParticle, recob::Slice > >	PFParticleToSliceCollection

typedef std::unique_ptr< art::Assns< recob::Cluster, recob::Hit > >	ClusterToHitCollection

typedef std::unique_ptr< art::Assns< recob::SpacePoint, recob::Hit > >	SpacePointToHitCollection

typedef std::unique_ptr< art::Assns< recob::Slice, recob::Hit > >	SliceToHitCollection

Static Public Member Functions
static void	ProduceArtOutput (const Settings &settings, const IdToHitMap &idToHitMap, art::Event &evt)
	Convert the Pandora PFOs into ART clusters and write into ART event.

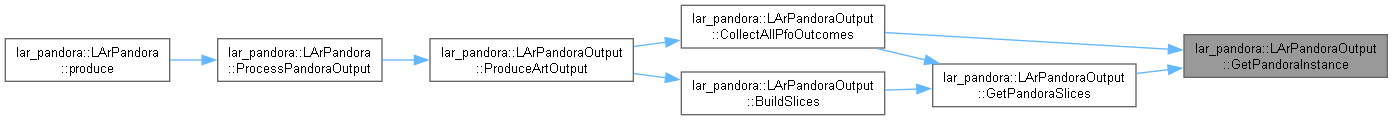

static bool	GetPandoraInstance (const pandora::Pandora const pPrimaryPandora, const std::string &name, const pandora::Pandora &pPandoraInstance)
	Get the address of a pandora instance with a given name.

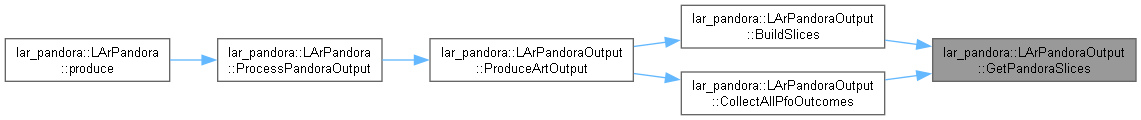

static void	GetPandoraSlices (const pandora::Pandora *const pPrimaryPandora, pandora::PfoVector &slicePfos)
	Get the slice pfos - one pfo per slice.

static bool	IsClearCosmic (const pandora::ParticleFlowObject *const pPfo)
	Check if the input pfo is an unambiguous cosmic ray.

static bool	IsFromSlice (const pandora::ParticleFlowObject *const pPfo)
	Check if the input pfo is from a slice.

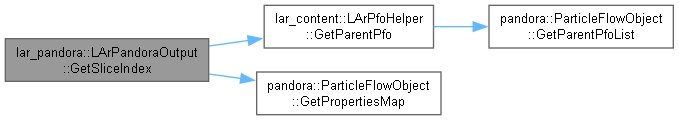

static unsigned int	GetSliceIndex (const pandora::ParticleFlowObject *const pPfo)
	Get the index of the slice from which this pfo was produced.

static pandora::PfoVector	CollectPfos (const pandora::Pandora *const pPrimaryPandora)
	Collect the current pfos (including all downstream pfos) from the master pandora instance.

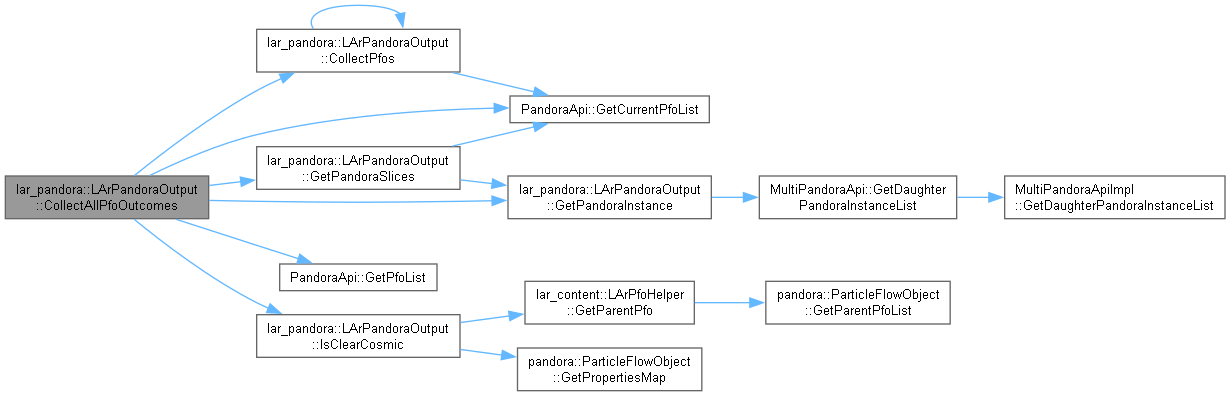

static pandora::PfoVector	CollectAllPfoOutcomes (const pandora::Pandora *const pPrimaryPandora)
	Collect the pfos (including all downstream pfos) from the master and daughter pandora instances.

static void	CollectPfos (const pandora::PfoList &parentPfoList, pandora::PfoVector &pfoVector)
	Collect a sorted list of all downstream pfos of an input list of parent.

static pandora::VertexVector	CollectVertices (const pandora::PfoVector &pfoVector, IdToIdVectorMap &pfoToVerticesMap, std::function< const pandora::Vertex const(const pandora::ParticleFlowObject const)> fCriteria)
	Collect all vertices contained in the input pfo list Order is guaranteed provided pfoVector is ordered.

static pandora::ClusterList	CollectClusters (const pandora::PfoVector &pfoVector, IdToIdVectorMap &pfoToClustersMap)
	Collect a sorted list of all 2D clusters contained in the input pfo list Order is guaranteed provided pfoVector is ordered.

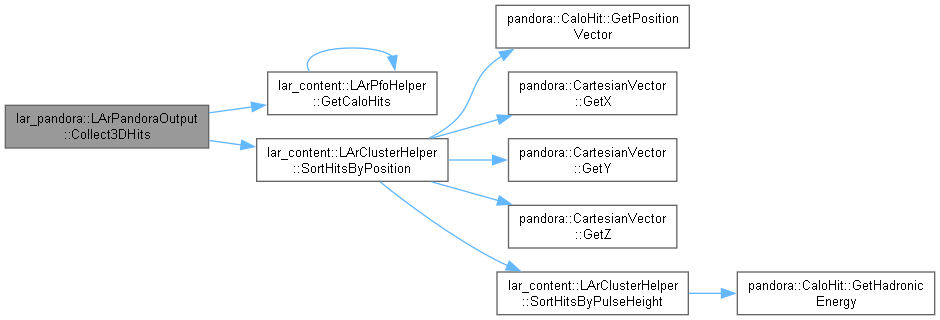

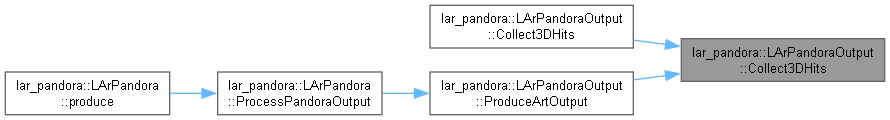

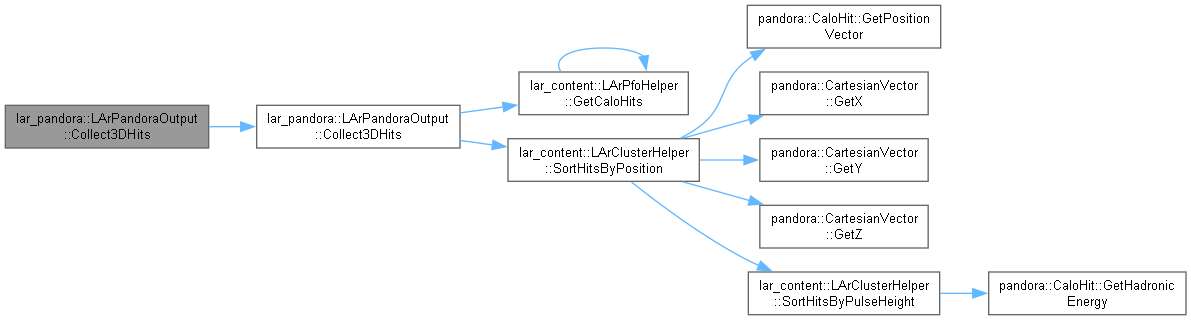

static void	Collect3DHits (const pandora::ParticleFlowObject *const pPfo, pandora::CaloHitVector &caloHits)
	Collect a sorted vector of all 3D hits in the input pfo.

static pandora::CaloHitList	Collect3DHits (const pandora::PfoVector &pfoVector, IdToIdVectorMap &pfoToThreeDHitsMap)
	Collect a sorted list of all 3D hits contained in the input pfo list Order is guaranteed provided pfoVector is ordered.

template<typename T >

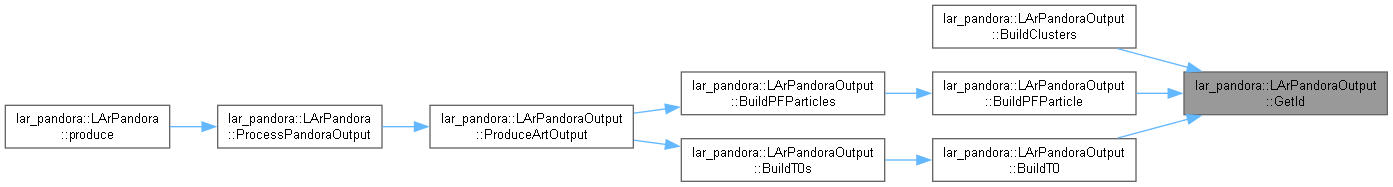

static size_t	GetId (const T const pT, const std::list< const T > &tList)
	Find the index of an input object in an input list. Throw an exception if it doesn't exist.

template<typename T >
static size_t	GetId (const T const pT, const std::vector< const T > &tVector)
	Find the index of an input object in an input vector. Throw an exception if it doesn't exist.

static void	GetPandoraToArtHitMap (const pandora::ClusterList &clusterList, const pandora::CaloHitList &threeDHitList, const IdToHitMap &idToHitMap, CaloHitToArtHitMap &pandoraHitToArtHitMap)
	Collect all 2D and 3D hits that were used / produced in the reconstruction and map them to their corresponding ART hit.

static art::Ptr< recob::Hit >	GetHit (const IdToHitMap &idToHitMap, const pandora::CaloHit *const pCaloHit)
	Look up ART hit from an input Pandora hit.

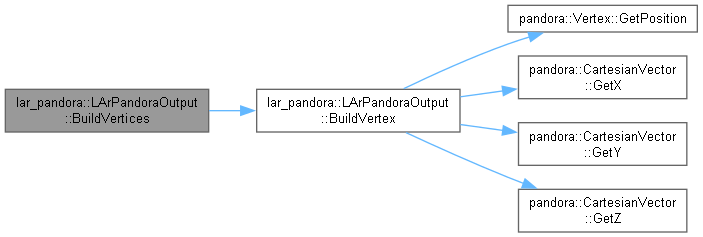

static void	BuildVertices (const pandora::VertexVector &vertexVector, VertexCollection &outputVertices)
	Convert pandora vertices to ART vertices and add them to the output vector.

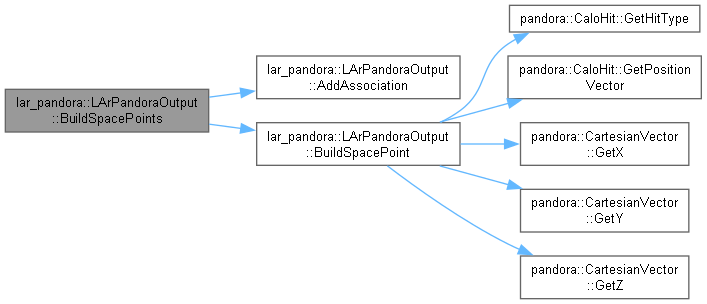

static void	BuildSpacePoints (const art::Event &event, const std::string &instanceLabel, const pandora::CaloHitList &threeDHitList, const CaloHitToArtHitMap &pandoraHitToArtHitMap, SpacePointCollection &outputSpacePoints, SpacePointToHitCollection &outputSpacePointsToHits)
	Convert pandora 3D hits to ART spacepoints and add them to the output vector Create the associations between spacepoints and hits.

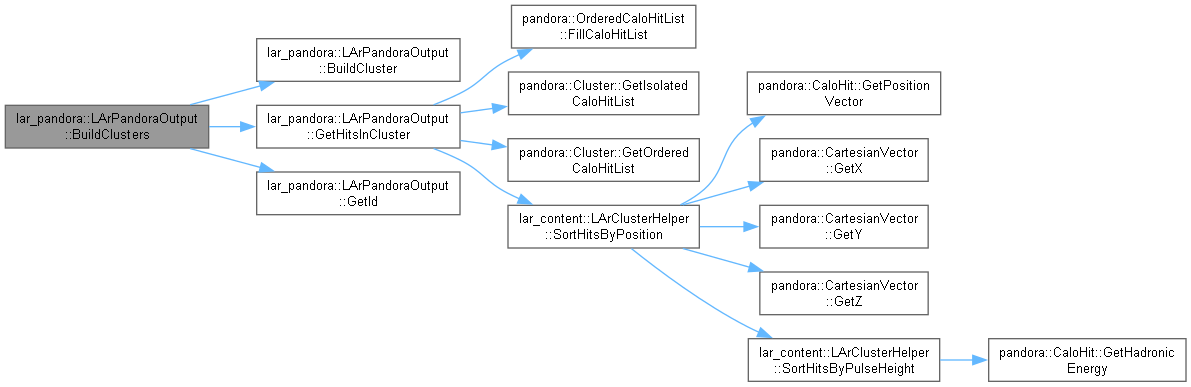

static void	BuildClusters (const art::Event &event, const std::string &instanceLabel, const pandora::ClusterList &clusterList, const CaloHitToArtHitMap &pandoraHitToArtHitMap, const IdToIdVectorMap &pfoToClustersMap, ClusterCollection &outputClusters, ClusterToHitCollection &outputClustersToHits, IdToIdVectorMap &pfoToArtClustersMap)
	Convert pandora 2D clusters to ART clusters and add them to the output vector Create the associations between clusters and hits. For multiple drift volumes, each pandora cluster can correspond to multiple ART clusters.

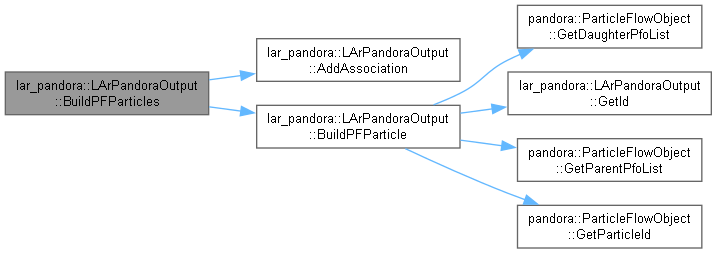

static void	BuildPFParticles (const art::Event &event, const std::string &instanceLabel, const pandora::PfoVector &pfoVector, const IdToIdVectorMap &pfoToVerticesMap, const IdToIdVectorMap &pfoToThreeDHitsMap, const IdToIdVectorMap &pfoToArtClustersMap, PFParticleCollection &outputParticles, PFParticleToVertexCollection &outputParticlesToVertices, PFParticleToSpacePointCollection &outputParticlesToSpacePoints, PFParticleToClusterCollection &outputParticlesToClusters)
	Convert between pfos and PFParticles and add them to the output vector Create the associations between PFParticle and vertices, spacepoints and clusters.

static void	AssociateAdditionalVertices (const art::Event &event, const std::string &instanceLabel, const pandora::PfoVector &pfoVector, const IdToIdVectorMap &pfoToVerticesMap, PFParticleToVertexCollection &outputParticlesToVertices)
	Convert Create the associations between pre-existing PFParticle and additional vertices.

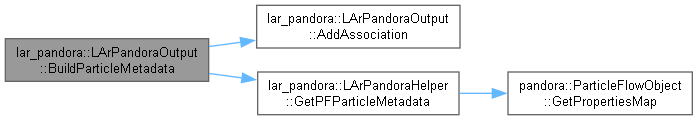

static void	BuildParticleMetadata (const art::Event &event, const std::string &instanceLabel, const pandora::PfoVector &pfoVector, PFParticleMetadataCollection &outputParticleMetadata, PFParticleToMetadataCollection &outputParticlesToMetadata)
	Build metadata objects from a list of input pfos.

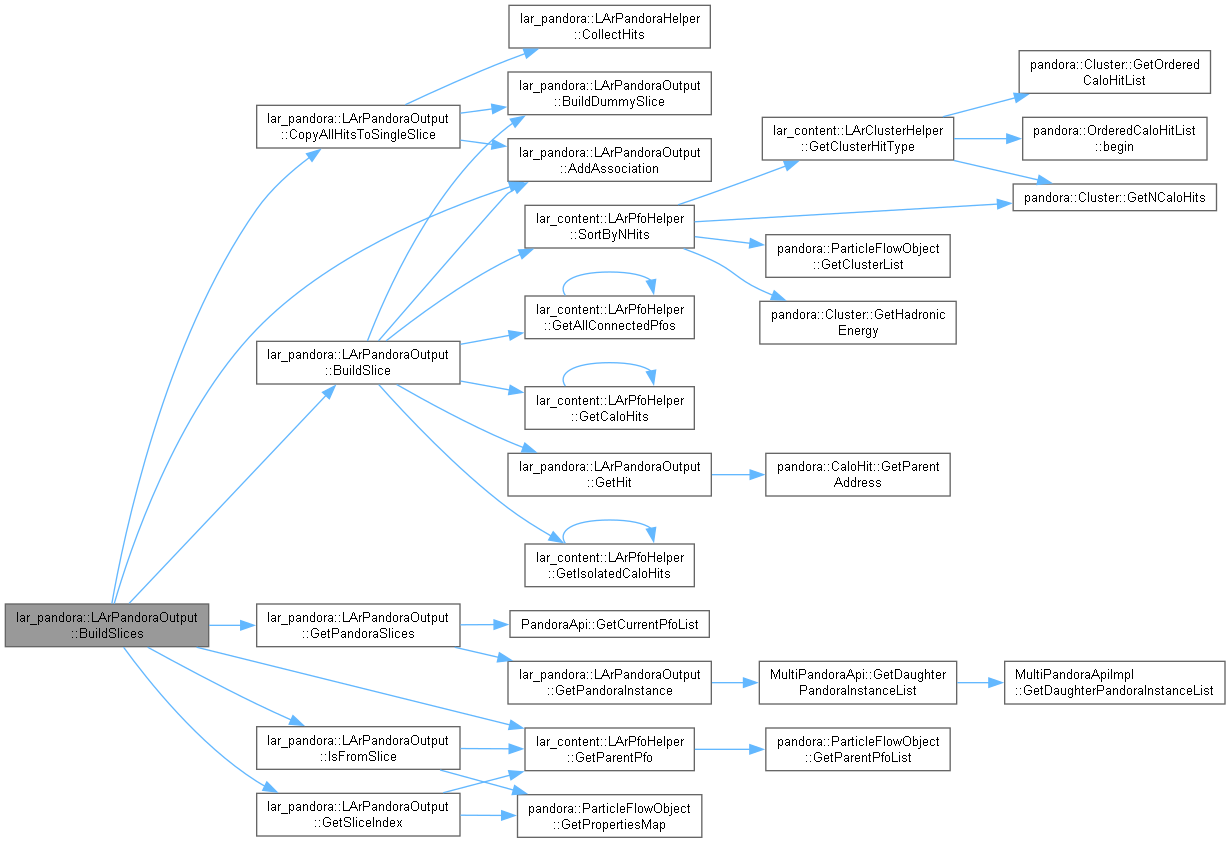

static void	BuildSlices (const Settings &settings, const pandora::Pandora *const pPrimaryPandora, const art::Event &event, const std::string &instanceLabel, const pandora::PfoVector &pfoVector, const IdToHitMap &idToHitMap, SliceCollection &outputSlices, PFParticleToSliceCollection &outputParticlesToSlices, SliceToHitCollection &outputSlicesToHits)
	Build slices - collections of hits which each describe a single particle hierarchy.

static unsigned int	BuildDummySlice (SliceCollection &outputSlices)
	Build a new slice object with dummy information.

static void	CopyAllHitsToSingleSlice (const Settings &settings, const art::Event &event, const std::string &instanceLabel, const pandora::PfoVector &pfoVector, const IdToHitMap &idToHitMap, SliceCollection &outputSlices, PFParticleToSliceCollection &outputParticlesToSlices, SliceToHitCollection &outputSlicesToHits)
	Ouput a single slice containing all of the input hits.

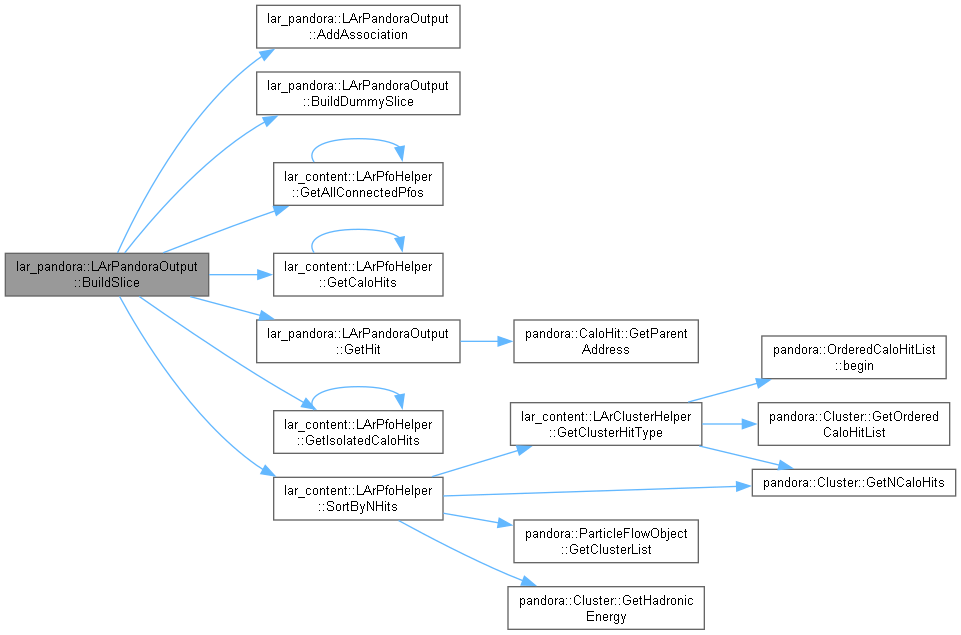

static unsigned int	BuildSlice (const pandora::ParticleFlowObject *const pParentPfo, const art::Event &event, const std::string &instanceLabel, const IdToHitMap &idToHitMap, SliceCollection &outputSlices, SliceToHitCollection &outputSlicesToHits)
	Build a new slice object from a PFO, this can be a top-level parent in a hierarchy or a "slice PFO" from the slicing instance.

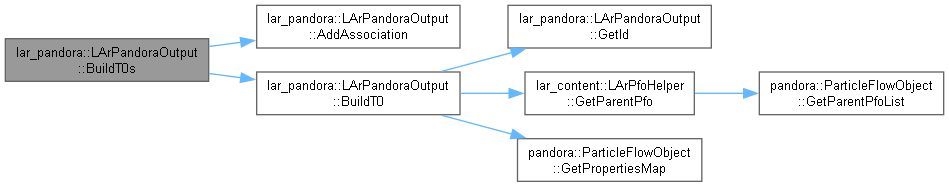

static void	BuildT0s (const art::Event &event, const std::string &instanceLabel, const pandora::PfoVector &pfoVector, T0Collection &outputT0s, PFParticleToT0Collection &outputParticlesToT0s)
	Calculate the T0 of each pfos and add them to the output vector Create the associations between PFParticle and T0s.

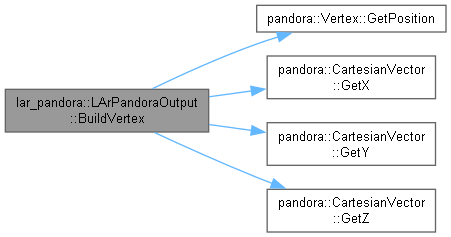

static recob::Vertex	BuildVertex (const pandora::Vertex *const pVertex, const size_t vertexId)
	Convert from a pandora vertex to an ART vertex.

static recob::SpacePoint	BuildSpacePoint (const pandora::CaloHit *const pCaloHit, const size_t spacePointId)
	Convert from a pandora 3D hit to an ART spacepoint.

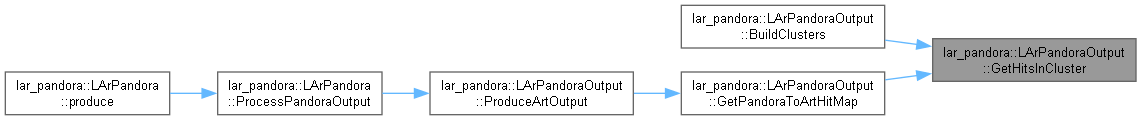

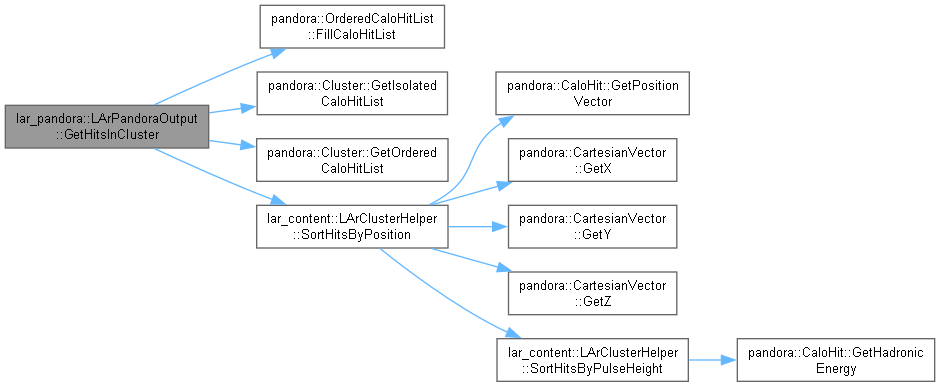

static void	GetHitsInCluster (const pandora::Cluster *const pCluster, pandora::CaloHitVector &sortedHits)
	Collect a sorted list of all 2D hits in a cluster.

static std::vector< recob::Cluster >	BuildClusters (util::GeometryUtilities const &gser, const pandora::Cluster *const pCluster, const pandora::ClusterList &clusterList, const CaloHitToArtHitMap &pandoraHitToArtHitMap, IdToIdVectorMap &pandoraClusterToArtClustersMap, std::vector< HitVector > &hitVectors, size_t &nextId, cluster::ClusterParamsAlgBase &algo)
	Convert from a pandora 2D cluster to a vector of ART clusters (produce multiple if the cluster is split over drift volumes)

static recob::Cluster	BuildCluster (util::GeometryUtilities const &gser, const size_t id, const HitVector &hitVector, const HitList &isolatedHits, cluster::ClusterParamsAlgBase &algo)
	Build an ART cluster from an input vector of ART hits.

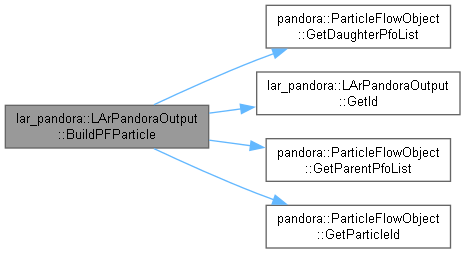

static recob::PFParticle	BuildPFParticle (const pandora::ParticleFlowObject *const pPfo, const size_t pfoId, const pandora::PfoVector &pfoVector)
	Convert from a pfo to and ART PFParticle.

static bool	BuildT0 (const art::Event &event, const pandora::ParticleFlowObject *const pPfo, const pandora::PfoVector &pfoVector, size_t &nextId, anab::T0 &t0)
	If required, build a T0 for the input pfo.

template<typename A , typename B >
static void	AddAssociation (const art::Event &event, const std::string &instanceLabel, const size_t idA, const size_t idB, std::unique_ptr< art::Assns< A, B > > &association)
	Add an association between objects with two given ids.

template<typename A , typename B >
static void	AddAssociation (const art::Event &event, const std::string &instanceLabel, const size_t idA, const IdToIdVectorMap &aToBMap, std::unique_ptr< art::Assns< A, B > > &association)
	Add associations between input objects.

template<typename A , typename B >
static void	AddAssociation (const art::Event &event, const std::string &instanceLabel, const size_t idA, const std::vector< art::Ptr< B > > &bVector, std::unique_ptr< art::Assns< A, B > > &association)
	Add associations between input objects.

Detailed Description

Definition at line 46 of file LArPandoraOutput.h.

Member Typedef Documentation

◆ CaloHitToArtHitMap

typedef std::map<const pandora::CaloHit*, art::Ptr<recob::Hit> > lar_pandora::LArPandoraOutput::CaloHitToArtHitMap

Definition at line 50 of file LArPandoraOutput.h.

◆ ClusterCollection

typedef std::unique_ptr<std::vector<recob::Cluster> > lar_pandora::LArPandoraOutput::ClusterCollection

Definition at line 54 of file LArPandoraOutput.h.

◆ ClusterToHitCollection

typedef std::unique_ptr<art::Assns<recob::Cluster, recob::Hit> > lar_pandora::LArPandoraOutput::ClusterToHitCollection

Definition at line 73 of file LArPandoraOutput.h.

◆ IdToIdVectorMap

typedef std::map<size_t, IdVector> lar_pandora::LArPandoraOutput::IdToIdVectorMap

Definition at line 49 of file LArPandoraOutput.h.

◆ IdVector

typedef std::vector<size_t> lar_pandora::LArPandoraOutput::IdVector

Definition at line 48 of file LArPandoraOutput.h.

◆ PFParticleCollection

typedef std::unique_ptr<std::vector<recob::PFParticle> > lar_pandora::LArPandoraOutput::PFParticleCollection

Definition at line 52 of file LArPandoraOutput.h.

◆ PFParticleMetadataCollection

typedef std::unique_ptr<std::vector<larpandoraobj::PFParticleMetadata> > lar_pandora::LArPandoraOutput::PFParticleMetadataCollection

Definition at line 58 of file LArPandoraOutput.h.

◆ PFParticleToClusterCollection

typedef std::unique_ptr<art::Assns<recob::PFParticle, recob::Cluster> > lar_pandora::LArPandoraOutput::PFParticleToClusterCollection

Definition at line 66 of file LArPandoraOutput.h.

◆ PFParticleToMetadataCollection

typedef std::unique_ptr<art::Assns<recob::PFParticle, larpandoraobj::PFParticleMetadata> > lar_pandora::LArPandoraOutput::PFParticleToMetadataCollection

Definition at line 62 of file LArPandoraOutput.h.

◆ PFParticleToSliceCollection

typedef std::unique_ptr<art::Assns<recob::PFParticle, recob::Slice> > lar_pandora::LArPandoraOutput::PFParticleToSliceCollection

Definition at line 71 of file LArPandoraOutput.h.

◆ PFParticleToSpacePointCollection

typedef std::unique_ptr<art::Assns<recob::PFParticle, recob::SpacePoint> > lar_pandora::LArPandoraOutput::PFParticleToSpacePointCollection

Definition at line 64 of file LArPandoraOutput.h.

◆ PFParticleToT0Collection

typedef std::unique_ptr<art::Assns<recob::PFParticle, anab::T0> > lar_pandora::LArPandoraOutput::PFParticleToT0Collection

Definition at line 69 of file LArPandoraOutput.h.

◆ PFParticleToVertexCollection

typedef std::unique_ptr<art::Assns<recob::PFParticle, recob::Vertex> > lar_pandora::LArPandoraOutput::PFParticleToVertexCollection

Definition at line 68 of file LArPandoraOutput.h.

◆ SliceCollection

typedef std::unique_ptr<std::vector<recob::Slice> > lar_pandora::LArPandoraOutput::SliceCollection

Definition at line 59 of file LArPandoraOutput.h.

◆ SliceToHitCollection

typedef std::unique_ptr<art::Assns<recob::Slice, recob::Hit> > lar_pandora::LArPandoraOutput::SliceToHitCollection

Definition at line 75 of file LArPandoraOutput.h.

◆ SpacePointCollection

typedef std::unique_ptr<std::vector<recob::SpacePoint> > lar_pandora::LArPandoraOutput::SpacePointCollection

Definition at line 55 of file LArPandoraOutput.h.

◆ SpacePointToHitCollection

typedef std::unique_ptr<art::Assns<recob::SpacePoint, recob::Hit> > lar_pandora::LArPandoraOutput::SpacePointToHitCollection

Definition at line 74 of file LArPandoraOutput.h.

◆ T0Collection

typedef std::unique_ptr<std::vector<anab::T0> > lar_pandora::LArPandoraOutput::T0Collection

Definition at line 56 of file LArPandoraOutput.h.

◆ VertexCollection

typedef std::unique_ptr<std::vector<recob::Vertex> > lar_pandora::LArPandoraOutput::VertexCollection

Definition at line 53 of file LArPandoraOutput.h.

Member Function Documentation

◆ AddAssociation() [1/3]

template<typename A , typename B >

void lar_pandora::LArPandoraOutput::AddAssociation	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const size_t	idA,
		const IdToIdVectorMap &	aToBMap,
		std::unique_ptr< art::Assns< A, B > > &	association
	)

inlinestatic

Add associations between input objects.

Parameters

event	the ART event
idA	the id of an object of type A
aToBMap	the input mapping from IDs of objects of type A to IDs of objects of type B to associate
association	the output association to update

Definition at line 671 of file LArPandoraOutput.h.

◆ AddAssociation() [2/3]

template<typename A , typename B >

void lar_pandora::LArPandoraOutput::AddAssociation	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const size_t	idA,
		const size_t	idB,
		std::unique_ptr< art::Assns< A, B > > &	association
	)

inlinestatic

Add an association between objects with two given ids.

Parameters

event	the ART event
idA	the id of an object of type A
idB	the id of an object of type B to associate to the first object
association	the output association to update

Definition at line 653 of file LArPandoraOutput.h.

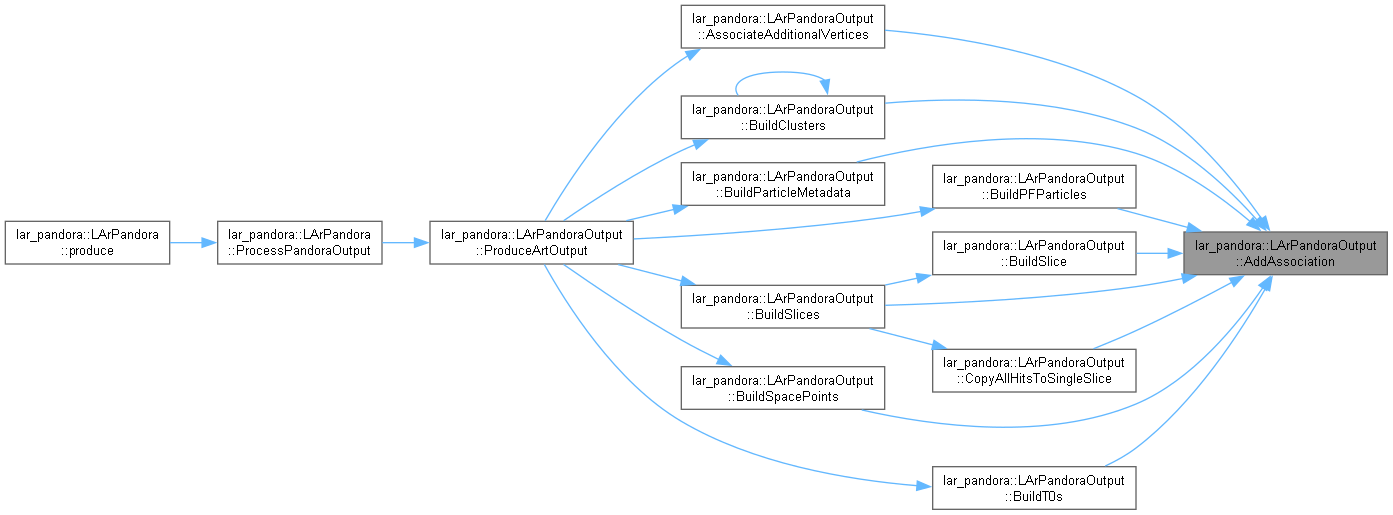

Here is the caller graph for this function:

◆ AddAssociation() [3/3]

template<typename A , typename B >

void lar_pandora::LArPandoraOutput::AddAssociation	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const size_t	idA,
		const std::vector< art::Ptr< B > > &	bVector,
		std::unique_ptr< art::Assns< A, B > > &	association
	)

inlinestatic

Add associations between input objects.

Parameters

event	the ART event
idA	the id of an object of type A
bVector	the input vector of IDs of objects of type B to associate
association	the output association to update

Definition at line 695 of file LArPandoraOutput.h.

◆ AssociateAdditionalVertices()

void lar_pandora::LArPandoraOutput::AssociateAdditionalVertices	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const pandora::PfoVector &	pfoVector,
		const IdToIdVectorMap &	pfoToVerticesMap,
		PFParticleToVertexCollection &	outputParticlesToVertices
	)

static

Convert Create the associations between pre-existing PFParticle and additional vertices.

Parameters

event	the art event
instanceLabel	instance label
pfoVector	the input list of pfos to convert
pfoToVerticesMap	the input mapping from pfo ID to vertex IDs
outputParticlesToVertices	the output associations between PFParticles and vertices

Definition at line 713 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildCluster()

recob::Cluster lar_pandora::LArPandoraOutput::BuildCluster	(	util::GeometryUtilities const &	gser,
		const size_t	id,
		const HitVector &	hitVector,
		const HitList &	isolatedHits,
		cluster::ClusterParamsAlgBase &	algo
	)

static

Build an ART cluster from an input vector of ART hits.

Parameters

id	the id code for the cluster
hitVector	the input vector of hits
isolatedHits	the input list of isolated hits
algo	algorithm set to fill cluster members

Returns: the ART cluster

If you don't know which algorithm to pick, StandardClusterParamsAlg is a good default. The hits that are isolated (that is, present in isolatedHits) are not fed to the cluster parameter algorithms.

Definition at line 1049 of file LArPandoraOutput.cxx.

Here is the caller graph for this function:

◆ BuildClusters() [1/2]

void lar_pandora::LArPandoraOutput::BuildClusters	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const pandora::ClusterList &	clusterList,
		const CaloHitToArtHitMap &	pandoraHitToArtHitMap,
		const IdToIdVectorMap &	pfoToClustersMap,
		ClusterCollection &	outputClusters,
		ClusterToHitCollection &	outputClustersToHits,
		IdToIdVectorMap &	pfoToArtClustersMap
	)

static

Convert pandora 2D clusters to ART clusters and add them to the output vector Create the associations between clusters and hits. For multiple drift volumes, each pandora cluster can correspond to multiple ART clusters.

Parameters

event	the art event
clusterList	the input list of 2D pandora clusters to convert
pandoraHitToArtHitMap	the input mapping from pandora hits to ART hits
pfoToClustersMap	the input mapping from pfo ID to cluster IDs
outputClusters	the output vector of clusters
outputClustersToHits	the output associations between clusters and hits
pfoToArtClustersMap	the output mapping from pfo ID to art cluster ID

Definition at line 612 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildClusters() [2/2]

std::vector< recob::Cluster > lar_pandora::LArPandoraOutput::BuildClusters	(	util::GeometryUtilities const &	gser,
		const pandora::Cluster *const	pCluster,
		const pandora::ClusterList &	clusterList,
		const CaloHitToArtHitMap &	pandoraHitToArtHitMap,
		IdToIdVectorMap &	pandoraClusterToArtClustersMap,
		std::vector< HitVector > &	hitVectors,
		size_t &	nextId,
		cluster::ClusterParamsAlgBase &	algo
	)

static

Convert from a pandora 2D cluster to a vector of ART clusters (produce multiple if the cluster is split over drift volumes)

Parameters

pCluster	the input cluster
clusterList	the input list of clusters
pandoraHitToArtHitMap	the input mapping from pandora hits to ART hits
pandoraClusterToArtClustersMap	output mapping from pandora cluster ID to art cluster IDs
hitVectors	the output vectors of hits for each cluster produced used to produce associations
algo	algorithm set to fill cluster members
the	vector of ART clusters

Definition at line 990 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

◆ BuildDummySlice()

unsigned int lar_pandora::LArPandoraOutput::BuildDummySlice ( SliceCollection & outputSlices )

static

Build a new slice object with dummy information.

Parameters

outputSlices the output collection of slices to populate

Definition at line 829 of file LArPandoraOutput.cxx.

Here is the caller graph for this function:

◆ BuildParticleMetadata()

void lar_pandora::LArPandoraOutput::BuildParticleMetadata	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const pandora::PfoVector &	pfoVector,
		PFParticleMetadataCollection &	outputParticleMetadata,
		PFParticleToMetadataCollection &	outputParticlesToMetadata
	)

static

Build metadata objects from a list of input pfos.

Parameters

event	the art event
pfoVector	the input list of pfos
outputParticleMetadata	the output vector of PFParticleMetadata
outputParticlesToMetadata	the output associations between PFParticles and metadata

Definition at line 729 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildPFParticle()

recob::PFParticle lar_pandora::LArPandoraOutput::BuildPFParticle	(	const pandora::ParticleFlowObject *const	pPfo,
		const size_t	pfoId,
		const pandora::PfoVector &	pfoVector
	)

static

Convert from a pfo to and ART PFParticle.

Parameters

pPfo	the input pfo to convert
pfoId	the id of the pfo to produce
pfoVector	the input list of pfos
the	ART PFParticle

Definition at line 934 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildPFParticles()

void lar_pandora::LArPandoraOutput::BuildPFParticles	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const pandora::PfoVector &	pfoVector,
		const IdToIdVectorMap &	pfoToVerticesMap,
		const IdToIdVectorMap &	pfoToThreeDHitsMap,
		const IdToIdVectorMap &	pfoToArtClustersMap,
		PFParticleCollection &	outputParticles,
		PFParticleToVertexCollection &	outputParticlesToVertices,
		PFParticleToSpacePointCollection &	outputParticlesToSpacePoints,
		PFParticleToClusterCollection &	outputParticlesToClusters
	)

static

Convert between pfos and PFParticles and add them to the output vector Create the associations between PFParticle and vertices, spacepoints and clusters.

Parameters

event	the art event
pfoVector	the input list of pfos to convert
pfoToVerticesMap	the input mapping from pfo ID to vertex IDs
pfoToThreeDHitsMap	the input mapping from pfo ID to 3D hit IDs
pfoToArtClustersMap	the input mapping from pfo ID to ART cluster IDs
outputParticle	the output vector of PFParticles
outputParticlesToVertices	the output associations between PFParticles and vertices
outputParticlesToSpacePoints	the output associations between PFParticles and spacepoints
outputParticlesToClusters	the output associations between PFParticles and clusters

Definition at line 679 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildSlice()

unsigned int lar_pandora::LArPandoraOutput::BuildSlice	(	const pandora::ParticleFlowObject *const	pParentPfo,
		const art::Event &	event,
		const std::string &	instanceLabel,
		const IdToHitMap &	idToHitMap,
		SliceCollection &	outputSlices,
		SliceToHitCollection &	outputSlicesToHits
	)

static

Build a new slice object from a PFO, this can be a top-level parent in a hierarchy or a "slice PFO" from the slicing instance.

Parameters

pParentPfo	the parent pfo from which to build the slice
event	the art event
instanceLabel	the label for the collections to be produced
idToHitMap	input mapping from pandora hit ID to ART hit
outputSlices	the output collection of slices to populate
outputSlicesToHits	the output association from slices to hits

Definition at line 876 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildSlices()

void lar_pandora::LArPandoraOutput::BuildSlices	(	const Settings &	settings,
		const pandora::Pandora *const	pPrimaryPandora,
		const art::Event &	event,
		const std::string &	instanceLabel,
		const pandora::PfoVector &	pfoVector,
		const IdToHitMap &	idToHitMap,
		SliceCollection &	outputSlices,
		PFParticleToSliceCollection &	outputParticlesToSlices,
		SliceToHitCollection &	outputSlicesToHits
	)

static

Build slices - collections of hits which each describe a single particle hierarchy.

Parameters

settings	the settings
pPrimaryPandora	the primary pandora instance
event	the art event
instanceLabel	the label for the collections to be produced
pfoVector	the input vector of all pfos to be output
idToHitMap	input mapping from pandora hit ID to ART hit
outputSlices	the output collection of slices to populate
outputParticlesToSlices	the output association from particles to slices
outputSlicesToHits	the output association from slices to hits

Definition at line 749 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildSpacePoint()

recob::SpacePoint lar_pandora::LArPandoraOutput::BuildSpacePoint	(	const pandora::CaloHit *const	pCaloHit,
		const size_t	spacePointId
	)

static

Convert from a pandora 3D hit to an ART spacepoint.

Parameters

pCaloHit	the input hit
spacePointId	the id of the space-point to produce
the	ART spacepoint

Definition at line 1132 of file LArPandoraOutput.cxx.

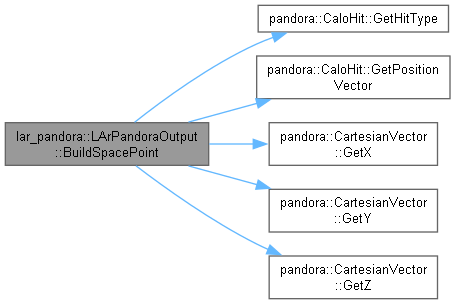

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildSpacePoints()

void lar_pandora::LArPandoraOutput::BuildSpacePoints	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const pandora::CaloHitList &	threeDHitList,
		const CaloHitToArtHitMap &	pandoraHitToArtHitMap,
		SpacePointCollection &	outputSpacePoints,
		SpacePointToHitCollection &	outputSpacePointsToHits
	)

static

Convert pandora 3D hits to ART spacepoints and add them to the output vector Create the associations between spacepoints and hits.

Parameters

event	the art event
threeDHitList	the input list of 3D hits to convert
pandoraHitToArtHitMap	the input mapping from pandora hits to ART hits
outputSpacePoints	the output vector of spacepoints
outputSpacePointsToHits	the output associations between spacepoints and hits

Definition at line 586 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildT0()

bool lar_pandora::LArPandoraOutput::BuildT0	(	const art::Event &	event,
		const pandora::ParticleFlowObject *const	pPfo,
		const pandora::PfoVector &	pfoVector,
		size_t &	nextId,
		anab::T0 &	t0
	)

static

If required, build a T0 for the input pfo.

Parameters

event	the ART event
pPfo	the input pfo
pfoVector	the input list of pfos
nextId	the ID of the T0 - will be incremented if the t0 was produced
t0	the output T0

Returns: if a T0 was produced (calculated from the stitching hit shift distance)

Definition at line 1151 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildT0s()

void lar_pandora::LArPandoraOutput::BuildT0s	(	const art::Event &	event,
		const std::string &	instanceLabel,
		const pandora::PfoVector &	pfoVector,
		T0Collection &	outputT0s,
		PFParticleToT0Collection &	outputParticlesToT0s
	)

static

Calculate the T0 of each pfos and add them to the output vector Create the associations between PFParticle and T0s.

Parameters

event	the art event
instanceLabel	the label for the collections to be produced
pfoVector	the input list of pfos
outputT0s	the output vector of T0s
outputParticlesToT0s	the output associations between PFParticles and T0s

Definition at line 913 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildVertex()

recob::Vertex lar_pandora::LArPandoraOutput::BuildVertex	(	const pandora::Vertex *const	pVertex,
		const size_t	vertexId
	)

static

Convert from a pandora vertex to an ART vertex.

Parameters

pVertex	the input vertex
vertexId	the id of the vertex to produce
the	ART vertex

Definition at line 960 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildVertices()

void lar_pandora::LArPandoraOutput::BuildVertices	(	const pandora::VertexVector &	vertexVector,
		VertexCollection &	outputVertices
	)

static

Convert pandora vertices to ART vertices and add them to the output vector.

Parameters

vertexVector	the input list of pandora vertices
outputVertices	the output vector of ART vertices

Definition at line 577 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Collect3DHits() [1/2]

void lar_pandora::LArPandoraOutput::Collect3DHits	(	const pandora::ParticleFlowObject *const	pPfo,
		pandora::CaloHitVector &	caloHits
	)

static

Collect a sorted vector of all 3D hits in the input pfo.

Parameters

pPfo	the input pfo
caloHits	the sorted output vector of 3D hits

Definition at line 489 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Collect3DHits() [2/2]

pandora::CaloHitList lar_pandora::LArPandoraOutput::Collect3DHits	(	const pandora::PfoVector &	pfoVector,
		IdToIdVectorMap &	pfoToThreeDHitsMap
	)

static

Collect a sorted list of all 3D hits contained in the input pfo list Order is guaranteed provided pfoVector is ordered.

Parameters

pfoVector	the input list of pfos
pfoToThreeDHitsMap	the output mapping from pfo ID to 3D hit IDs

Returns: the list of 3D hits collected

Definition at line 457 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

◆ CollectAllPfoOutcomes()

pandora::PfoVector lar_pandora::LArPandoraOutput::CollectAllPfoOutcomes ( const pandora::Pandora *const pPrimaryPandora )

static

Collect the pfos (including all downstream pfos) from the master and daughter pandora instances.

Parameters

pPrimaryPandora address of master pandora instance

Returns: a sorted list of all pfos to convert to ART PFParticles

Definition at line 265 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CollectClusters()

pandora::ClusterList lar_pandora::LArPandoraOutput::CollectClusters	(	const pandora::PfoVector &	pfoVector,
		IdToIdVectorMap &	pfoToClustersMap
	)

static

Collect a sorted list of all 2D clusters contained in the input pfo list Order is guaranteed provided pfoVector is ordered.

Parameters

pfoVector	the input list of pfos
pfoToClustersMap	the output mapping from pfo ID to cluster IDs

Returns: the list of clusters collected

Definition at line 428 of file LArPandoraOutput.cxx.

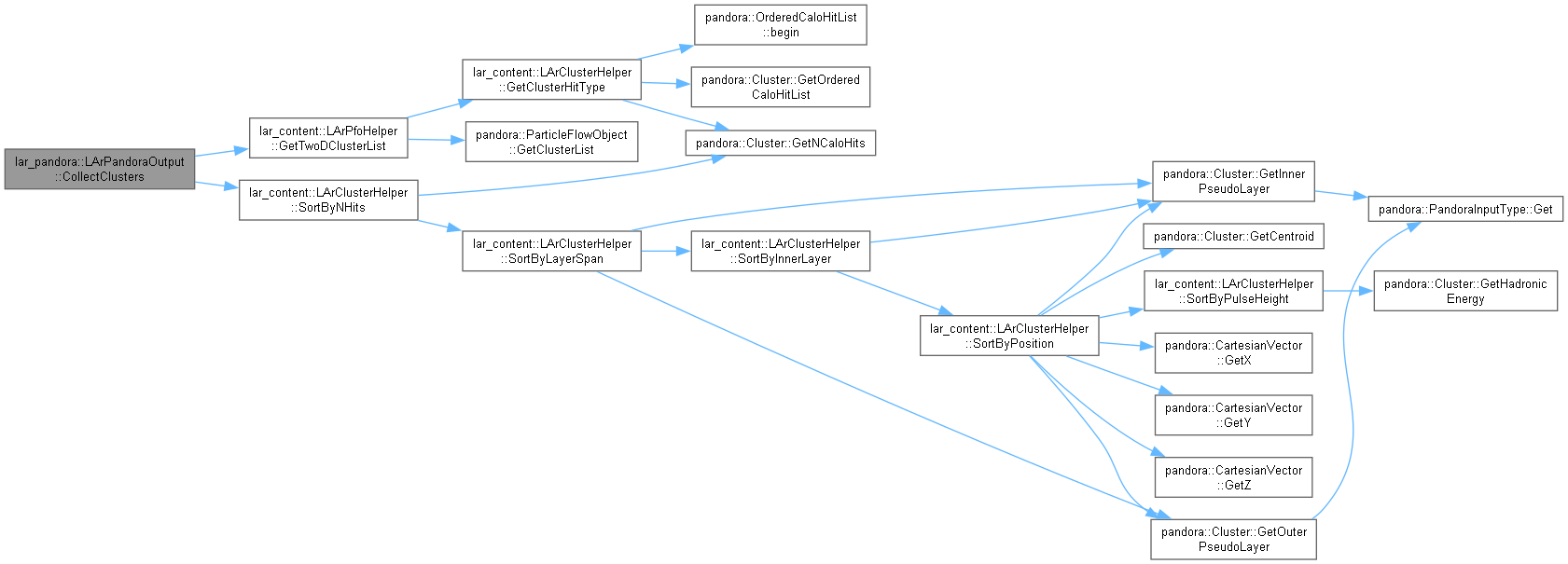

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CollectPfos() [1/2]

pandora::PfoVector lar_pandora::LArPandoraOutput::CollectPfos ( const pandora::Pandora *const pPrimaryPandora )

static

Collect the current pfos (including all downstream pfos) from the master pandora instance.

Parameters

pPrimaryPandora address of master pandora instance

Returns: a sorted list of all pfos to convert to ART PFParticles

Definition at line 360 of file LArPandoraOutput.cxx.

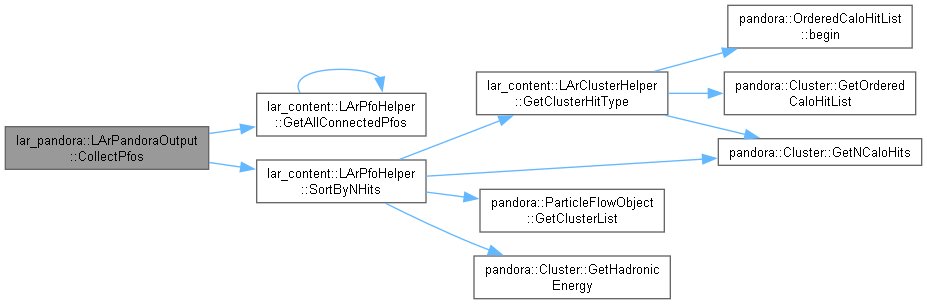

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CollectPfos() [2/2]

void lar_pandora::LArPandoraOutput::CollectPfos	(	const pandora::PfoList &	parentPfoList,
		pandora::PfoVector &	pfoVector
	)

static

Collect a sorted list of all downstream pfos of an input list of parent.

Parameters

parentPfoList	the input list of parent pfos
pfoVector	the sorted output list of all downstream pfos

Definition at line 375 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

◆ CollectVertices()

pandora::VertexVector lar_pandora::LArPandoraOutput::CollectVertices	(	const pandora::PfoVector &	pfoVector,
		IdToIdVectorMap &	pfoToVerticesMap,
		std::function< const pandora::Vertex const(const pandora::ParticleFlowObject const)>	fCriteria
	)

static

Collect all vertices contained in the input pfo list Order is guaranteed provided pfoVector is ordered.

Parameters

pfoVector	the input list of pfos
pfoToVerticesMap	the output mapping from pfo ID to vertex IDs (zero or one)
fCriteria	function to extract vertex from pfo

Returns: the list of vertices collected

Definition at line 391 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CopyAllHitsToSingleSlice()

void lar_pandora::LArPandoraOutput::CopyAllHitsToSingleSlice	(	const Settings &	settings,
		const art::Event &	event,
		const std::string &	instanceLabel,
		const pandora::PfoVector &	pfoVector,
		const IdToHitMap &	idToHitMap,
		SliceCollection &	outputSlices,
		PFParticleToSliceCollection &	outputParticlesToSlices,
		SliceToHitCollection &	outputSlicesToHits
	)

static

Ouput a single slice containing all of the input hits.

Parameters

settings	the settings
event	the art event
instanceLabel	the label for the collections to be produced
pfoVector	the input vector of all pfos to be output
idToHitMap	input mapping from pandora hit ID to ART hit
outputSlices	the output collection of slices to populate
outputParticlesToSlices	the output association from particles to slices
outputSlicesToHits	the output association from slices to hits

Definition at line 845 of file LArPandoraOutput.cxx.

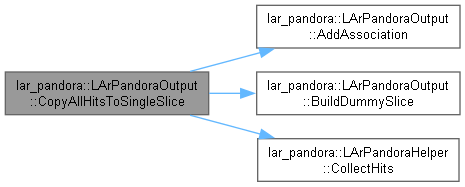

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHit()

art::Ptr< recob::Hit > lar_pandora::LArPandoraOutput::GetHit	(	const IdToHitMap &	idToHitMap,
		const pandora::CaloHit *const	pCaloHit
	)

static

Look up ART hit from an input Pandora hit.

Parameters

idToHitMap	the mapping between Pandora and ART hits
pCaloHit	the input Pandora hit (2D)

Definition at line 545 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

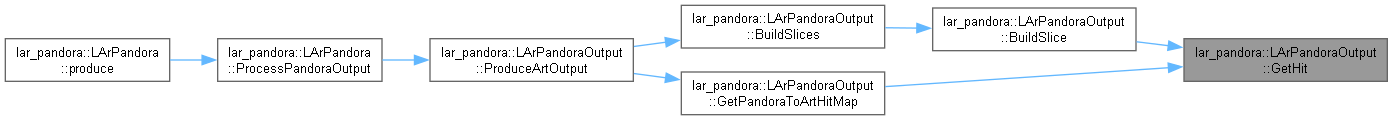

Here is the caller graph for this function:

◆ GetHitsInCluster()

void lar_pandora::LArPandoraOutput::GetHitsInCluster	(	const pandora::Cluster *const	pCluster,
		pandora::CaloHitVector &	sortedHits
	)

static

Collect a sorted list of all 2D hits in a cluster.

Parameters

pCluster	the input cluster
sortedHits	the output vector of sorted 2D hits

Definition at line 970 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetId() [1/2]

template<typename T >

size_t lar_pandora::LArPandoraOutput::GetId	(	const T *const	pT,
		const std::list< const T * > &	tList
	)

inlinestatic

Find the index of an input object in an input list. Throw an exception if it doesn't exist.

Parameters

pT	the input object for which the ID should be found
tList	a list of objects of type pT to query

Returns: the ID of the input object

Definition at line 624 of file LArPandoraOutput.h.

Here is the caller graph for this function:

◆ GetId() [2/2]

template<typename T >

size_t lar_pandora::LArPandoraOutput::GetId	(	const T *const	pT,
		const std::vector< const T * > &	tVector
	)

inlinestatic

Find the index of an input object in an input vector. Throw an exception if it doesn't exist.

Parameters

pT	the input object for which the ID should be found
tVector	a list of objects of type pT to query

Returns: the ID of the input object

Definition at line 638 of file LArPandoraOutput.h.

◆ GetPandoraInstance()

bool lar_pandora::LArPandoraOutput::GetPandoraInstance	(	const pandora::Pandora *const	pPrimaryPandora,
		const std::string &	name,
		const pandora::Pandora *&	pPandoraInstance
	)

static

Get the address of a pandora instance with a given name.

Parameters

pPrimaryPandora	the primary pandora instance
name	the name of the instance to collect
pPandoraInstance	the output address of the pandora instance requested

Returns: if the pandora instance could be found

Definition at line 213 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandoraSlices()

void lar_pandora::LArPandoraOutput::GetPandoraSlices	(	const pandora::Pandora *const	pPrimaryPandora,
		pandora::PfoVector &	slicePfos
	)

static

Get the slice pfos - one pfo per slice.

Parameters

pPrimaryPandora	the primary pandora instance
slicePfos	the output vector of slice pfos

Definition at line 242 of file LArPandoraOutput.cxx.

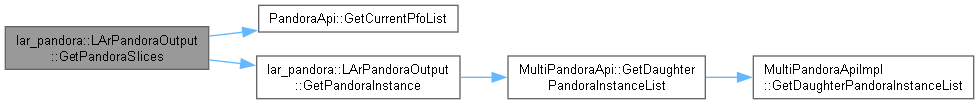

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandoraToArtHitMap()

void lar_pandora::LArPandoraOutput::GetPandoraToArtHitMap	(	const pandora::ClusterList &	clusterList,
		const pandora::CaloHitList &	threeDHitList,
		const IdToHitMap &	idToHitMap,
		CaloHitToArtHitMap &	pandoraHitToArtHitMap
	)

static

Collect all 2D and 3D hits that were used / produced in the reconstruction and map them to their corresponding ART hit.

Parameters

clusterList	input list of all 2D clusters to be output
threeDHitList	input list of all 3D hits to be output (as spacepoints)
idToHitMap	input mapping from pandora hit ID to ART hit
pandoraHitToArtHitMap	output mapping from pandora hit to ART hit

Definition at line 502 of file LArPandoraOutput.cxx.

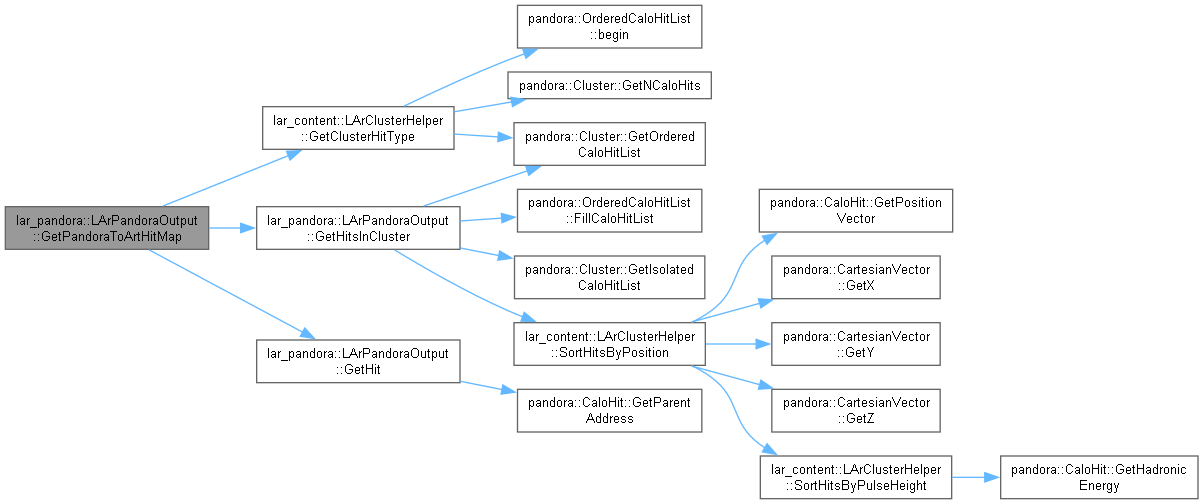

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSliceIndex()

unsigned int lar_pandora::LArPandoraOutput::GetSliceIndex ( const pandora::ParticleFlowObject *const pPfo )

static

Get the index of the slice from which this pfo was produced.

Parameters

pPfo	the input pfo

Returns: the slice index

Definition at line 344 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsClearCosmic()

bool lar_pandora::LArPandoraOutput::IsClearCosmic ( const pandora::ParticleFlowObject *const pPfo )

static

Check if the input pfo is an unambiguous cosmic ray.

Parameters

pPfo	the input pfo

Returns: if the input pfo is a clear cosmic ray

Definition at line 320 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsFromSlice()

bool lar_pandora::LArPandoraOutput::IsFromSlice ( const pandora::ParticleFlowObject *const pPfo )

static

Check if the input pfo is from a slice.

Parameters

pPfo	the input pfo

Returns: if the input pfo is from a slice

Definition at line 334 of file LArPandoraOutput.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProduceArtOutput()

void lar_pandora::LArPandoraOutput::ProduceArtOutput	(	const Settings &	settings,
		const IdToHitMap &	idToHitMap,
		art::Event &	evt
	)

static

Convert the Pandora PFOs into ART clusters and write into ART event.

Parameters

settings	the settings
idToHitMap	the mapping from Pandora hit ID to ART hit
evt	the ART event

Definition at line 41 of file LArPandoraOutput.cxx.

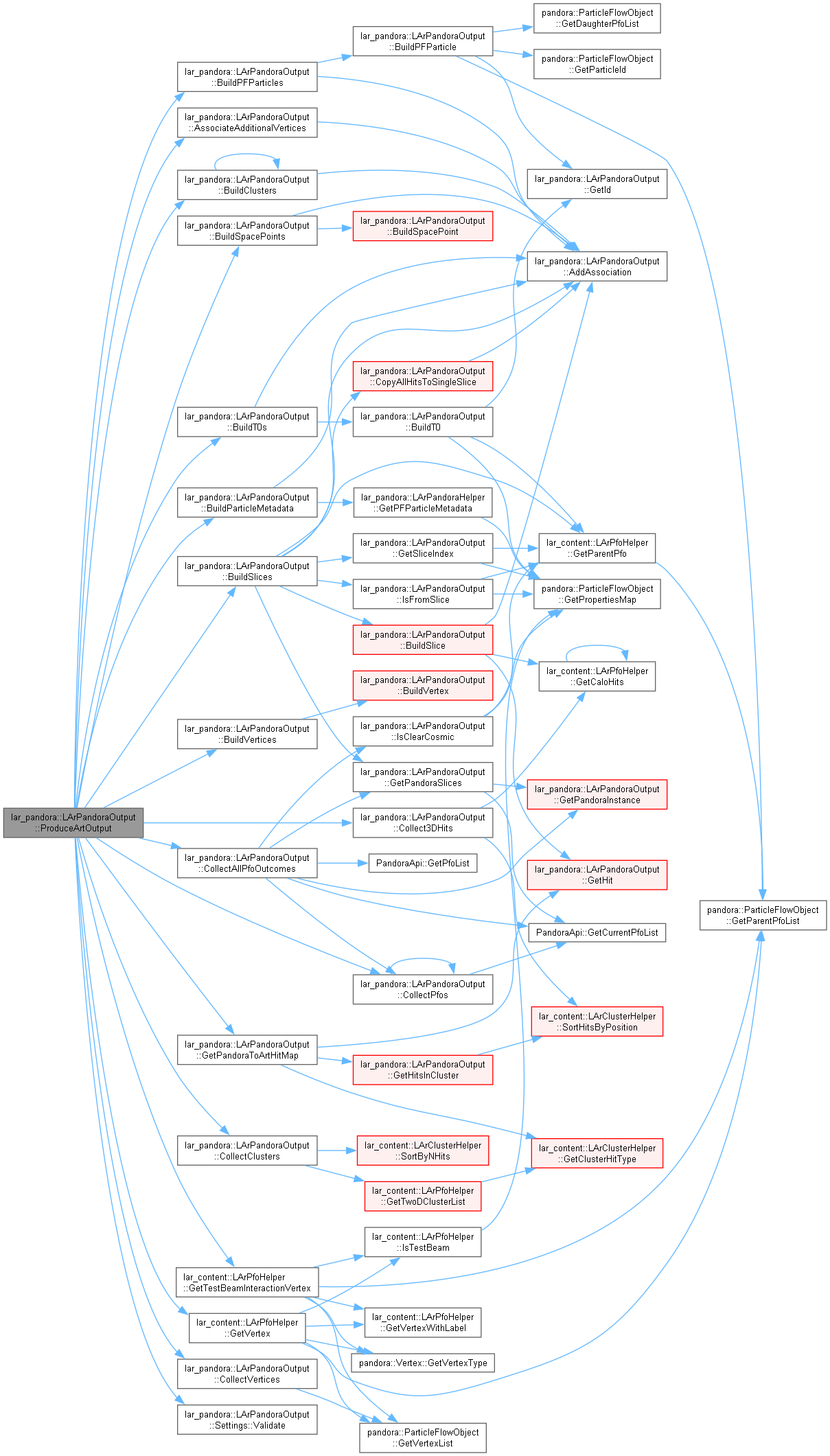

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

larpandora/larpandora/LArPandoraInterface/LArPandoraOutput.h
larpandora/larpandora/LArPandoraInterface/LArPandoraOutput.cxx

Classes

Public Types

Static Public Member Functions

Detailed Description

Member Typedef Documentation

◆ CaloHitToArtHitMap

◆ ClusterCollection

◆ ClusterToHitCollection

◆ IdToIdVectorMap

◆ IdVector

◆ PFParticleCollection

◆ PFParticleMetadataCollection

◆ PFParticleToClusterCollection

◆ PFParticleToMetadataCollection

◆ PFParticleToSliceCollection

◆ PFParticleToSpacePointCollection

◆ PFParticleToT0Collection

◆ PFParticleToVertexCollection

◆ SliceCollection

◆ SliceToHitCollection

◆ SpacePointCollection

◆ SpacePointToHitCollection

◆ T0Collection

◆ VertexCollection

Member Function Documentation

◆ AddAssociation() [1/3]

◆ AddAssociation() [2/3]

◆ AddAssociation() [3/3]

◆ AssociateAdditionalVertices()

◆ BuildCluster()

◆ BuildClusters() [1/2]

◆ BuildClusters() [2/2]

◆ BuildDummySlice()

◆ BuildParticleMetadata()

◆ BuildPFParticle()

◆ BuildPFParticles()

◆ BuildSlice()

◆ BuildSlices()

◆ BuildSpacePoint()

◆ BuildSpacePoints()

◆ BuildT0()

◆ BuildT0s()

◆ BuildVertex()

◆ BuildVertices()

◆ Collect3DHits() [1/2]

◆ Collect3DHits() [2/2]

◆ CollectAllPfoOutcomes()

◆ CollectClusters()

◆ CollectPfos() [1/2]

◆ CollectPfos() [2/2]

◆ CollectVertices()

◆ CopyAllHitsToSingleSlice()

◆ GetHit()

◆ GetHitsInCluster()

◆ GetId() [1/2]

◆ GetId() [2/2]

◆ GetPandoraInstance()

◆ GetPandoraSlices()

◆ GetPandoraToArtHitMap()

◆ GetSliceIndex()

◆ IsClearCosmic()

◆ IsFromSlice()

◆ ProduceArtOutput()
