lar_content::FitSegment Class Reference

FitSegment class. More...

#include "LArTwoDSlidingFitObjects.h"

Public Member Functions
	FitSegment (const int startLayer, const int endLayer, const double startX, const double endX)
	Constructor.
int	GetStartLayer () const
	Get start layer.
int	GetEndLayer () const
	Get end layer.
double	GetMinX () const
	Get the minimum x value.
double	GetMaxX () const
	Get the maximum x value.
bool	IsIncreasingX () const
	Whether the x coordinate increases between the start and end layers.

Private Attributes
int	m_startLayer
	The start layer.
int	m_endLayer
	The end layer.
double	m_minX
	The minimum x value.
double	m_maxX
	The maximum x value.
bool	m_isIncreasingX
	Whether the x coordinate increases between the start and end layers.

Detailed Description

FitSegment class.

Definition at line 234 of file LArTwoDSlidingFitObjects.h.

Constructor & Destructor Documentation

FitSegment()

lar_content::FitSegment::FitSegment ( const int  startLayer, const int  endLayer, const double  startX, const double  endX  )

inline

Constructor.

Parameters

startLayer	the start layer
endLayer	the end layer
startX	the x position at the start layer
endX	the x position at the end layer

Definition at line 464 of file LArTwoDSlidingFitObjects.h.

Member Function Documentation

GetEndLayer()

int lar_content::FitSegment::GetEndLayer ( ) const

inline

Get end layer.

Returns

the end layer

Definition at line 482 of file LArTwoDSlidingFitObjects.h.

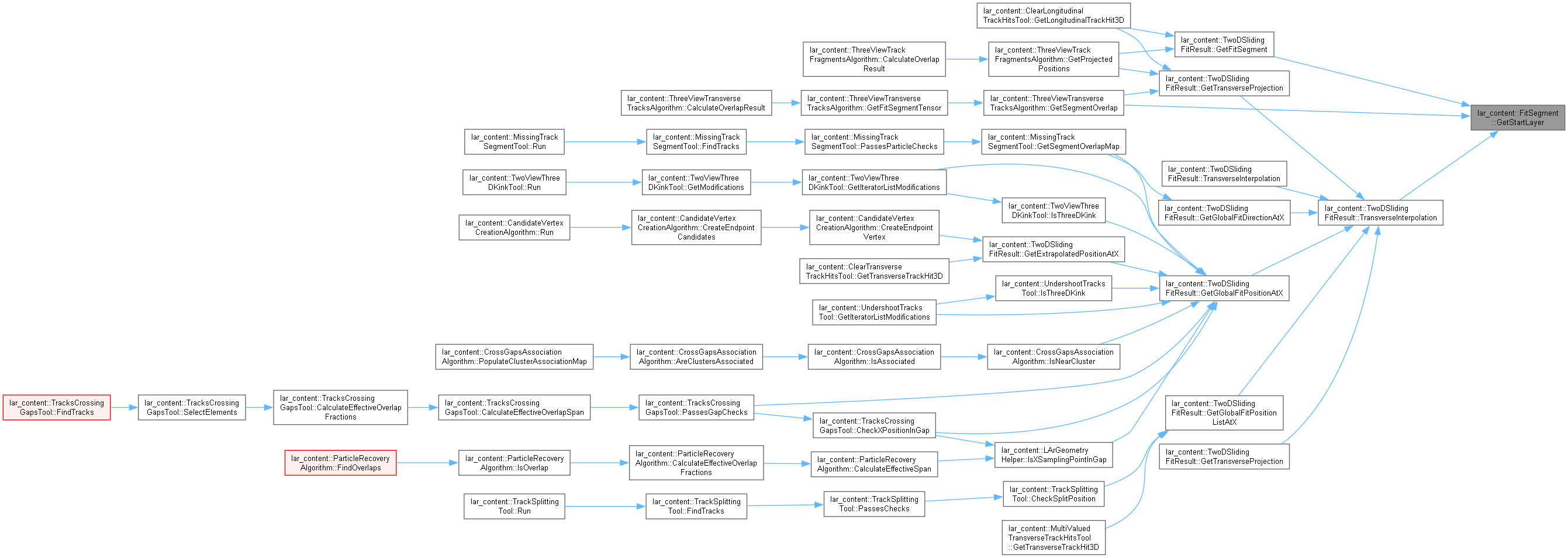

Here is the caller graph for this function:

GetMaxX()

double lar_content::FitSegment::GetMaxX ( ) const

inline

Get the maximum x value.

Returns

the maximum x value

Definition at line 496 of file LArTwoDSlidingFitObjects.h.

Here is the caller graph for this function:

GetMinX()

double lar_content::FitSegment::GetMinX ( ) const

inline

Get the minimum x value.

Returns

the minimum x value

Definition at line 489 of file LArTwoDSlidingFitObjects.h.

Here is the caller graph for this function:

GetStartLayer()

int lar_content::FitSegment::GetStartLayer ( ) const

inline

Get start layer.

Returns

the start layer

Definition at line 475 of file LArTwoDSlidingFitObjects.h.

Here is the caller graph for this function:

IsIncreasingX()

bool lar_content::FitSegment::IsIncreasingX ( ) const

inline

Whether the x coordinate increases between the start and end layers.

Returns

boolean

Definition at line 503 of file LArTwoDSlidingFitObjects.h.

Member Data Documentation

m_endLayer

int lar_content::FitSegment::m_endLayer

private

The end layer.

Definition at line 284 of file LArTwoDSlidingFitObjects.h.

m_isIncreasingX

bool lar_content::FitSegment::m_isIncreasingX

private

Whether the x coordinate increases between the start and end layers.

Definition at line 287 of file LArTwoDSlidingFitObjects.h.

m_maxX

double lar_content::FitSegment::m_maxX

private

The maximum x value.

Definition at line 286 of file LArTwoDSlidingFitObjects.h.

m_minX

double lar_content::FitSegment::m_minX

private

The minimum x value.

Definition at line 285 of file LArTwoDSlidingFitObjects.h.

m_startLayer

int lar_content::FitSegment::m_startLayer

private

The start layer.

Definition at line 283 of file LArTwoDSlidingFitObjects.h.

---

The documentation for this class was generated from the following file:

• LArContent/larpandoracontent/LArObjects/LArTwoDSlidingFitObjects.h
