lar_content::OverlapMatrix< T >::Element Class Reference

Element class. More...

#include "LArOverlapMatrix.h"

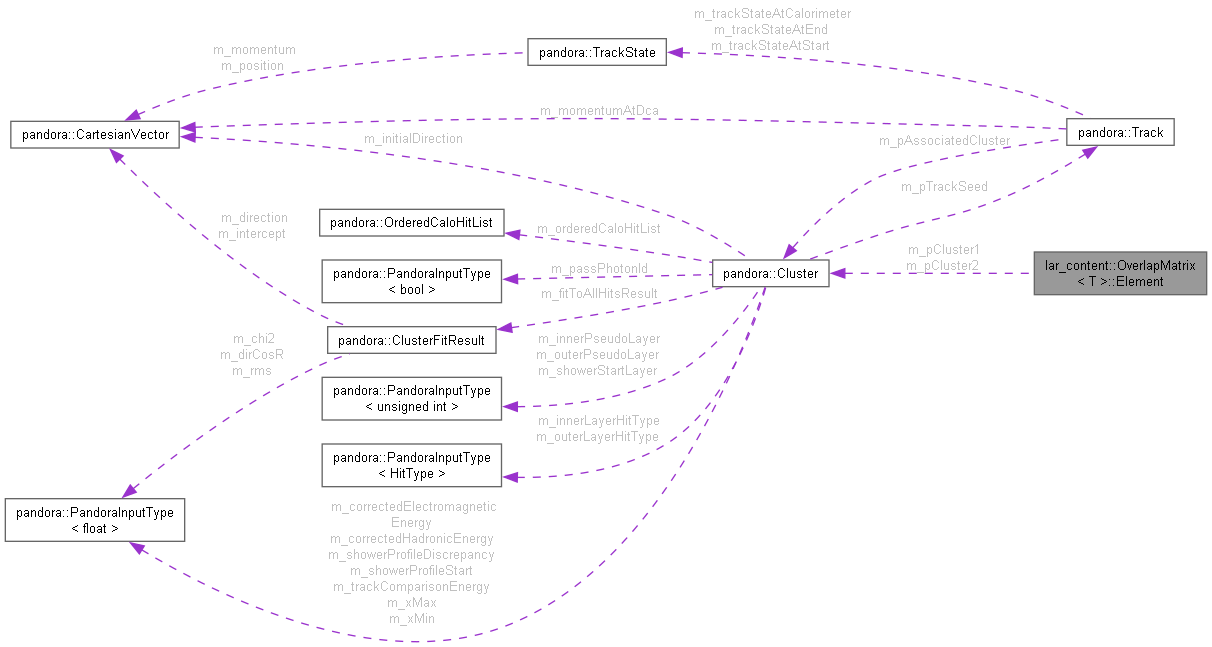

Collaboration diagram for lar_content::OverlapMatrix< T >::Element:

Public Member Functions
	Element (const pandora::Cluster *const pCluster1, const pandora::Cluster *const pCluster2, const OverlapResult &overlapResult)
	Constructor.
const pandora::Cluster *	GetCluster1 () const
	Get the address of cluster 1.
const pandora::Cluster *	GetCluster2 () const
	Get the address of cluster 2.
const OverlapResult &	GetOverlapResult () const
	Get the overlap result.
bool	operator< (const Element &rhs) const
	Element less than operator.

Private Attributes
const pandora::Cluster *	m_pCluster1
	The address of cluster 1.
const pandora::Cluster *	m_pCluster2
	The address of cluster 2.
OverlapResult	m_overlapResult
	The overlap result.

Detailed Description

template<typename T>
class lar_content::OverlapMatrix< T >::Element

Element class.

Definition at line 31 of file LArOverlapMatrix.h.

Constructor & Destructor Documentation

Element()

template<typename T >

lar_content::OverlapMatrix< T >::Element::Element ( const pandora::Cluster *const  pCluster1, const pandora::Cluster *const  pCluster2, const OverlapResult &  overlapResult  )

inline

Constructor.

Parameters

pCluster1	the address of cluster 1
pCluster2	the address of cluster 2
overlapResult	the overlap result

Definition at line 336 of file LArOverlapMatrix.h.

Member Function Documentation

GetCluster1()

template<typename T >

const pandora::Cluster * lar_content::OverlapMatrix< T >::Element::GetCluster1 ( ) const

inline

Get the address of cluster 1.

Returns

address of cluster 1

Definition at line 347 of file LArOverlapMatrix.h.

GetCluster2()

template<typename T >

const pandora::Cluster * lar_content::OverlapMatrix< T >::Element::GetCluster2 ( ) const

inline

Get the address of cluster 2.

Returns

address of cluster 2

Definition at line 355 of file LArOverlapMatrix.h.

GetOverlapResult()

template<typename T >

const OverlapMatrix< T >::OverlapResult & lar_content::OverlapMatrix< T >::Element::GetOverlapResult ( ) const

inline

Get the overlap result.

Returns

the overlap result

Definition at line 363 of file LArOverlapMatrix.h.

Here is the caller graph for this function:

operator<()

template<typename T >

bool lar_content::OverlapMatrix< T >::Element::operator<

(

const Element &

rhs

)

const

Element less than operator.

Parameters

rhs	the element for comparison

Definition at line 371 of file LArOverlapMatrix.h.

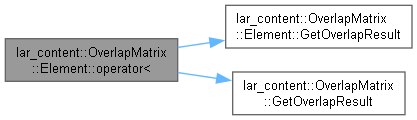

Here is the call graph for this function:

Member Data Documentation

m_overlapResult

template<typename T >

OverlapResult lar_content::OverlapMatrix< T >::Element::m_overlapResult

private

The overlap result.

Definition at line 74 of file LArOverlapMatrix.h.

m_pCluster1

template<typename T >

const pandora::Cluster* lar_content::OverlapMatrix< T >::Element::m_pCluster1

private

The address of cluster 1.

Definition at line 72 of file LArOverlapMatrix.h.

m_pCluster2

template<typename T >

const pandora::Cluster* lar_content::OverlapMatrix< T >::Element::m_pCluster2

private

The address of cluster 2.

Definition at line 73 of file LArOverlapMatrix.h.

---

The documentation for this class was generated from the following file:

• LArContent/larpandoracontent/LArObjects/LArOverlapMatrix.h
