LArClusterHelper class. More...

#include "LArClusterHelper.h"

Public Types
typedef std::set< unsigned int >	UIntSet

Static Public Member Functions

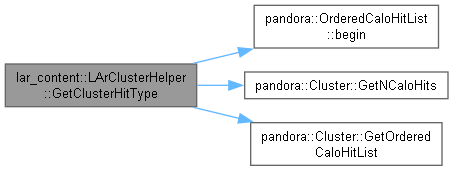

static pandora::HitType	GetClusterHitType (const pandora::Cluster *const pCluster)
	Get the hit type associated with a two dimensional cluster.

static void	GetClustersUVW (const pandora::ClusterList &inputClusters, pandora::ClusterList &clusterListU, pandora::ClusterList &clusterListV, pandora::ClusterList &clusterListW)
	Divide an input cluster list into separate u, v and w lists (exception raised if alternative hit type encountered)

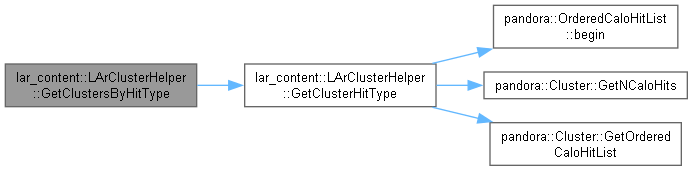

static void	GetClustersByHitType (const pandora::ClusterList &inputClusters, const pandora::HitType hitType, pandora::ClusterList &clusterList)
	Get the subset of clusters, from a provided list, that match the specified hit type.

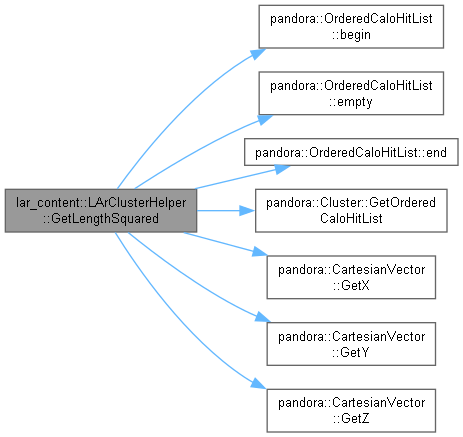

static float	GetLengthSquared (const pandora::Cluster *const pCluster)
	Get length squared of cluster.

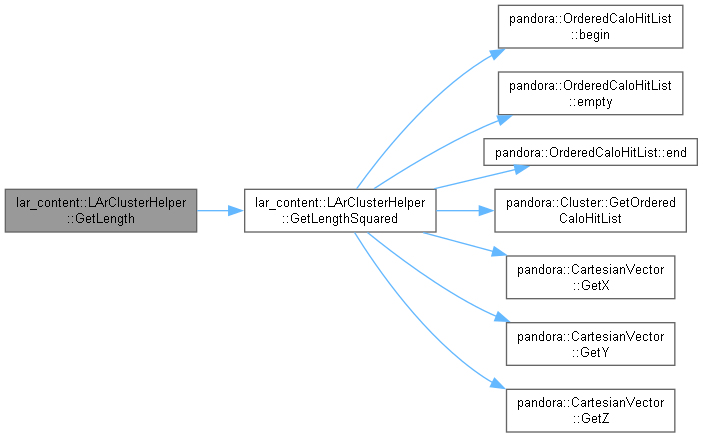

static float	GetLength (const pandora::Cluster *const pCluster)
	Get length of cluster.

static float	GetEnergyFromLength (const pandora::Cluster *const pCluster)
	Get energy of cluster, based on length.

static unsigned int	GetLayerSpan (const pandora::Cluster *const pCluster)
	Get number of layers spanned by cluster (1+Last-First)

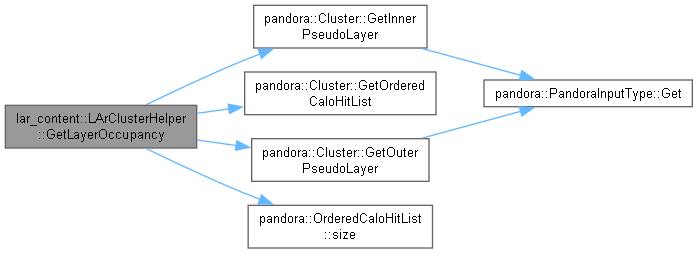

static float	GetLayerOccupancy (const pandora::Cluster *const pCluster)
	Fraction of occupied layers in cluster.

static float	GetLayerOccupancy (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2)
	Fraction of occupied layers in a pair of clusters.

static float	GetClosestDistance (const pandora::ClusterList &clusterList1, const pandora::ClusterList &clusterList2)
	Get closest distance between clusters in a pair of cluster lists.

static float	GetClosestDistance (const pandora::Cluster *const pCluster, const pandora::ClusterList &clusterList)
	Get closest distance between a specified cluster and list of clusters.

static float	GetClosestDistance (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2)
	Get closest distance between a pair of clusters.

static float	GetClosestDistance (const pandora::CartesianVector &position, const pandora::ClusterList &clusterList)
	Get closest distance between a specified position and list of clusters.

static float	GetClosestDistance (const pandora::CartesianVector &position, const pandora::Cluster *const pCluster)
	Get closest distance between a specified position vector and the hits in a specified cluster.

static float	GetClosestDistance (const pandora::CartesianVector &position, const pandora::CaloHitList &caloHitList)
	Get closest distance between a specified position vector and the hits in a specified calo hit list.

static pandora::CartesianVector	GetClosestPosition (const pandora::CartesianVector &position, const pandora::ClusterList &clusterList)
	Get closest position in a list of clusters to a specified input position vector.

static pandora::CartesianVector	GetClosestPosition (const pandora::CartesianVector &position, const pandora::Cluster *const pCluster)
	Get closest position on a cluster to a specified input position vector.

static pandora::CartesianVector	GetClosestPosition (const pandora::CartesianVector &position, const pandora::CaloHitList &caloHitList)
	Get closest position of hits in a given calo hit list to a specified input position vector.

static pandora::CartesianVector	GetClosestPosition (const pandora::CartesianVector &position, const pandora::OrderedCaloHitList &caloHitList)
	Get closest position of hits in a given calo hit list to a specified input position vector.

static void	GetClosestPositions (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2, pandora::CartesianVector &position1, pandora::CartesianVector &position2)
	Get pair of closest positions for a pair of clusters.

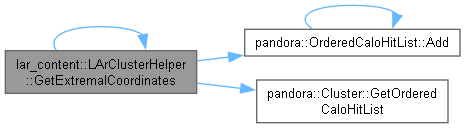

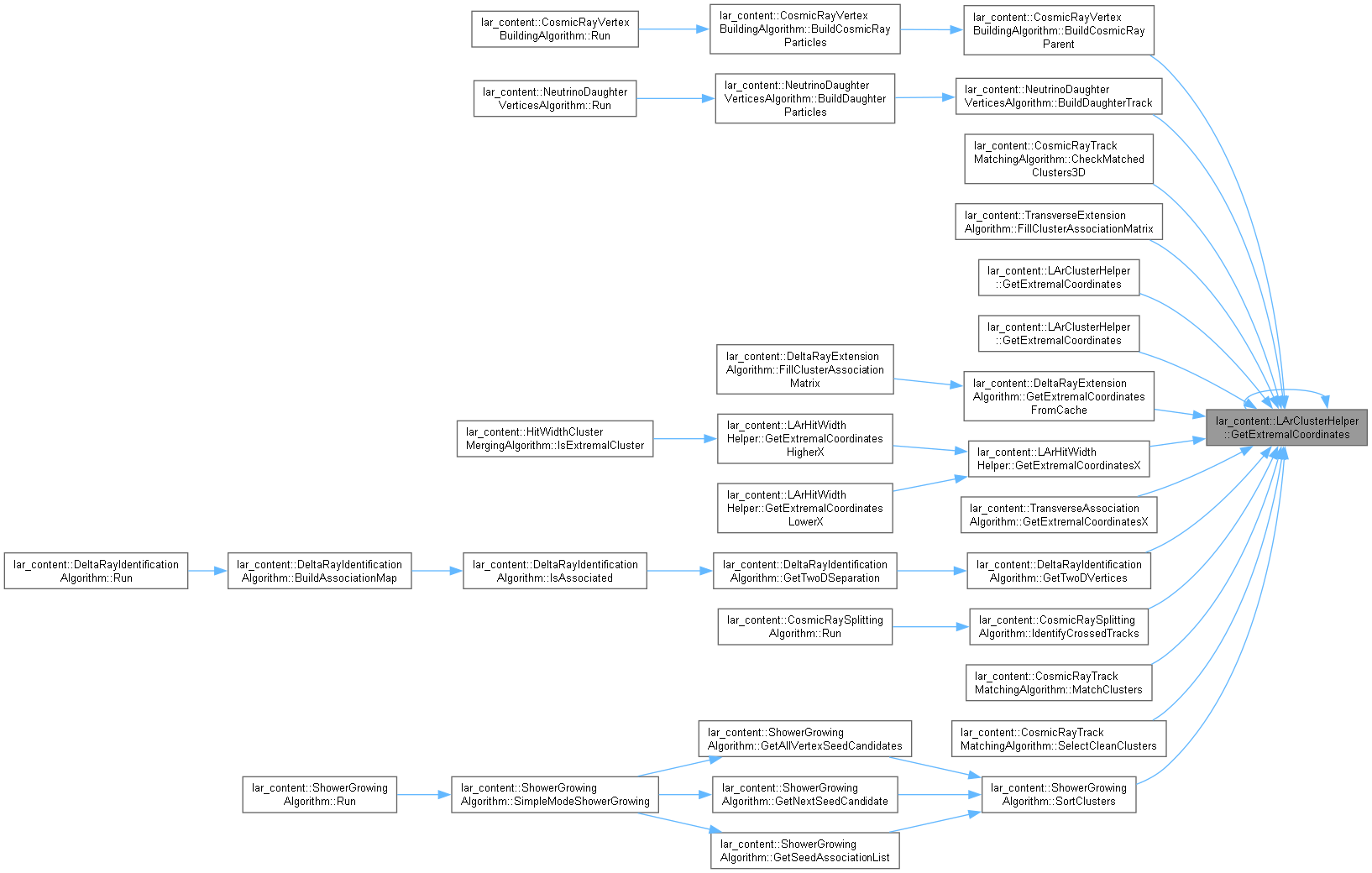

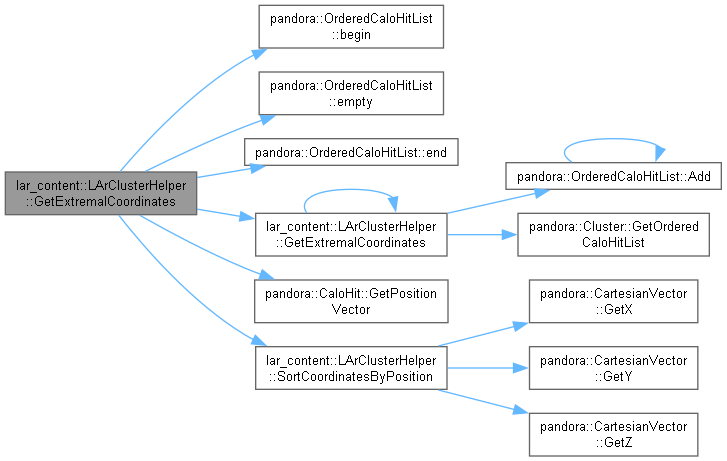

static void	GetExtremalCoordinates (const pandora::ClusterList &clusterList, pandora::CartesianVector &innerCoordinate, pandora::CartesianVector &outerCoordinate)
	Get positions of the two most distant calo hits in a list of cluster (ordered by Z)

static void	GetExtremalCoordinates (const pandora::Cluster *const pCluster, pandora::CartesianVector &innerCoordinate, pandora::CartesianVector &outerCoordinate)
	Get positions of the two most distant calo hits in a cluster (ordered by Z)

static void	GetExtremalCoordinates (const pandora::OrderedCaloHitList &orderedCaloHitList, pandora::CartesianVector &innerCoordinate, pandora::CartesianVector &outerCoordinate)
	Get positions of the two most distant calo hits in an ordered calo hit list (ordered by Z)

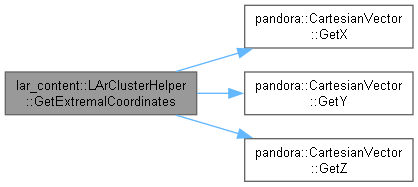

static void	GetExtremalCoordinates (const pandora::CartesianPointVector &coordinateVector, pandora::CartesianVector &innerCoordinate, pandora::CartesianVector &outerCoordinate)
	Get positions of the two most distant points in a provided list (ordered by Z)

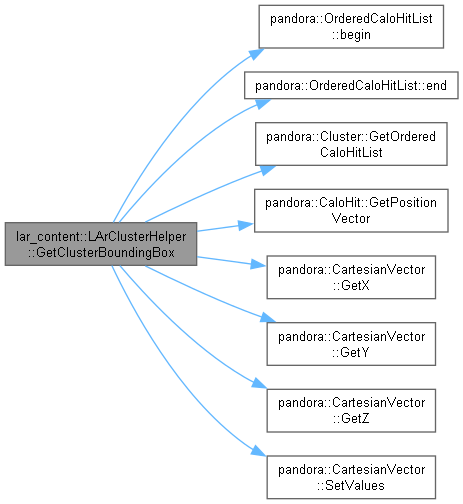

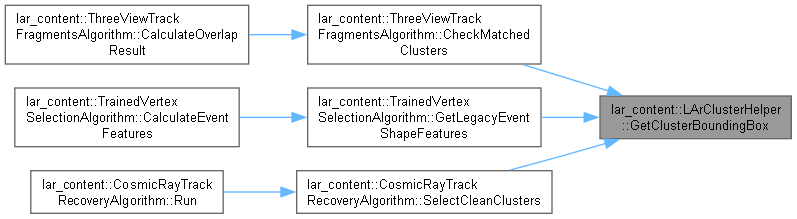

static void	GetClusterBoundingBox (const pandora::Cluster *const pCluster, pandora::CartesianVector &minimumCoordinate, pandora::CartesianVector &maximumCoordinate)
	Get minimum and maximum X, Y and Z positions of the calo hits in a cluster.

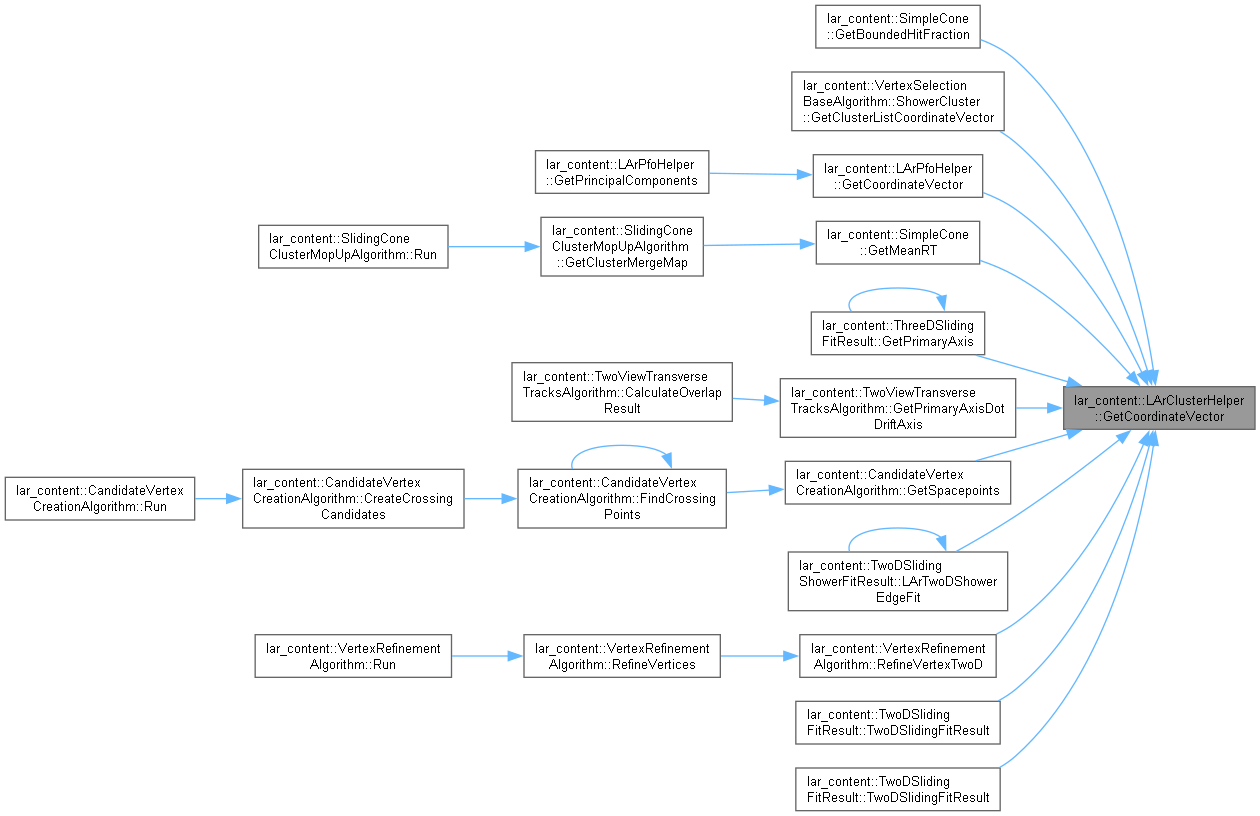

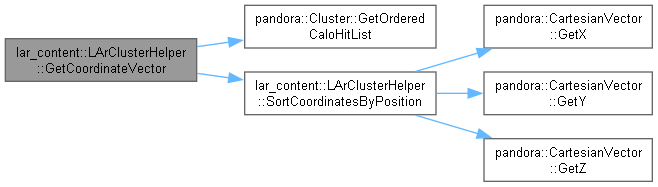

static void	GetCoordinateVector (const pandora::Cluster *const pCluster, pandora::CartesianPointVector &coordinateVector)
	Get vector of hit coordinates from an input cluster.

static void	GetCaloHitListInBoundingBox (const pandora::Cluster *const pCluster, const pandora::CartesianVector &lowerBound, const pandora::CartesianVector &upperBound, pandora::CaloHitList &caloHitList)
	Get list of Calo hits from an input cluster that are contained in a bounding box. The hits are sorted by position.

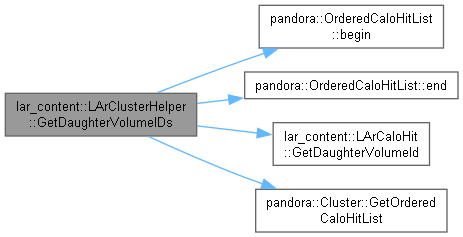

static void	GetDaughterVolumeIDs (const pandora::Cluster *const pCluster, UIntSet &daughterVolumeIds)
	Get the set of the daughter volumes that contains the cluster.

static pandora::StatusCode	GetAverageZ (const pandora::Cluster *const pCluster, const float xmin, const float xmax, float &averageZ)
	Get average Z positions of the calo hits in a cluster in range xmin to xmax.

static bool	SortByNOccupiedLayers (const pandora::Cluster const pLhs, const pandora::Cluster const pRhs)
	Sort clusters by number of occupied layers, and by inner layer, then energy in event of a tie.

static bool	SortByNHits (const pandora::Cluster const pLhs, const pandora::Cluster const pRhs)
	Sort clusters by number of hits, then layer span, then inner layer, then position, then pulse-height.

static bool	SortByLayerSpan (const pandora::Cluster const pLhs, const pandora::Cluster const pRhs)
	Sort clusters by layer span, then inner layer, then position, then pulse-height.

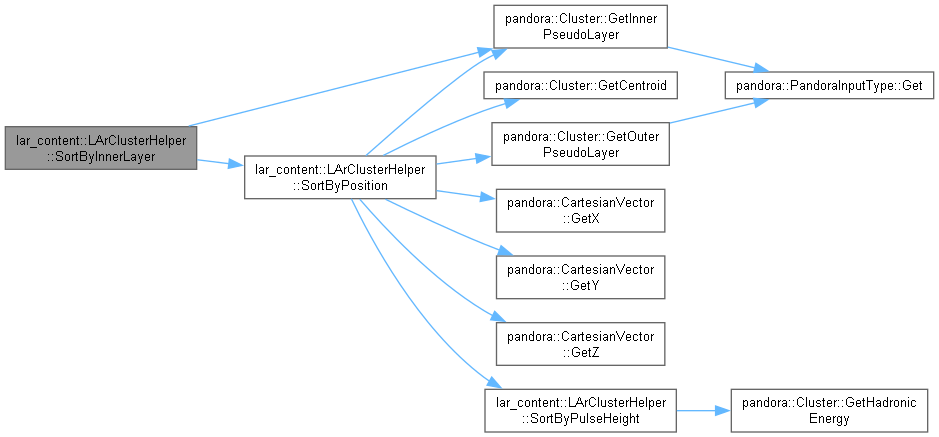

static bool	SortByInnerLayer (const pandora::Cluster const pLhs, const pandora::Cluster const pRhs)
	Sort clusters by inner layer, then position, then pulse-height.

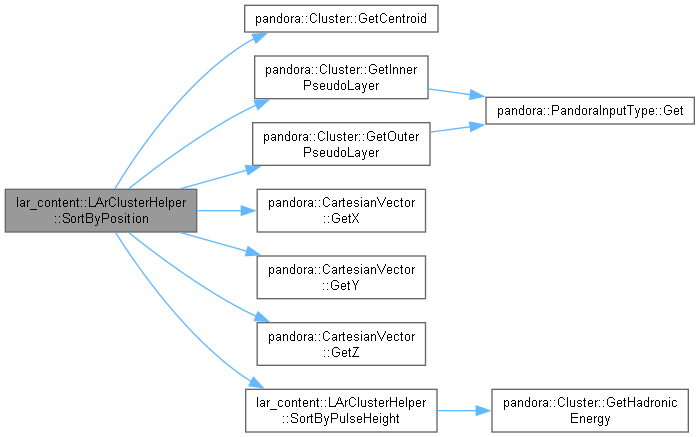

static bool	SortByPosition (const pandora::Cluster const pLhs, const pandora::Cluster const pRhs)
	Sort clusters by position, then pulse-height.

static bool	SortByPulseHeight (const pandora::Cluster const pLhs, const pandora::Cluster const pRhs)
	Sort clusters by pulse-height.

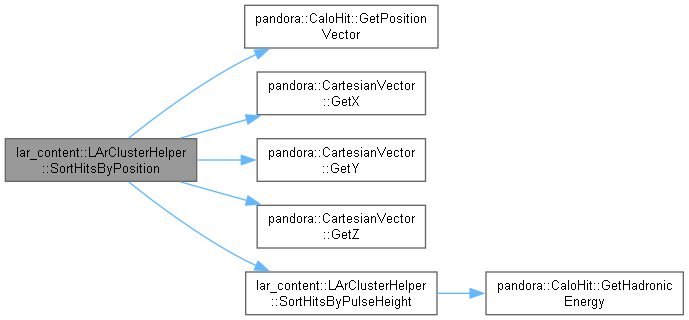

static bool	SortHitsByPosition (const pandora::CaloHit const pLhs, const pandora::CaloHit const pRhs)
	Sort calo hits by their position (use Z, followed by X, followed by Y)

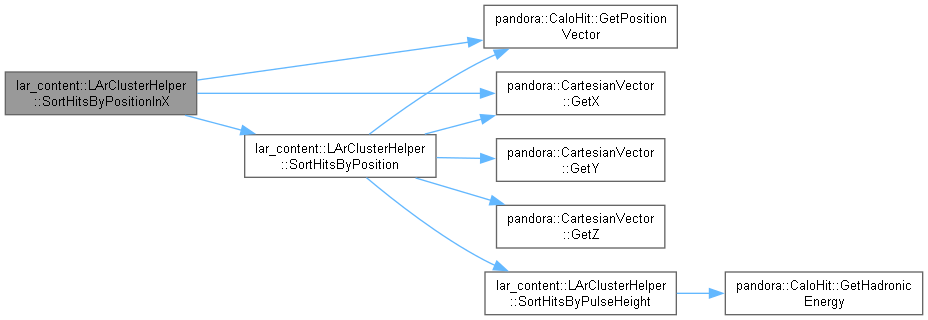

static bool	SortHitsByPositionInX (const pandora::CaloHit const pLhs, const pandora::CaloHit const pRhs)
	Sort calo hits by their position (use X, followed by Z, followed by Y)

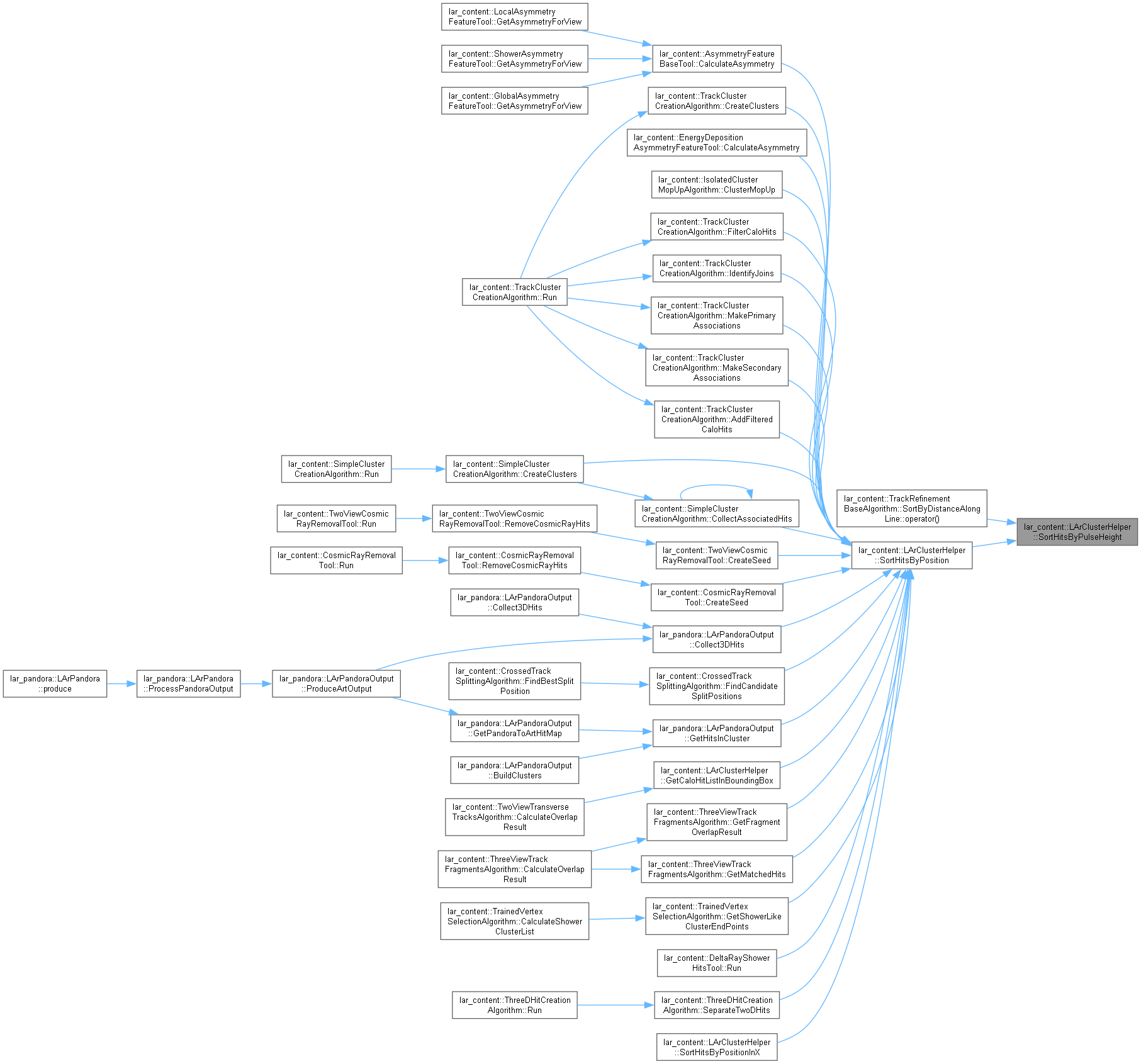

static bool	SortHitsByPulseHeight (const pandora::CaloHit const pLhs, const pandora::CaloHit const pRhs)
	Sort calo hits by their pulse height.

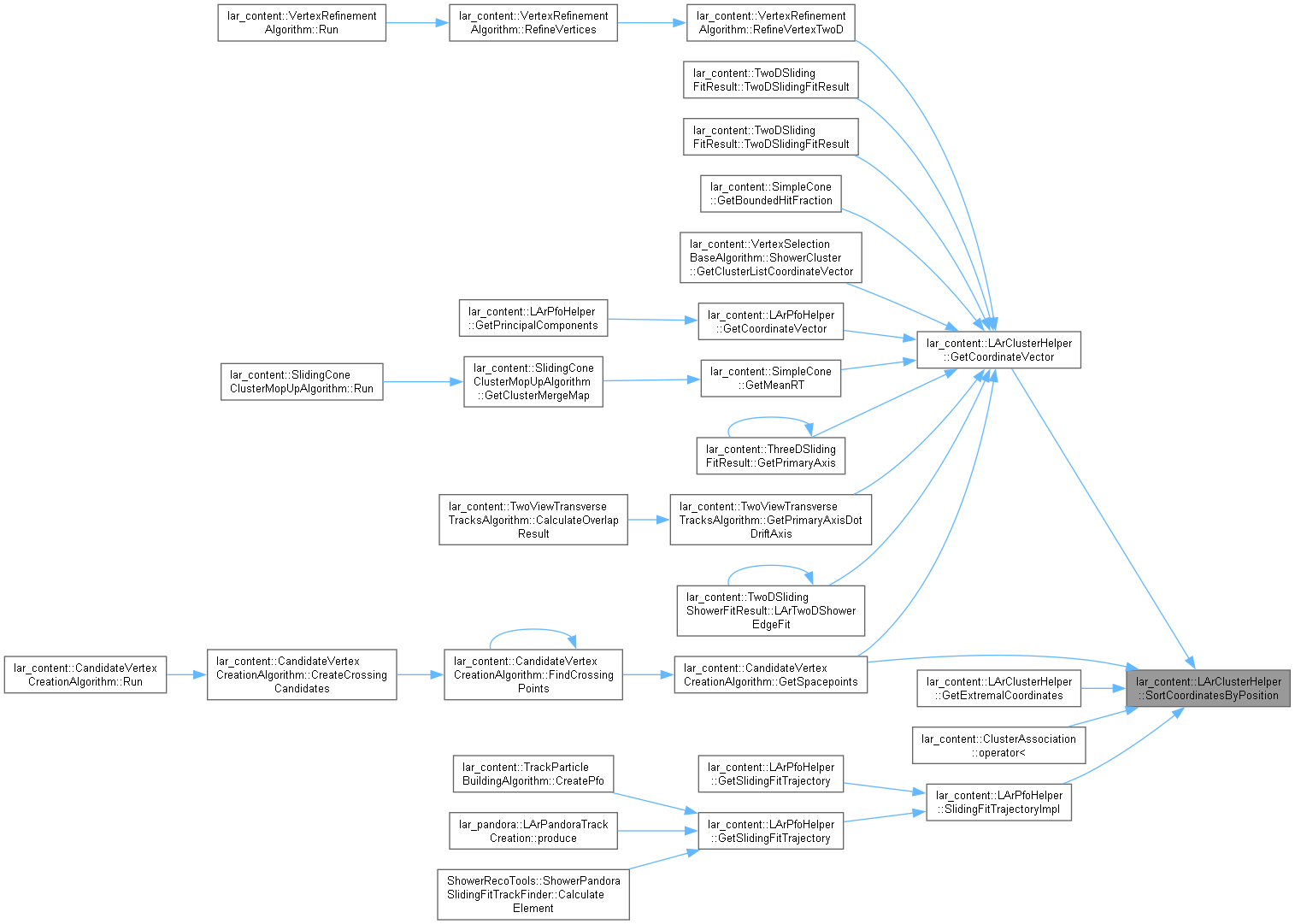

static bool	SortCoordinatesByPosition (const pandora::CartesianVector &lhs, const pandora::CartesianVector &rhs)
	Sort cartesian vectors by their position (use Z, followed by X, followed by Y)

Detailed Description

LArClusterHelper class.

Definition at line 19 of file LArClusterHelper.h.

Member Typedef Documentation

◆ UIntSet

typedef std::set<unsigned int> lar_content::LArClusterHelper::UIntSet

Definition at line 22 of file LArClusterHelper.h.

Member Function Documentation

◆ GetAverageZ()

StatusCode lar_content::LArClusterHelper::GetAverageZ	(	const pandora::Cluster *const	pCluster,
		const float	xmin,
		const float	xmax,
		float &	averageZ
	)

static

Get average Z positions of the calo hits in a cluster in range xmin to xmax.

Parameters

pCluster	address of the cluster
xmin	for range in x
xmax	for range in x
averageZ	to receive the average Z position

Returns: status code, faster than throwing in regular use-cases

Definition at line 388 of file LArClusterHelper.cc.

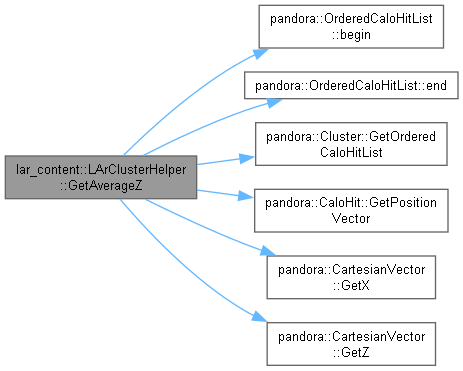

Here is the call graph for this function:

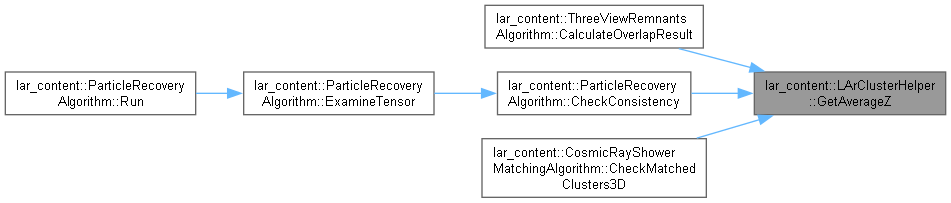

Here is the caller graph for this function:

◆ GetCaloHitListInBoundingBox()

void lar_content::LArClusterHelper::GetCaloHitListInBoundingBox	(	const pandora::Cluster *const	pCluster,
		const pandora::CartesianVector &	lowerBound,
		const pandora::CartesianVector &	upperBound,
		pandora::CaloHitList &	caloHitList
	)

static

Get list of Calo hits from an input cluster that are contained in a bounding box. The hits are sorted by position.

Parameters

pCluster	address of the cluster
lowerBound	one opposing corner of the bounding box
upperBound	the other opposing corner of the bounding box
caloHitList	the CaloHitList to be filled

Definition at line 586 of file LArClusterHelper.cc.

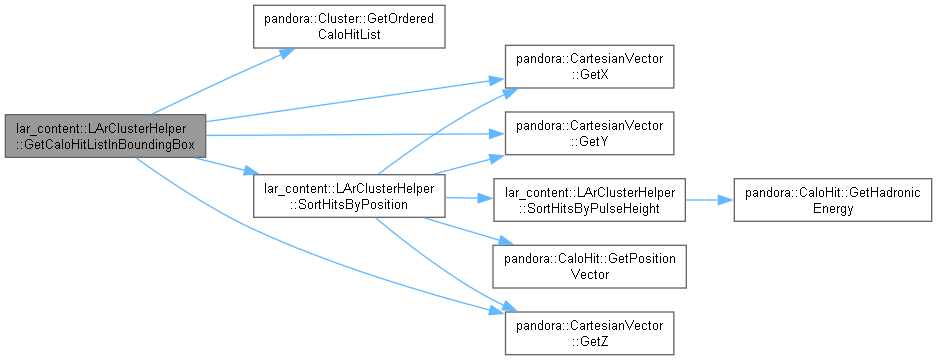

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClosestDistance() [1/6]

float lar_content::LArClusterHelper::GetClosestDistance	(	const pandora::CartesianVector &	position,
		const pandora::CaloHitList &	caloHitList
	)

static

Get closest distance between a specified position vector and the hits in a specified calo hit list.

Parameters

position	the position vector
caloHitList	the list of calo hits

Returns: the closest distance

Definition at line 214 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetClosestDistance() [2/6]

float lar_content::LArClusterHelper::GetClosestDistance	(	const pandora::CartesianVector &	position,
		const pandora::Cluster *const	pCluster
	)

static

Get closest distance between a specified position vector and the hits in a specified cluster.

Parameters

position	the position vector
pCluster	address of the cluster

Returns: the closest distance

Definition at line 207 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetClosestDistance() [3/6]

float lar_content::LArClusterHelper::GetClosestDistance	(	const pandora::CartesianVector &	position,
		const pandora::ClusterList &	clusterList
	)

static

Get closest distance between a specified position and list of clusters.

Parameters

position	the position vector
clusterList	list of input clusters

Returns: the closest distance

Definition at line 200 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetClosestDistance() [4/6]

float lar_content::LArClusterHelper::GetClosestDistance	(	const pandora::Cluster *const	pCluster,
		const pandora::ClusterList &	clusterList
	)

static

Get closest distance between a specified cluster and list of clusters.

Parameters

pCluster	address of the input cluster
clusterList	list of input clusters

Returns: the closest distance

Definition at line 167 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetClosestDistance() [5/6]

float lar_content::LArClusterHelper::GetClosestDistance	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2
	)

static

Get closest distance between a pair of clusters.

Parameters

pCluster1	address of the first cluster
pCluster2	address of the second cluster

Returns: the closest distance

Definition at line 188 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetClosestDistance() [6/6]

float lar_content::LArClusterHelper::GetClosestDistance	(	const pandora::ClusterList &	clusterList1,
		const pandora::ClusterList &	clusterList2
	)

static

Get closest distance between clusters in a pair of cluster lists.

Parameters

clusterList1	the first cluster list
clusterList2	the second cluster list

Returns: the closest distance

Definition at line 146 of file LArClusterHelper.cc.

Here is the call graph for this function:

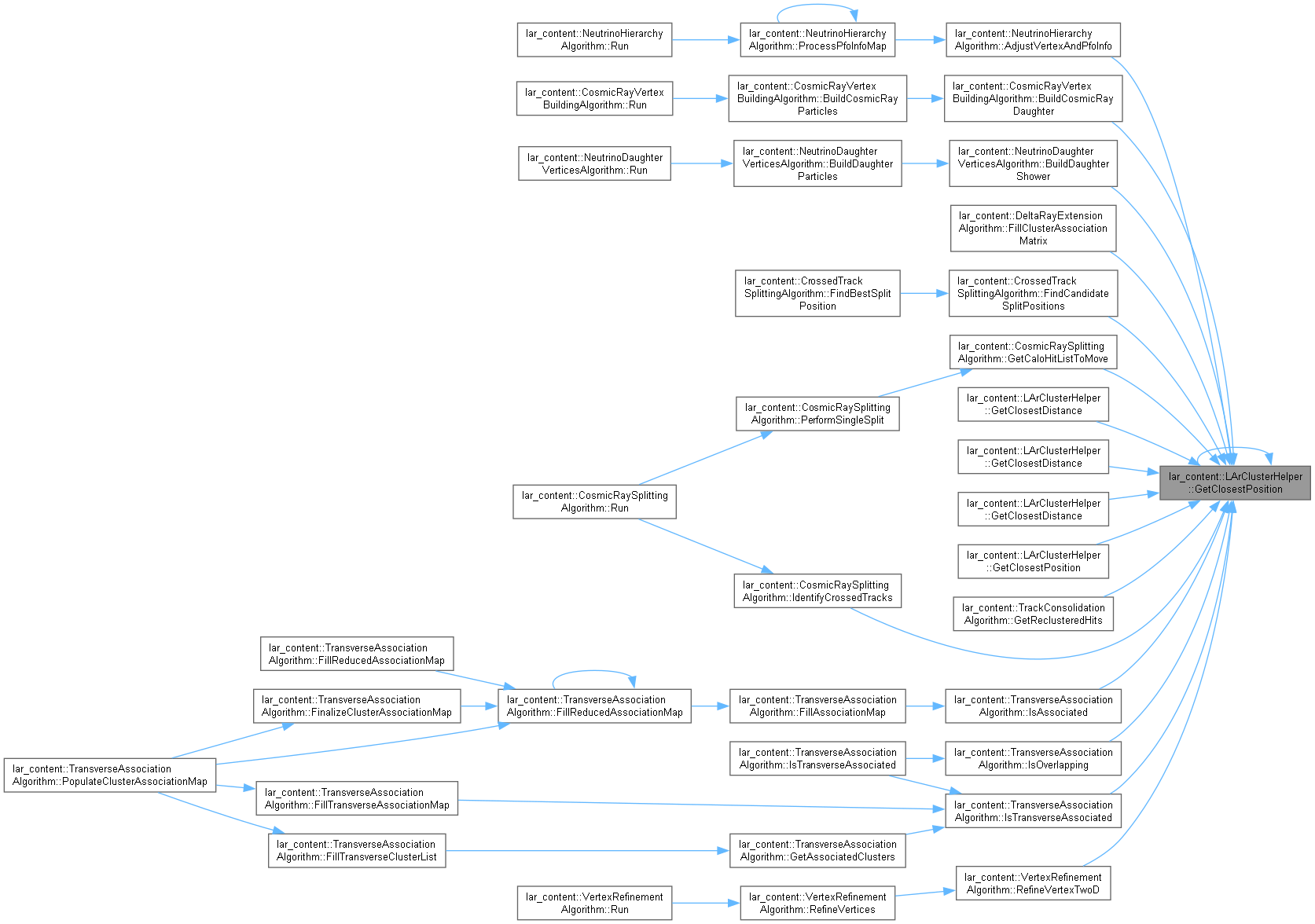

◆ GetClosestPosition() [1/4]

CartesianVector lar_content::LArClusterHelper::GetClosestPosition	(	const pandora::CartesianVector &	position,
		const pandora::CaloHitList &	caloHitList
	)

static

Get closest position of hits in a given calo hit list to a specified input position vector.

Parameters

position	the position vector
caloHitList	the list of calo hits

Returns: the closest position

Definition at line 283 of file LArClusterHelper.cc.

Here is the call graph for this function:

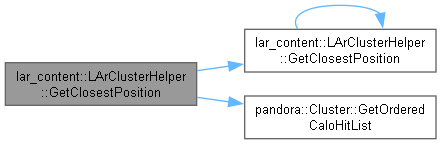

◆ GetClosestPosition() [2/4]

CartesianVector lar_content::LArClusterHelper::GetClosestPosition	(	const pandora::CartesianVector &	position,
		const pandora::Cluster *const	pCluster
	)

static

Get closest position on a cluster to a specified input position vector.

Parameters

position	the position vector
pCluster	address of the cluster

Returns: the closest position

Definition at line 249 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetClosestPosition() [3/4]

CartesianVector lar_content::LArClusterHelper::GetClosestPosition	(	const pandora::CartesianVector &	position,
		const pandora::ClusterList &	clusterList
	)

static

Get closest position in a list of clusters to a specified input position vector.

Parameters

position	the position vector
clusterList	list of input clusters

Returns: the closest position

Definition at line 221 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClosestPosition() [4/4]

CartesianVector lar_content::LArClusterHelper::GetClosestPosition	(	const pandora::CartesianVector &	position,
		const pandora::OrderedCaloHitList &	caloHitList
	)

static

Get closest position of hits in a given calo hit list to a specified input position vector.

Parameters

position	the position vector
caloHitList	the list of calo hits

Returns: the closest position

Definition at line 256 of file LArClusterHelper.cc.

Here is the call graph for this function:

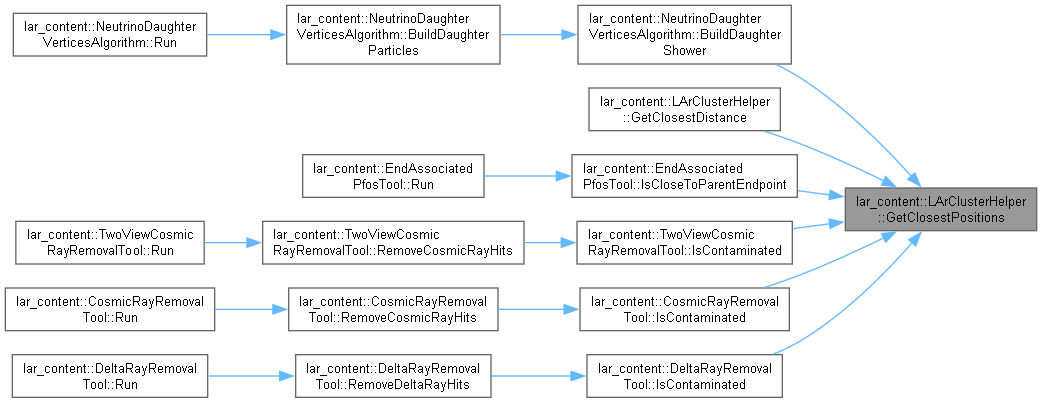

◆ GetClosestPositions()

void lar_content::LArClusterHelper::GetClosestPositions	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2,
		pandora::CartesianVector &	position1,
		pandora::CartesianVector &	position2
	)

static

Get pair of closest positions for a pair of clusters.

Parameters

pCluster1	the address of the first cluster
pCluster2	the address of the second cluster
the	closest position in the first cluster
the	closest position in the second cluster

Definition at line 307 of file LArClusterHelper.cc.

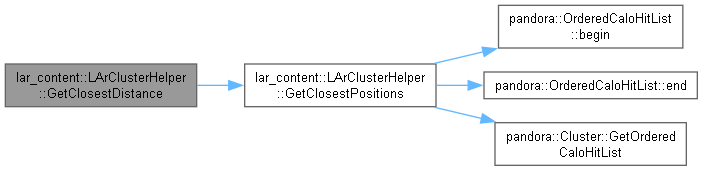

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClusterBoundingBox()

void lar_content::LArClusterHelper::GetClusterBoundingBox	(	const pandora::Cluster *const	pCluster,
		pandora::CartesianVector &	minimumCoordinate,
		pandora::CartesianVector &	maximumCoordinate
	)

static

Get minimum and maximum X, Y and Z positions of the calo hits in a cluster.

Parameters

pCluster	address of the cluster
the	minimum positions (x,y,z)
the	maximum positions (x,y,z)

Definition at line 356 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClusterHitType()

HitType lar_content::LArClusterHelper::GetClusterHitType ( const pandora::Cluster *const pCluster )

static

Get the hit type associated with a two dimensional cluster.

Parameters

pCluster the address of the cluster

Returns: the cluster hit type

Definition at line 21 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetClustersByHitType()

void lar_content::LArClusterHelper::GetClustersByHitType	(	const pandora::ClusterList &	inputClusters,
		const pandora::HitType	hitType,
		pandora::ClusterList &	clusterList
	)

static

Get the subset of clusters, from a provided list, that match the specified hit type.

Parameters

inputClusters	the input cluster list
hitType	the specified hit type
clusterList	to receive the clusters

Definition at line 54 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClustersUVW()

void lar_content::LArClusterHelper::GetClustersUVW	(	const pandora::ClusterList &	inputClusters,
		pandora::ClusterList &	clusterListU,
		pandora::ClusterList &	clusterListV,
		pandora::ClusterList &	clusterListW
	)

static

Divide an input cluster list into separate u, v and w lists (exception raised if alternative hit type encountered)

Parameters

inputClusters	the input cluster list
clusterListU	to receive the u clusters
clusterListV	to receive the v clusters
clusterListW	to receive the w clusters

Definition at line 35 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetCoordinateVector()

void lar_content::LArClusterHelper::GetCoordinateVector	(	const pandora::Cluster *const	pCluster,
		pandora::CartesianPointVector &	coordinateVector
	)

static

Get vector of hit coordinates from an input cluster.

Parameters

pCluster	address of the cluster
coordinateVector

Definition at line 573 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDaughterVolumeIDs()

void lar_content::LArClusterHelper::GetDaughterVolumeIDs	(	const pandora::Cluster *const	pCluster,
		UIntSet &	daughterVolumeIds
	)

static

Get the set of the daughter volumes that contains the cluster.

Parameters

pCluster	address of the cluster
daughterVolumeIds	output variable

Definition at line 625 of file LArClusterHelper.cc.

Here is the call graph for this function:

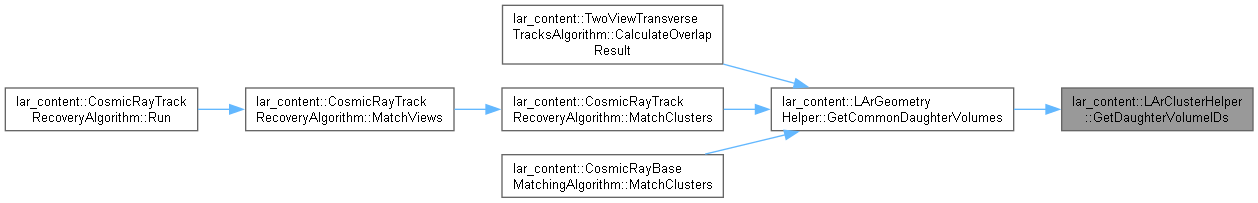

Here is the caller graph for this function:

◆ GetEnergyFromLength()

float lar_content::LArClusterHelper::GetEnergyFromLength ( const pandora::Cluster *const pCluster )

static

Get energy of cluster, based on length.

Parameters

pCluster address of the cluster

Returns: the energy

Definition at line 104 of file LArClusterHelper.cc.

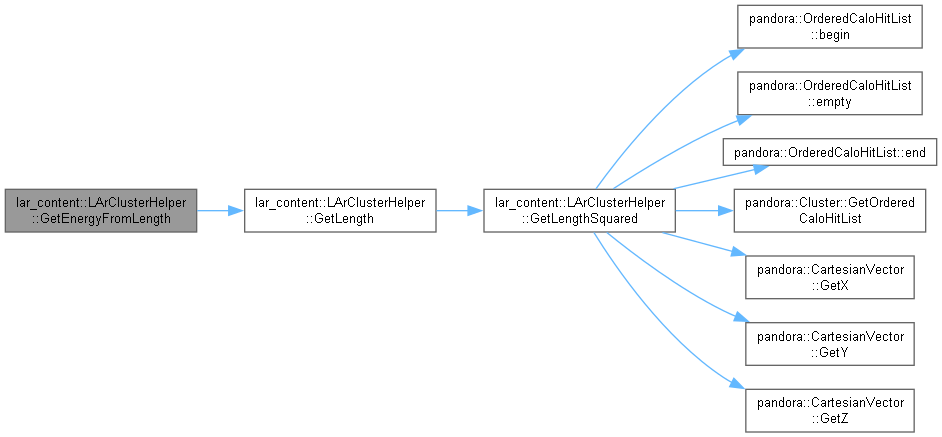

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExtremalCoordinates() [1/4]

void lar_content::LArClusterHelper::GetExtremalCoordinates	(	const pandora::CartesianPointVector &	coordinateVector,
		pandora::CartesianVector &	innerCoordinate,
		pandora::CartesianVector &	outerCoordinate
	)

static

Get positions of the two most distant points in a provided list (ordered by Z)

Parameters

coordinateVector	the hit list
the	inner extremal position
the	outer extremal position

Definition at line 468 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetExtremalCoordinates() [2/4]

void lar_content::LArClusterHelper::GetExtremalCoordinates	(	const pandora::Cluster *const	pCluster,
		pandora::CartesianVector &	innerCoordinate,
		pandora::CartesianVector &	outerCoordinate
	)

static

Get positions of the two most distant calo hits in a cluster (ordered by Z)

Parameters

pCluster	the input cluster
the	inner extremal position
the	outer extremal position

Definition at line 439 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetExtremalCoordinates() [3/4]

void lar_content::LArClusterHelper::GetExtremalCoordinates	(	const pandora::ClusterList &	clusterList,
		pandora::CartesianVector &	innerCoordinate,
		pandora::CartesianVector &	outerCoordinate
	)

static

Get positions of the two most distant calo hits in a list of cluster (ordered by Z)

Parameters

clusterList	the input cluster list
the	inner extremal position
the	outer extremal position

Definition at line 424 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExtremalCoordinates() [4/4]

void lar_content::LArClusterHelper::GetExtremalCoordinates	(	const pandora::OrderedCaloHitList &	orderedCaloHitList,
		pandora::CartesianVector &	innerCoordinate,
		pandora::CartesianVector &	outerCoordinate
	)

static

Get positions of the two most distant calo hits in an ordered calo hit list (ordered by Z)

Parameters

orderedCaloHitList	the ordered calo hit list
the	inner extremal position
the	outer extremal position

Definition at line 446 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetLayerOccupancy() [1/2]

float lar_content::LArClusterHelper::GetLayerOccupancy ( const pandora::Cluster *const pCluster )

static

Fraction of occupied layers in cluster.

Parameters

pCluster address of the cluster

Returns: float

Definition at line 119 of file LArClusterHelper.cc.

Here is the call graph for this function:

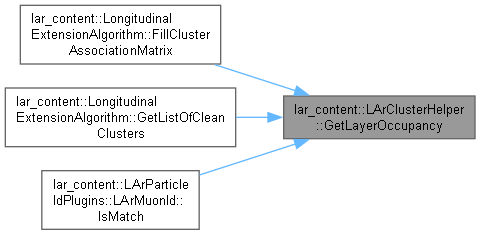

Here is the caller graph for this function:

◆ GetLayerOccupancy() [2/2]

float lar_content::LArClusterHelper::GetLayerOccupancy	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2
	)

static

Fraction of occupied layers in a pair of clusters.

Parameters

pCluster1	address of the first cluster
pCluster2	address of the second cluster

Returns: float

Definition at line 132 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ GetLayerSpan()

unsigned int lar_content::LArClusterHelper::GetLayerSpan ( const pandora::Cluster *const pCluster )

static

Get number of layers spanned by cluster (1+Last-First)

Parameters

pCluster address of the cluster

Returns: the layer span

Definition at line 112 of file LArClusterHelper.cc.

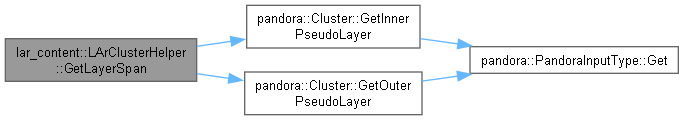

Here is the call graph for this function:

◆ GetLength()

float lar_content::LArClusterHelper::GetLength ( const pandora::Cluster *const pCluster )

static

Get length of cluster.

Parameters

pCluster address of the cluster

Returns: the length

Definition at line 97 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetLengthSquared()

float lar_content::LArClusterHelper::GetLengthSquared ( const pandora::Cluster *const pCluster )

static

Get length squared of cluster.

Parameters

pCluster address of the cluster

Returns: the length squared

Definition at line 65 of file LArClusterHelper.cc.

Here is the call graph for this function:

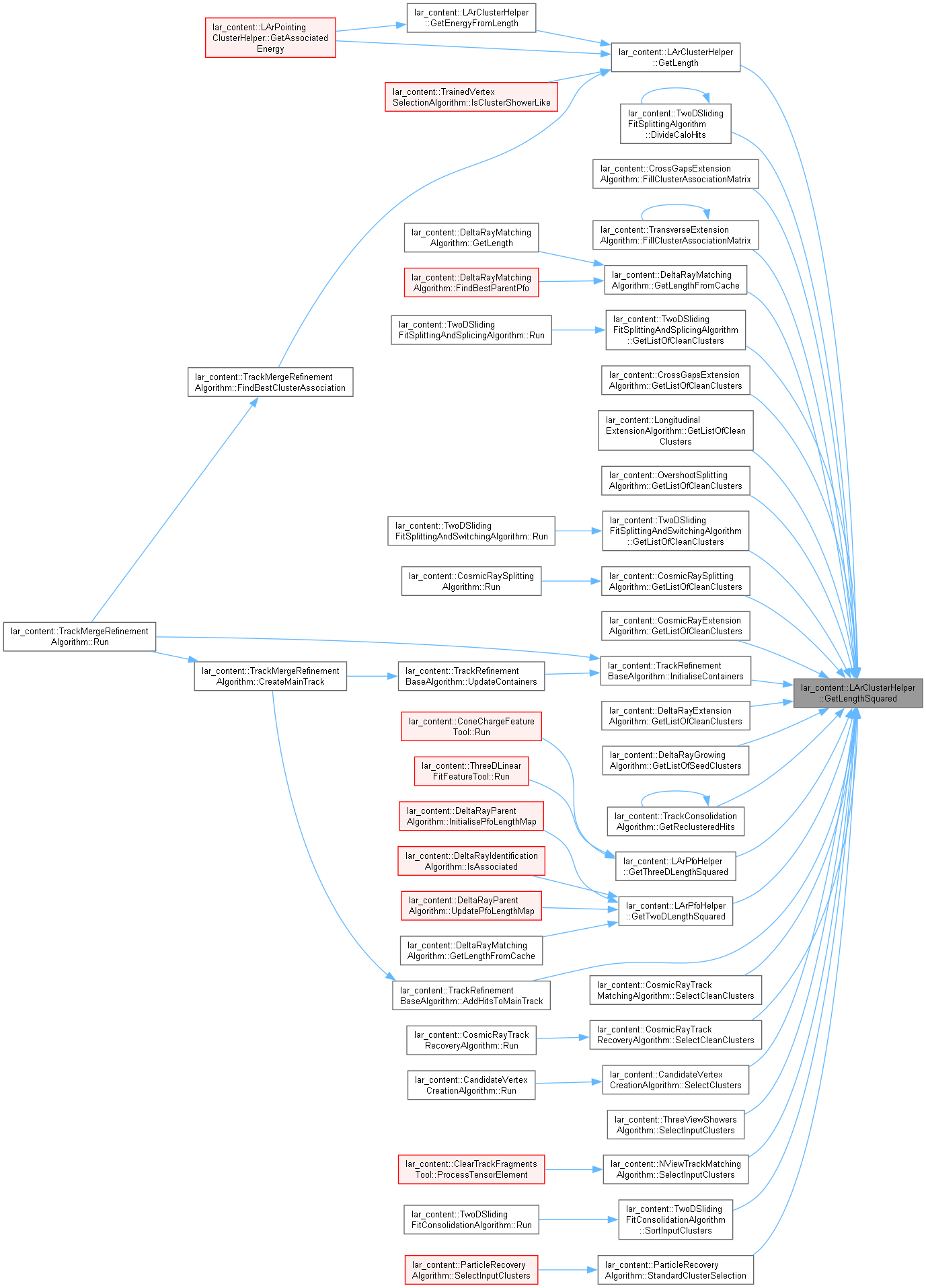

Here is the caller graph for this function:

◆ SortByInnerLayer()

bool lar_content::LArClusterHelper::SortByInnerLayer	(	const pandora::Cluster *const	pLhs,
		const pandora::Cluster *const	pRhs
	)

static

Sort clusters by inner layer, then position, then pulse-height.

Parameters

pLhs	address of first cluster
pRhs	address of second cluster

Definition at line 682 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SortByLayerSpan()

bool lar_content::LArClusterHelper::SortByLayerSpan	(	const pandora::Cluster *const	pLhs,
		const pandora::Cluster *const	pRhs
	)

static

Sort clusters by layer span, then inner layer, then position, then pulse-height.

Parameters

pLhs	address of first cluster
pRhs	address of second cluster

Definition at line 669 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SortByNHits()

bool lar_content::LArClusterHelper::SortByNHits	(	const pandora::Cluster *const	pLhs,
		const pandora::Cluster *const	pRhs
	)

static

Sort clusters by number of hits, then layer span, then inner layer, then position, then pulse-height.

Parameters

pLhs	address of first cluster
pRhs	address of second cluster

Definition at line 656 of file LArClusterHelper.cc.

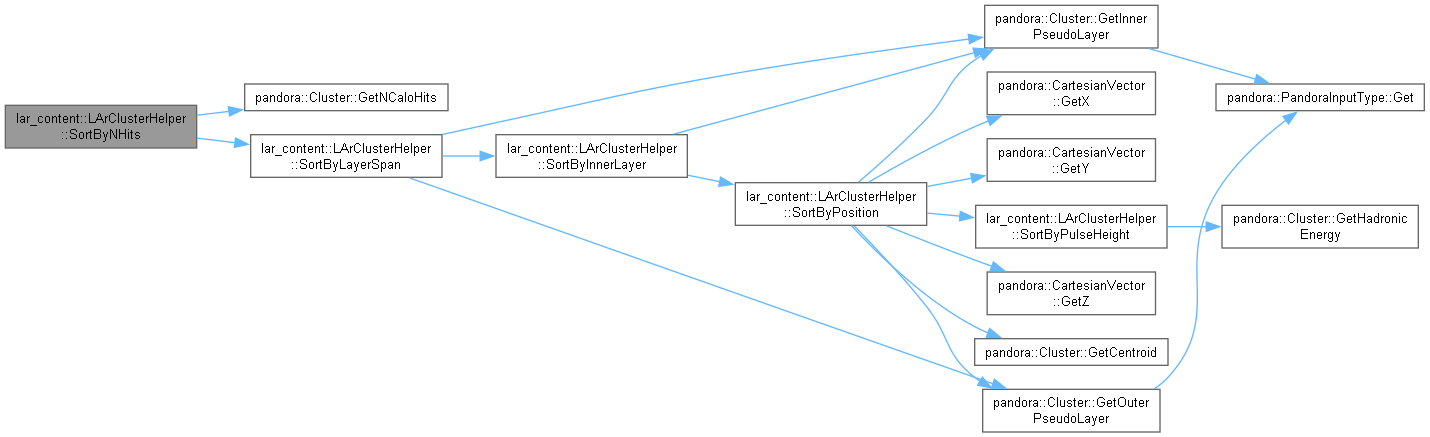

Here is the call graph for this function:

◆ SortByNOccupiedLayers()

bool lar_content::LArClusterHelper::SortByNOccupiedLayers	(	const pandora::Cluster *const	pLhs,
		const pandora::Cluster *const	pRhs
	)

static

Sort clusters by number of occupied layers, and by inner layer, then energy in event of a tie.

Parameters

pLhs	address of first cluster
pRhs	address of second cluster

Definition at line 643 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ SortByPosition()

bool lar_content::LArClusterHelper::SortByPosition	(	const pandora::Cluster *const	pLhs,
		const pandora::Cluster *const	pRhs
	)

static

Sort clusters by position, then pulse-height.

Parameters

pLhs	address of first cluster
pRhs	address of second cluster

Definition at line 695 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SortByPulseHeight()

bool lar_content::LArClusterHelper::SortByPulseHeight	(	const pandora::Cluster *const	pLhs,
		const pandora::Cluster *const	pRhs
	)

static

Sort clusters by pulse-height.

Parameters

pLhs	address of first cluster
pRhs	address of second cluster

Definition at line 725 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SortCoordinatesByPosition()

bool lar_content::LArClusterHelper::SortCoordinatesByPosition	(	const pandora::CartesianVector &	lhs,
		const pandora::CartesianVector &	rhs
	)

static

Sort cartesian vectors by their position (use Z, followed by X, followed by Y)

Parameters

lhs	first point
rhs	second point

Definition at line 771 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SortHitsByPosition()

bool lar_content::LArClusterHelper::SortHitsByPosition	(	const pandora::CaloHit *const	pLhs,
		const pandora::CaloHit *const	pRhs
	)

static

Sort calo hits by their position (use Z, followed by X, followed by Y)

Parameters

pLhs	address of first calo hit
pRhs	address of second calo hit

Definition at line 732 of file LArClusterHelper.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SortHitsByPositionInX()

bool lar_content::LArClusterHelper::SortHitsByPositionInX	(	const pandora::CaloHit *const	pLhs,
		const pandora::CaloHit *const	pRhs
	)

static

Sort calo hits by their position (use X, followed by Z, followed by Y)

Parameters

pLhs	address of first calo hit
pRhs	address of second calo hit

Definition at line 751 of file LArClusterHelper.cc.

Here is the call graph for this function:

◆ SortHitsByPulseHeight()

bool lar_content::LArClusterHelper::SortHitsByPulseHeight	(	const pandora::CaloHit *const	pLhs,
		const pandora::CaloHit *const	pRhs
	)

static

Sort calo hits by their pulse height.

Parameters

pLhs	address of first calo hit
pRhs	address of second calo hit

Definition at line 763 of file LArClusterHelper.cc.

Here is the call graph for this function:

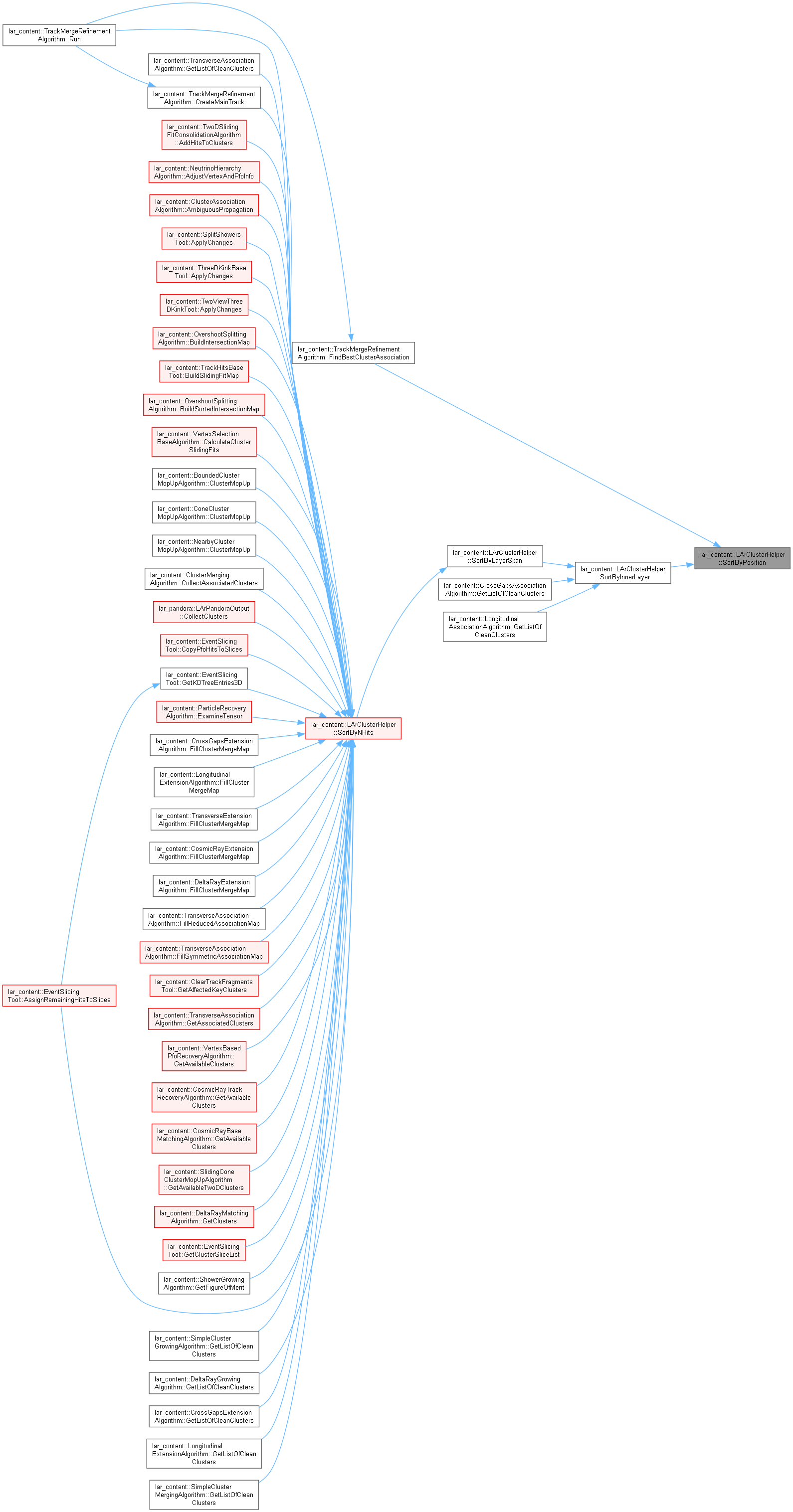

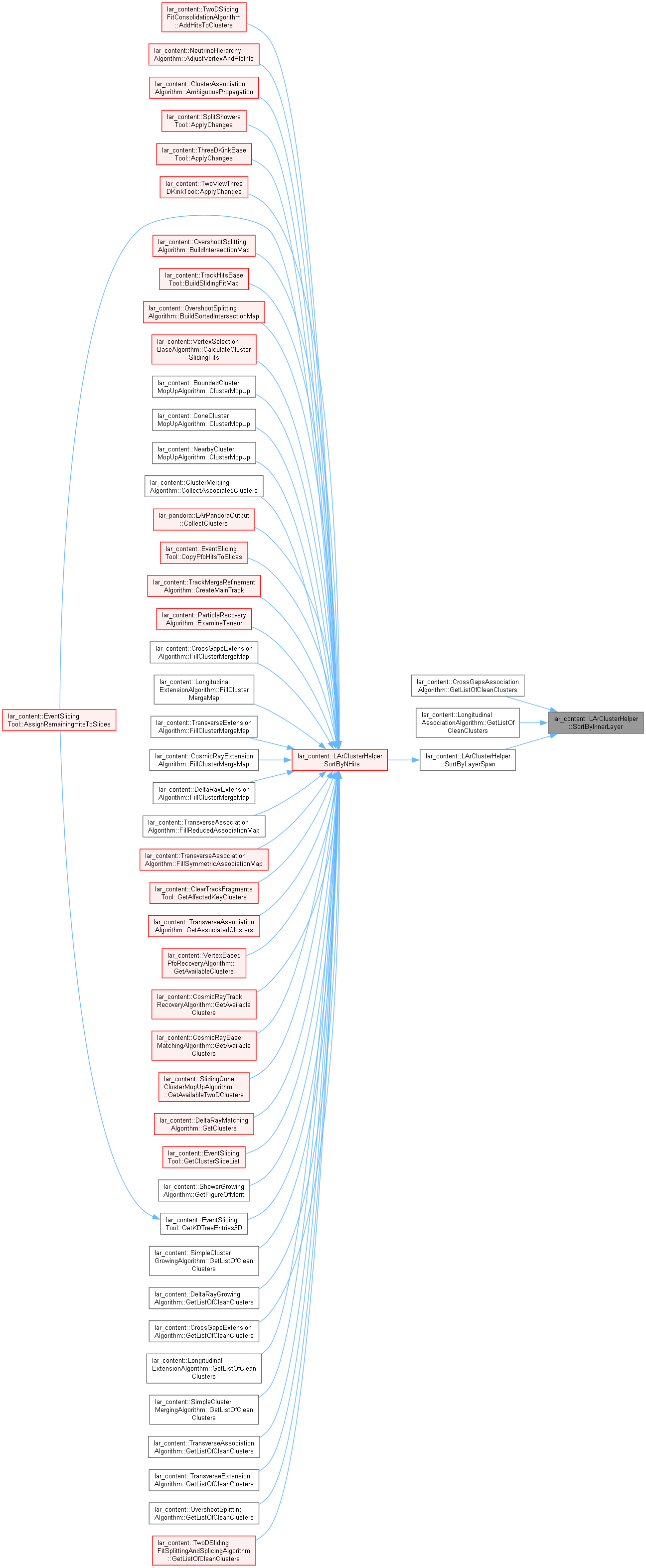

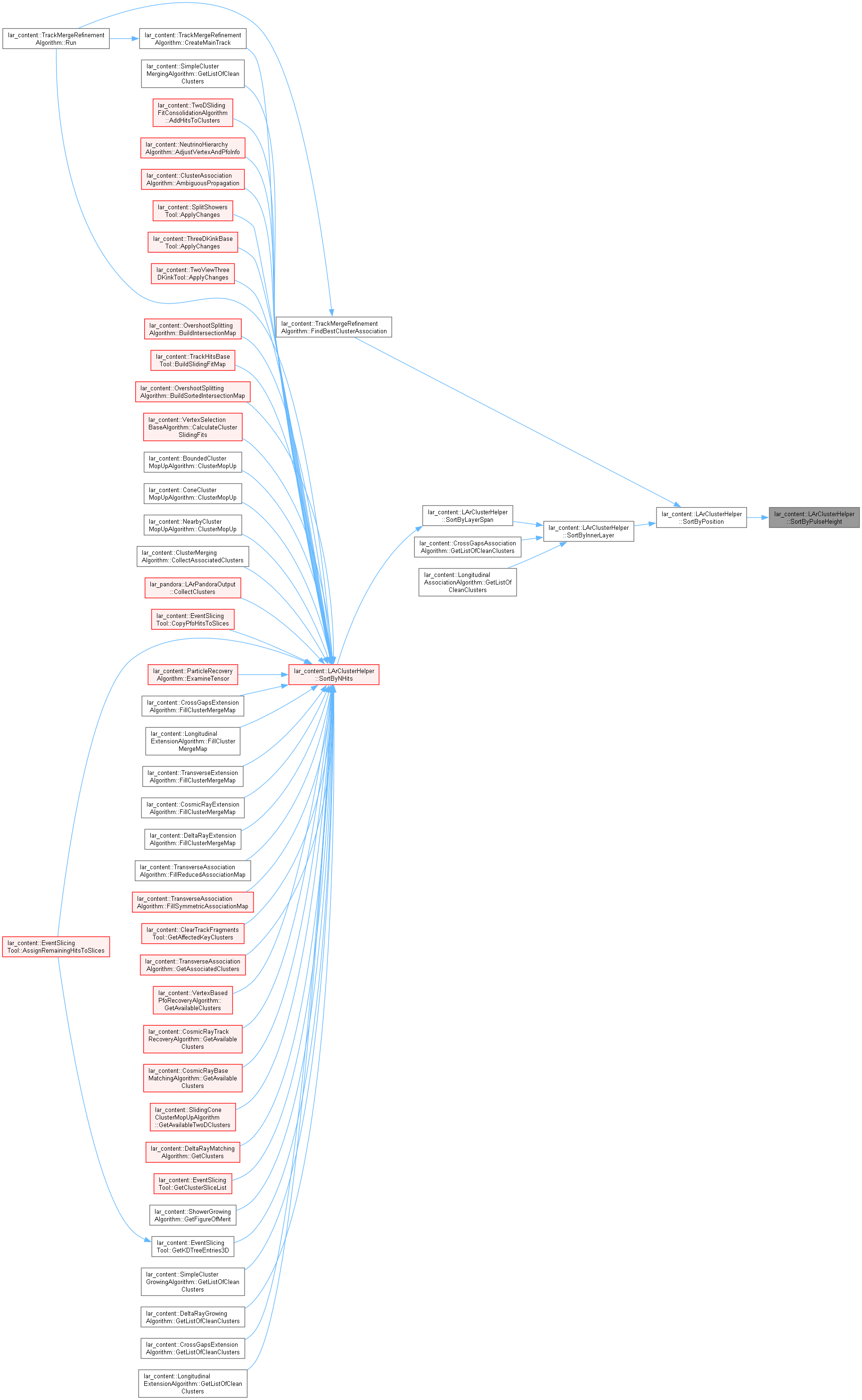

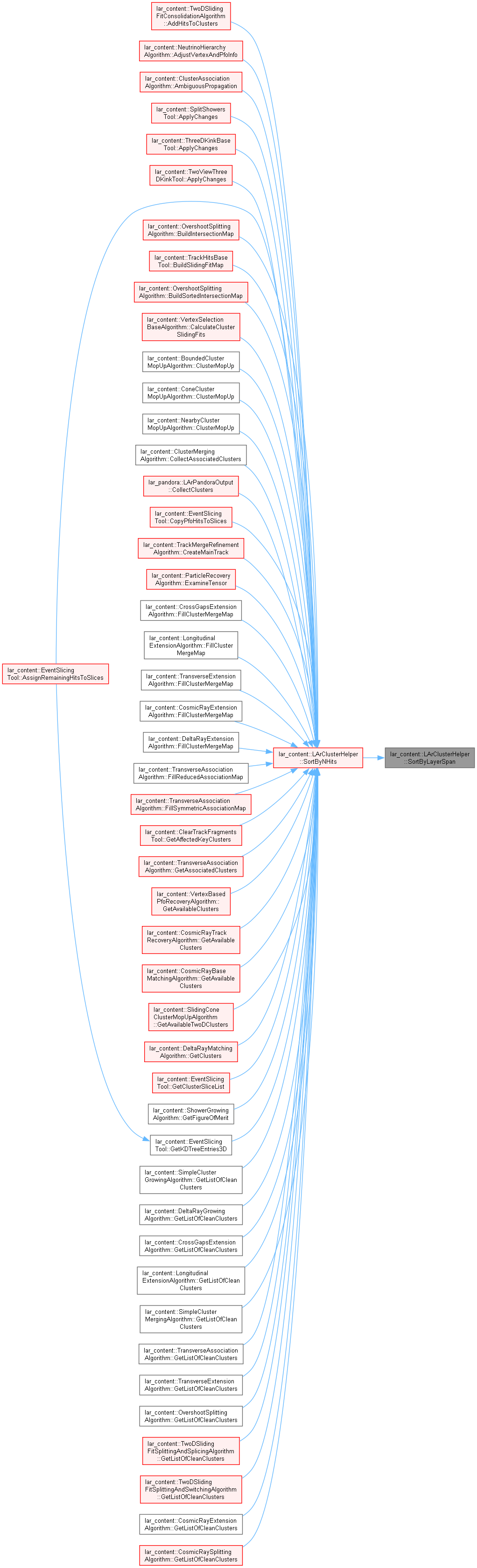

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArHelpers/LArClusterHelper.h
LArContent/larpandoracontent/LArHelpers/LArClusterHelper.cc

Public Types

Static Public Member Functions

Detailed Description

Member Typedef Documentation

◆ UIntSet

Member Function Documentation

◆ GetAverageZ()

◆ GetCaloHitListInBoundingBox()

◆ GetClosestDistance() [1/6]

◆ GetClosestDistance() [2/6]

◆ GetClosestDistance() [3/6]

◆ GetClosestDistance() [4/6]

◆ GetClosestDistance() [5/6]

◆ GetClosestDistance() [6/6]

◆ GetClosestPosition() [1/4]

◆ GetClosestPosition() [2/4]

◆ GetClosestPosition() [3/4]

◆ GetClosestPosition() [4/4]

◆ GetClosestPositions()

◆ GetClusterBoundingBox()

◆ GetClusterHitType()

◆ GetClustersByHitType()

◆ GetClustersUVW()

◆ GetCoordinateVector()

◆ GetDaughterVolumeIDs()

◆ GetEnergyFromLength()

◆ GetExtremalCoordinates() [1/4]

◆ GetExtremalCoordinates() [2/4]

◆ GetExtremalCoordinates() [3/4]

◆ GetExtremalCoordinates() [4/4]

◆ GetLayerOccupancy() [1/2]

◆ GetLayerOccupancy() [2/2]

◆ GetLayerSpan()

◆ GetLength()

◆ GetLengthSquared()

◆ SortByInnerLayer()

◆ SortByLayerSpan()

◆ SortByNHits()

◆ SortByNOccupiedLayers()

◆ SortByPosition()

◆ SortByPulseHeight()

◆ SortCoordinatesByPosition()

◆ SortHitsByPosition()

◆ SortHitsByPositionInX()

◆ SortHitsByPulseHeight()
