DeltaRayMatchingContainers class. More...

#include "DeltaRayMatchingContainers.h"

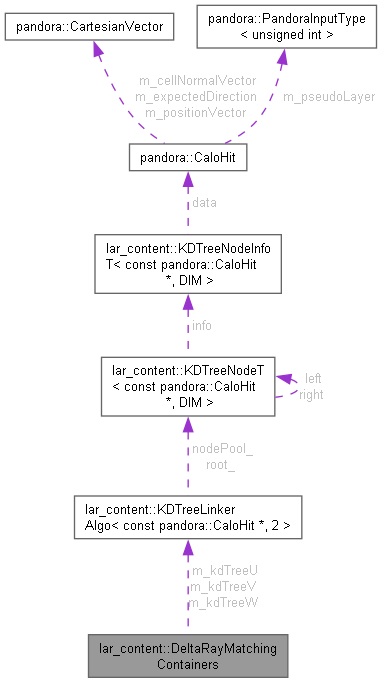

Collaboration diagram for lar_content::DeltaRayMatchingContainers:

[legend]

Public Types
typedef std::map< const pandora::Cluster , const pandora::ParticleFlowObject >	ClusterToPfoMap

typedef std::map< const pandora::Cluster *, pandora::ClusterList >	ClusterProximityMap

Public Member Functions
	DeltaRayMatchingContainers ()
	Default constructor.

const ClusterToPfoMap &	GetClusterToPfoMap (const pandora::HitType hitType) const
	Get the mapping of clusters to the pfos to which they belong.

const ClusterProximityMap &	GetClusterProximityMap (const pandora::HitType hitType) const
	Get the mapping of clusters to to their neighbouring clusters.

void	FillContainers (const pandora::PfoList &inputPfoList, const pandora::ClusterList &inputClusterList1, const pandora::ClusterList &inputClusterList2=pandora::ClusterList(), const pandora::ClusterList &inputClusterList3=pandora::ClusterList())
	Fill the HitToClusterMap, the ClusterProximityMap and the ClusterToPfoMap in all input views.

void	AddClustersToPfoMaps (const pandora::ParticleFlowObject *const pPfo)
	Add the clusters of a cosmic ray/delta ray pfo to the cluster to pfo maps.

void	AddClustersToContainers (const pandora::ClusterVector &newClusterVector, const pandora::PfoVector &pfoVector)
	Add a list of clusters to the hit to cluster and cluster proximity maps and, if appropriate, to the cluster to pfo map.

void	RemoveClusterFromContainers (const pandora::Cluster *const pDeletedCluster)
	Remove an input cluster's hits from the hit to cluster and cluster proximity maps and, if appropriate, from the cluster to pfo map.

void	ClearContainers ()
	Empty all algorithm containers.

Public Attributes
float	m_searchRegion1D
	Search region, applied to each dimension, for look-up from kd-tree.

Private Types
typedef std::map< const pandora::CaloHit , const pandora::Cluster >	HitToClusterMap

typedef KDTreeLinkerAlgo< const pandora::CaloHit *, 2 >	HitKDTree2D

typedef KDTreeNodeInfoT< const pandora::CaloHit *, 2 >	HitKDNode2D

typedef std::vector< HitKDNode2D >	HitKDNode2DList

Private Member Functions
void	FillHitToClusterMap (const pandora::ClusterList &inputClusterList)
	Populate the hit to cluster map from a list of clusters.

void	AddToClusterMap (const pandora::Cluster *const pCluster)
	Add the hits of a given cluster to the hit to cluster map.

void	FillClusterToPfoMaps (const pandora::PfoList &pfoList)
	Populate all cluster to pfo maps from a list of particle flow objects.

void	FillClusterProximityMap (const pandora::ClusterList &inputClusterList)
	Populate the cluster proximity map from a list of clusters.

void	BuildKDTree (const pandora::HitType hitType)
	Build the KD tree.

void	AddToClusterProximityMap (const pandora::Cluster *const pCluster)
	Add a cluster to the cluster proximity map.

Private Attributes
HitToClusterMap	m_hitToClusterMapU
	The mapping of hits to the clusters to which they belong (in the U view)

HitToClusterMap	m_hitToClusterMapV
	The mapping of hits to the clusters to which they belong (in the V view)

HitToClusterMap	m_hitToClusterMapW
	The mapping of hits to the clusters to which they belong (in the W view)

HitKDTree2D	m_kdTreeU
	The KD tree (in the U view)

HitKDTree2D	m_kdTreeV
	The KD tree (in the V view)

HitKDTree2D	m_kdTreeW
	The KD tree (in the W view)

ClusterProximityMap	m_clusterProximityMapU
	The mapping of clusters to their neighbouring clusters (in the U view)

ClusterProximityMap	m_clusterProximityMapV
	The mapping of clusters to their neighbouring clusters (in the V view)

ClusterProximityMap	m_clusterProximityMapW
	The mapping of clusters to their neighbouring clusters (in the W view)

ClusterToPfoMap	m_clusterToPfoMapU
	The mapping of cosmic ray U clusters to the cosmic ray pfos to which they belong.

ClusterToPfoMap	m_clusterToPfoMapV
	The mapping of cosmic ray V clusters to the cosmic ray pfos to which they belong.

ClusterToPfoMap	m_clusterToPfoMapW
	The mapping of cosmic ray W clusters to the cosmic ray pfos to which they belong.

Detailed Description

DeltaRayMatchingContainers class.

Definition at line 21 of file DeltaRayMatchingContainers.h.

Member Typedef Documentation

◆ ClusterProximityMap

typedef std::map<const pandora::Cluster *, pandora::ClusterList> lar_content::DeltaRayMatchingContainers::ClusterProximityMap

Definition at line 25 of file DeltaRayMatchingContainers.h.

◆ ClusterToPfoMap

typedef std::map<const pandora::Cluster *, const pandora::ParticleFlowObject *> lar_content::DeltaRayMatchingContainers::ClusterToPfoMap

Definition at line 24 of file DeltaRayMatchingContainers.h.

◆ HitKDNode2D

typedef KDTreeNodeInfoT<const pandora::CaloHit *, 2> lar_content::DeltaRayMatchingContainers::HitKDNode2D

private

Definition at line 90 of file DeltaRayMatchingContainers.h.

◆ HitKDNode2DList

typedef std::vector<HitKDNode2D> lar_content::DeltaRayMatchingContainers::HitKDNode2DList

private

Definition at line 91 of file DeltaRayMatchingContainers.h.

◆ HitKDTree2D

typedef KDTreeLinkerAlgo<const pandora::CaloHit *, 2> lar_content::DeltaRayMatchingContainers::HitKDTree2D

private

Definition at line 89 of file DeltaRayMatchingContainers.h.

◆ HitToClusterMap

typedef std::map<const pandora::CaloHit *, const pandora::Cluster *> lar_content::DeltaRayMatchingContainers::HitToClusterMap

private

Definition at line 88 of file DeltaRayMatchingContainers.h.

Constructor & Destructor Documentation

◆ DeltaRayMatchingContainers()

lar_content::DeltaRayMatchingContainers::DeltaRayMatchingContainers ( )

Default constructor.

Definition at line 23 of file DeltaRayMatchingContainers.cc.

Member Function Documentation

◆ AddClustersToContainers()

void lar_content::DeltaRayMatchingContainers::AddClustersToContainers	(	const pandora::ClusterVector &	newClusterVector,
		const pandora::PfoVector &	pfoVector
	)

Add a list of clusters to the hit to cluster and cluster proximity maps and, if appropriate, to the cluster to pfo map.

Parameters

newClusterVector	the ordered cluster vector
pfoVector	the matching ordered vector of pfos to which the clusters belong (nullptr if not applicable)

Definition at line 169 of file DeltaRayMatchingContainers.cc.

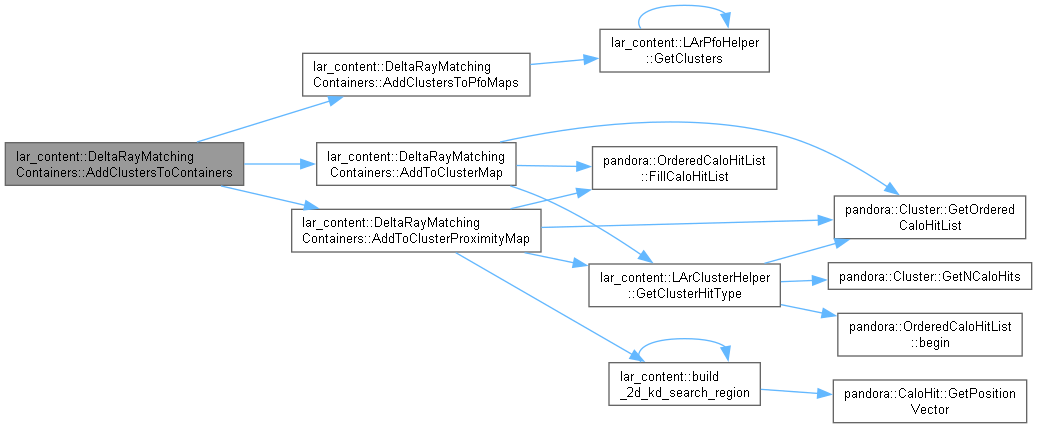

Here is the call graph for this function:

Here is the caller graph for this function:

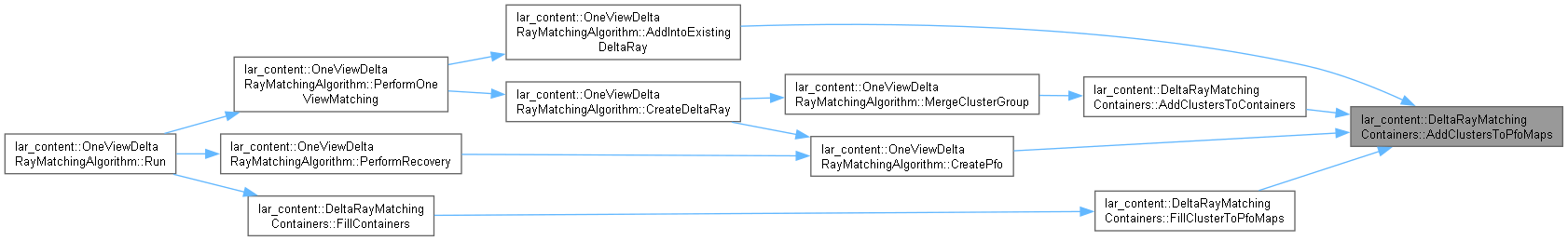

◆ AddClustersToPfoMaps()

void lar_content::DeltaRayMatchingContainers::AddClustersToPfoMaps ( const pandora::ParticleFlowObject *const pPfo )

Add the clusters of a cosmic ray/delta ray pfo to the cluster to pfo maps.

Parameters

the	address of the input cosmic ray/delta ray pfo

Definition at line 148 of file DeltaRayMatchingContainers.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

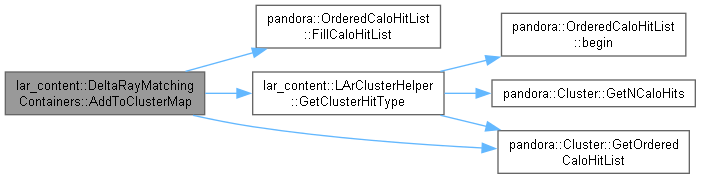

◆ AddToClusterMap()

void lar_content::DeltaRayMatchingContainers::AddToClusterMap ( const pandora::Cluster *const pCluster )

private

Add the hits of a given cluster to the hit to cluster map.

Parameters

pCluster the address of the input cluster

Definition at line 53 of file DeltaRayMatchingContainers.cc.

Here is the call graph for this function:

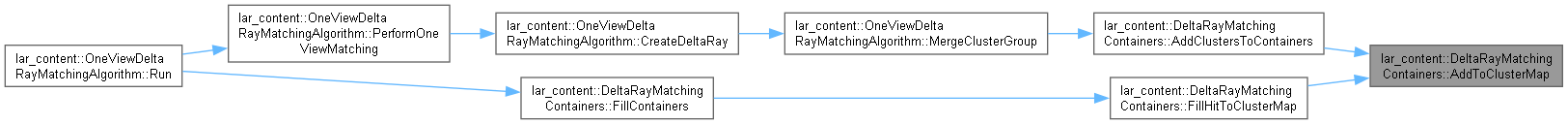

Here is the caller graph for this function:

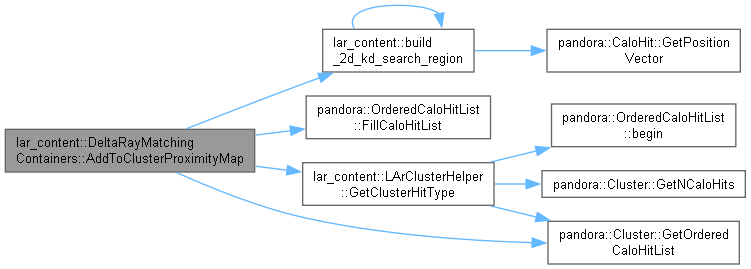

◆ AddToClusterProximityMap()

void lar_content::DeltaRayMatchingContainers::AddToClusterProximityMap ( const pandora::Cluster *const pCluster )

private

Add a cluster to the cluster proximity map.

Parameters

pCluster the address of the input cluster

Definition at line 100 of file DeltaRayMatchingContainers.cc.

Here is the call graph for this function:

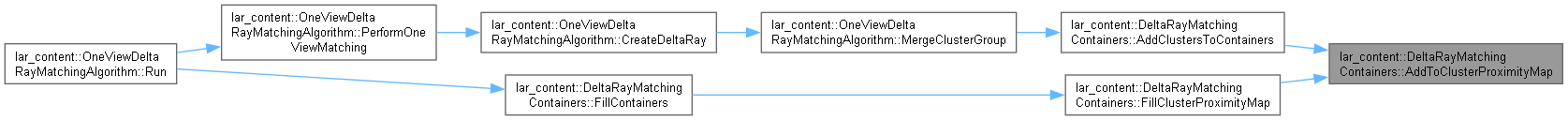

Here is the caller graph for this function:

◆ BuildKDTree()

void lar_content::DeltaRayMatchingContainers::BuildKDTree ( const pandora::HitType hitType )

private

Build the KD tree.

Parameters

hitType the hit type of the KD tree to build

Definition at line 82 of file DeltaRayMatchingContainers.cc.

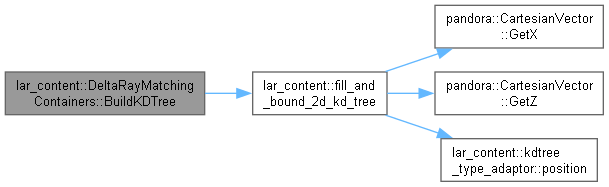

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ClearContainers()

void lar_content::DeltaRayMatchingContainers::ClearContainers ( )

Empty all algorithm containers.

Definition at line 239 of file DeltaRayMatchingContainers.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

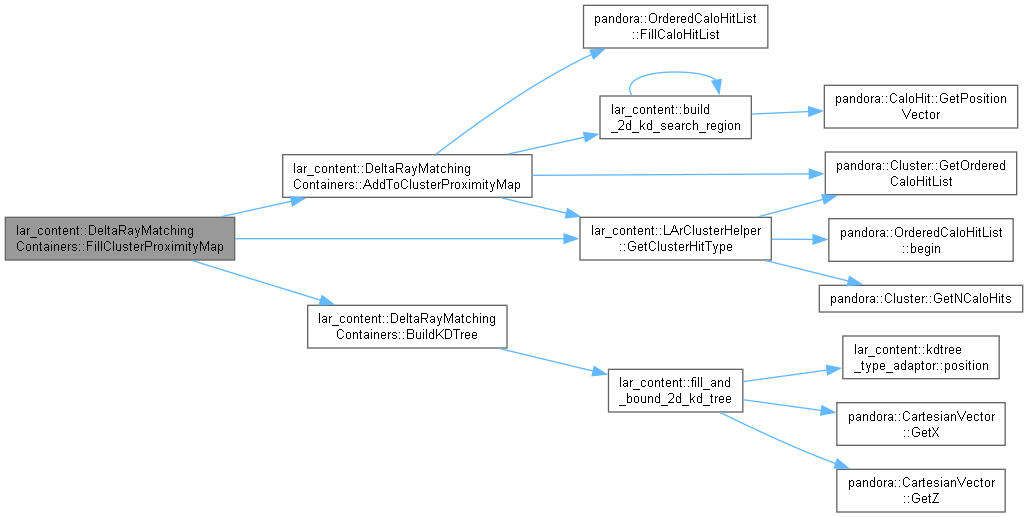

◆ FillClusterProximityMap()

void lar_content::DeltaRayMatchingContainers::FillClusterProximityMap ( const pandora::ClusterList & inputClusterList )

private

Populate the cluster proximity map from a list of clusters.

Parameters

inputClusterList the input list of clusters

Definition at line 67 of file DeltaRayMatchingContainers.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FillClusterToPfoMaps()

void lar_content::DeltaRayMatchingContainers::FillClusterToPfoMaps ( const pandora::PfoList & pfoList )

private

Populate all cluster to pfo maps from a list of particle flow objects.

Parameters

pfoList the input list of pfos

Definition at line 140 of file DeltaRayMatchingContainers.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FillContainers()

void lar_content::DeltaRayMatchingContainers::FillContainers	(	const pandora::PfoList &	inputPfoList,
		const pandora::ClusterList &	inputClusterList1,
		const pandora::ClusterList &	inputClusterList2 = `pandora::ClusterList()`,
		const pandora::ClusterList &	inputClusterList3 = `pandora::ClusterList()`
	)

Fill the HitToClusterMap, the ClusterProximityMap and the ClusterToPfoMap in all input views.

Parameters

inputPfoList	the input list of pfos
inputClusterList1	the input list of clusters in view 1
inputClusterList2	the input list of clusters in view 2
inputClusterList3	the input list of clusters in view 3

Definition at line 29 of file DeltaRayMatchingContainers.cc.

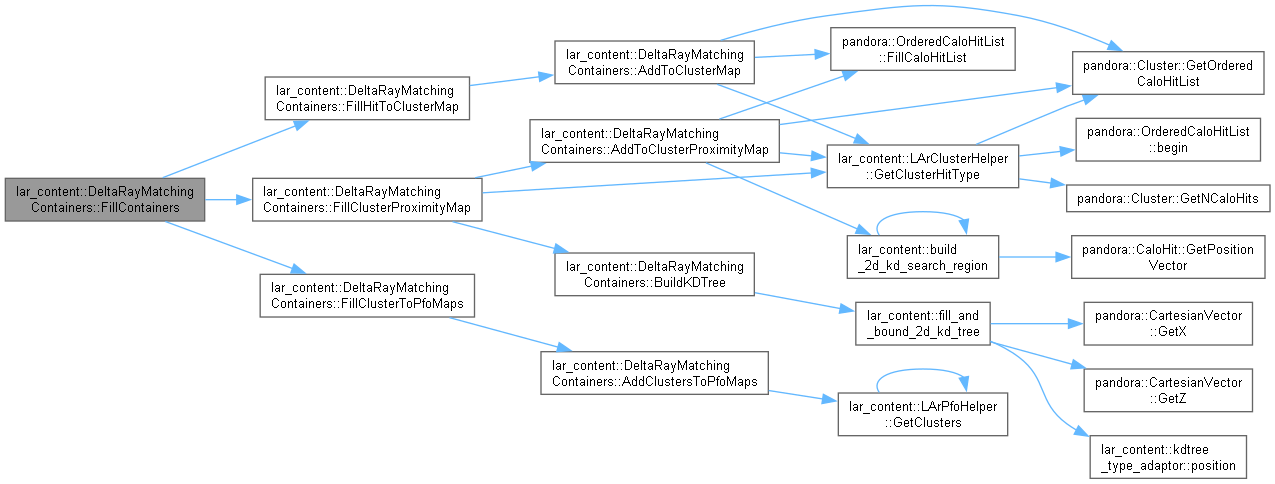

Here is the call graph for this function:

Here is the caller graph for this function:

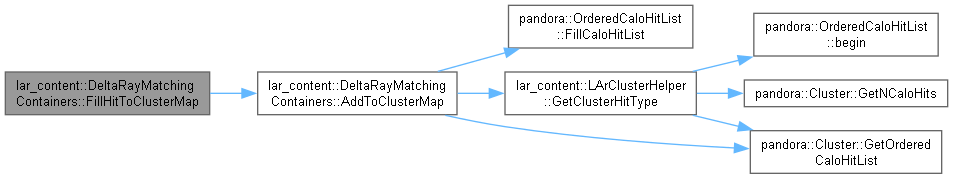

◆ FillHitToClusterMap()

void lar_content::DeltaRayMatchingContainers::FillHitToClusterMap ( const pandora::ClusterList & inputClusterList )

private

Populate the hit to cluster map from a list of clusters.

Parameters

inputClusterList the input list of clusters

Definition at line 45 of file DeltaRayMatchingContainers.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClusterProximityMap()

const DeltaRayMatchingContainers::ClusterProximityMap & lar_content::DeltaRayMatchingContainers::GetClusterProximityMap ( const pandora::HitType hitType ) const

inline

Get the mapping of clusters to to their neighbouring clusters.

Returns: the cluster to nearby cluster map

Definition at line 152 of file DeltaRayMatchingContainers.h.

Here is the caller graph for this function:

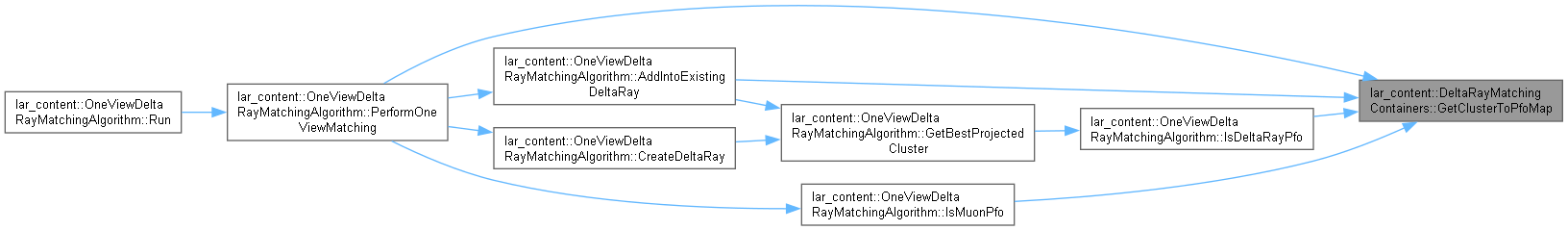

◆ GetClusterToPfoMap()

const DeltaRayMatchingContainers::ClusterToPfoMap & lar_content::DeltaRayMatchingContainers::GetClusterToPfoMap ( const pandora::HitType hitType ) const

inline

Get the mapping of clusters to the pfos to which they belong.

Returns: the cluster to pfo map

Definition at line 159 of file DeltaRayMatchingContainers.h.

Here is the caller graph for this function:

◆ RemoveClusterFromContainers()

void lar_content::DeltaRayMatchingContainers::RemoveClusterFromContainers ( const pandora::Cluster *const pDeletedCluster )

Remove an input cluster's hits from the hit to cluster and cluster proximity maps and, if appropriate, from the cluster to pfo map.

Parameters

pDeletedCluster the input cluster

Definition at line 188 of file DeltaRayMatchingContainers.cc.

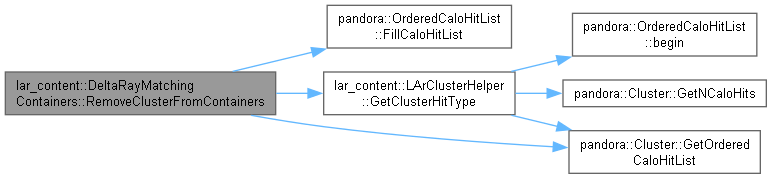

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_clusterProximityMapU

ClusterProximityMap lar_content::DeltaRayMatchingContainers::m_clusterProximityMapU

private

The mapping of clusters to their neighbouring clusters (in the U view)

Definition at line 141 of file DeltaRayMatchingContainers.h.

◆ m_clusterProximityMapV

ClusterProximityMap lar_content::DeltaRayMatchingContainers::m_clusterProximityMapV

private

The mapping of clusters to their neighbouring clusters (in the V view)

Definition at line 142 of file DeltaRayMatchingContainers.h.

◆ m_clusterProximityMapW

ClusterProximityMap lar_content::DeltaRayMatchingContainers::m_clusterProximityMapW

private

The mapping of clusters to their neighbouring clusters (in the W view)

Definition at line 143 of file DeltaRayMatchingContainers.h.

◆ m_clusterToPfoMapU

ClusterToPfoMap lar_content::DeltaRayMatchingContainers::m_clusterToPfoMapU

private

The mapping of cosmic ray U clusters to the cosmic ray pfos to which they belong.

Definition at line 144 of file DeltaRayMatchingContainers.h.

◆ m_clusterToPfoMapV

ClusterToPfoMap lar_content::DeltaRayMatchingContainers::m_clusterToPfoMapV

private

The mapping of cosmic ray V clusters to the cosmic ray pfos to which they belong.

Definition at line 145 of file DeltaRayMatchingContainers.h.

◆ m_clusterToPfoMapW

ClusterToPfoMap lar_content::DeltaRayMatchingContainers::m_clusterToPfoMapW

private

The mapping of cosmic ray W clusters to the cosmic ray pfos to which they belong.

Definition at line 146 of file DeltaRayMatchingContainers.h.

◆ m_hitToClusterMapU

HitToClusterMap lar_content::DeltaRayMatchingContainers::m_hitToClusterMapU

private

The mapping of hits to the clusters to which they belong (in the U view)

Definition at line 135 of file DeltaRayMatchingContainers.h.

◆ m_hitToClusterMapV

HitToClusterMap lar_content::DeltaRayMatchingContainers::m_hitToClusterMapV

private

The mapping of hits to the clusters to which they belong (in the V view)

Definition at line 136 of file DeltaRayMatchingContainers.h.

◆ m_hitToClusterMapW

HitToClusterMap lar_content::DeltaRayMatchingContainers::m_hitToClusterMapW

private

The mapping of hits to the clusters to which they belong (in the W view)

Definition at line 137 of file DeltaRayMatchingContainers.h.

◆ m_kdTreeU

HitKDTree2D lar_content::DeltaRayMatchingContainers::m_kdTreeU

private

The KD tree (in the U view)

Definition at line 138 of file DeltaRayMatchingContainers.h.

◆ m_kdTreeV

HitKDTree2D lar_content::DeltaRayMatchingContainers::m_kdTreeV

private

The KD tree (in the V view)

Definition at line 139 of file DeltaRayMatchingContainers.h.

◆ m_kdTreeW

HitKDTree2D lar_content::DeltaRayMatchingContainers::m_kdTreeW

private

The KD tree (in the W view)

Definition at line 140 of file DeltaRayMatchingContainers.h.

◆ m_searchRegion1D

float lar_content::DeltaRayMatchingContainers::m_searchRegion1D

Search region, applied to each dimension, for look-up from kd-tree.

Definition at line 85 of file DeltaRayMatchingContainers.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArThreeDReco/LArCosmicRay/DeltaRayMatchingContainers.h
LArContent/larpandoracontent/LArThreeDReco/LArCosmicRay/DeltaRayMatchingContainers.cc

Public Types

Public Member Functions

Public Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterProximityMap

◆ ClusterToPfoMap

◆ HitKDNode2D

◆ HitKDNode2DList

◆ HitKDTree2D

◆ HitToClusterMap

Constructor & Destructor Documentation

◆ DeltaRayMatchingContainers()

Member Function Documentation

◆ AddClustersToContainers()

◆ AddClustersToPfoMaps()

◆ AddToClusterMap()

◆ AddToClusterProximityMap()

◆ BuildKDTree()

◆ ClearContainers()

◆ FillClusterProximityMap()

◆ FillClusterToPfoMaps()

◆ FillContainers()

◆ FillHitToClusterMap()

◆ GetClusterProximityMap()

◆ GetClusterToPfoMap()

◆ RemoveClusterFromContainers()

Member Data Documentation

◆ m_clusterProximityMapU

◆ m_clusterProximityMapV

◆ m_clusterProximityMapW

◆ m_clusterToPfoMapU

◆ m_clusterToPfoMapV

◆ m_clusterToPfoMapW

◆ m_hitToClusterMapU

◆ m_hitToClusterMapV

◆ m_hitToClusterMapW

◆ m_kdTreeU

◆ m_kdTreeV

◆ m_kdTreeW

◆ m_searchRegion1D
