lar_content::AdaBoostDecisionTree Class Reference

AdaBoostDecisionTree class. More...

#include "LArAdaBoostDecisionTree.h"

Inheritance diagram for lar_content::AdaBoostDecisionTree:

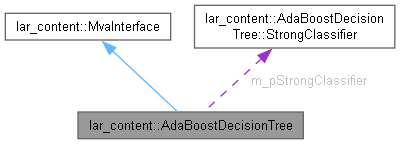

Collaboration diagram for lar_content::AdaBoostDecisionTree:

Classes
class	Node
	Node class used for representing a decision tree. More...
class	StrongClassifier
	StrongClassifier class used in application of adaptive boost decision tree. More...
class	WeakClassifier
	WeakClassifier class containing a decision tree and a weight. More...

Public Member Functions
	AdaBoostDecisionTree ()
	Constructor.
	AdaBoostDecisionTree (const AdaBoostDecisionTree &rhs)
	Copy constructor.
AdaBoostDecisionTree &	operator= (const AdaBoostDecisionTree &rhs)
	Assignment operator.
	~AdaBoostDecisionTree ()
	Destructor.
pandora::StatusCode	Initialize (const std::string &parameterLocation, const std::string &bdtName)
	Initialize the bdt model.
bool	Classify (const LArMvaHelper::MvaFeatureVector &features) const
	Classify the set of input features based on the trained model.
double	CalculateClassificationScore (const LArMvaHelper::MvaFeatureVector &features) const
	Calculate the classification score for a set of input features, based on the trained model.
double	CalculateProbability (const LArMvaHelper::MvaFeatureVector &features) const
	Calculate the classification probability for a set of input features, based on the trained model.

Private Types
typedef std::map< int, const Node * >	IdToNodeMap
typedef std::vector< const WeakClassifier * >	WeakClassifiers

Private Member Functions
double	CalculateScore (const LArMvaHelper::MvaFeatureVector &features) const
	Calculate score for input features using strong classifier.

Private Attributes
StrongClassifier *	m_pStrongClassifier
	Strong adaptive boost tree classifier.

Detailed Description

AdaBoostDecisionTree class.

Definition at line 27 of file LArAdaBoostDecisionTree.h.

Member Typedef Documentation

IdToNodeMap

typedef std::map<int, const Node *> lar_content::AdaBoostDecisionTree::IdToNodeMap

private

Definition at line 191 of file LArAdaBoostDecisionTree.h.

WeakClassifiers

typedef std::vector<const WeakClassifier *> lar_content::AdaBoostDecisionTree::WeakClassifiers

private

Definition at line 264 of file LArAdaBoostDecisionTree.h.

Constructor & Destructor Documentation

AdaBoostDecisionTree() [1/2]

lar_content::AdaBoostDecisionTree::AdaBoostDecisionTree

(

)

Constructor.

Definition at line 18 of file LArAdaBoostDecisionTree.cc.

AdaBoostDecisionTree() [2/2]

lar_content::AdaBoostDecisionTree::AdaBoostDecisionTree

(

const AdaBoostDecisionTree &

rhs

)

Copy constructor.

Parameters

rhs	the AdaBoostDecisionTree to copy

Definition at line 24 of file LArAdaBoostDecisionTree.cc.

~AdaBoostDecisionTree()

lar_content::AdaBoostDecisionTree::~AdaBoostDecisionTree

(

)

Destructor.

Definition at line 41 of file LArAdaBoostDecisionTree.cc.

Member Function Documentation

CalculateClassificationScore()

double lar_content::AdaBoostDecisionTree::CalculateClassificationScore ( const LArMvaHelper::MvaFeatureVector &  features ) const

virtual

Calculate the classification score for a set of input features, based on the trained model.

Parameters

features

the input features

Returns

the classification score

Implements lar_content::MvaInterface.

Definition at line 126 of file LArAdaBoostDecisionTree.cc.

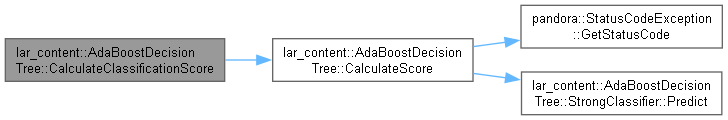

Here is the call graph for this function:

CalculateProbability()

double lar_content::AdaBoostDecisionTree::CalculateProbability ( const LArMvaHelper::MvaFeatureVector &  features ) const

virtual

Calculate the classification probability for a set of input features, based on the trained model.

Parameters

features

the input features

Returns

the classification probability

Implements lar_content::MvaInterface.

Definition at line 133 of file LArAdaBoostDecisionTree.cc.

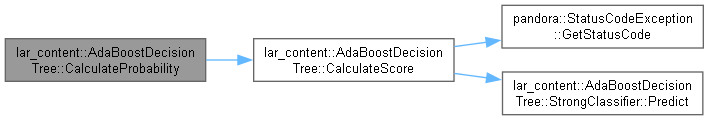

Here is the call graph for this function:

CalculateScore()

double lar_content::AdaBoostDecisionTree::CalculateScore ( const LArMvaHelper::MvaFeatureVector &  features ) const

private

Calculate score for input features using strong classifier.

Parameters

features

the input features

Returns

score

Definition at line 142 of file LArAdaBoostDecisionTree.cc.

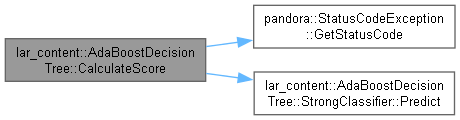

Here is the call graph for this function:

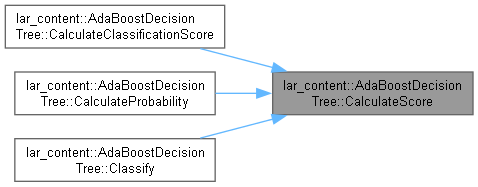

Here is the caller graph for this function:

Classify()

bool lar_content::AdaBoostDecisionTree::Classify ( const LArMvaHelper::MvaFeatureVector &  features ) const

virtual

Classify the set of input features based on the trained model.

Parameters

features

the input features

Returns

the classification

Implements lar_content::MvaInterface.

Definition at line 119 of file LArAdaBoostDecisionTree.cc.

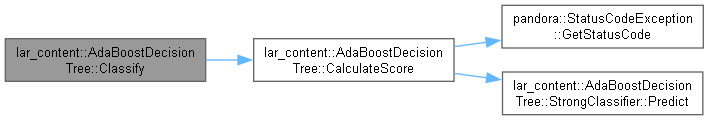

Here is the call graph for this function:

Initialize()

StatusCode lar_content::AdaBoostDecisionTree::Initialize	(	const std::string &	parameterLocation,
		const std::string &	bdtName
	)

Initialize the bdt model.

Parameters

parameterLocation	the location of the model
bdtName	the name of the model

Returns

success

Definition at line 48 of file LArAdaBoostDecisionTree.cc.

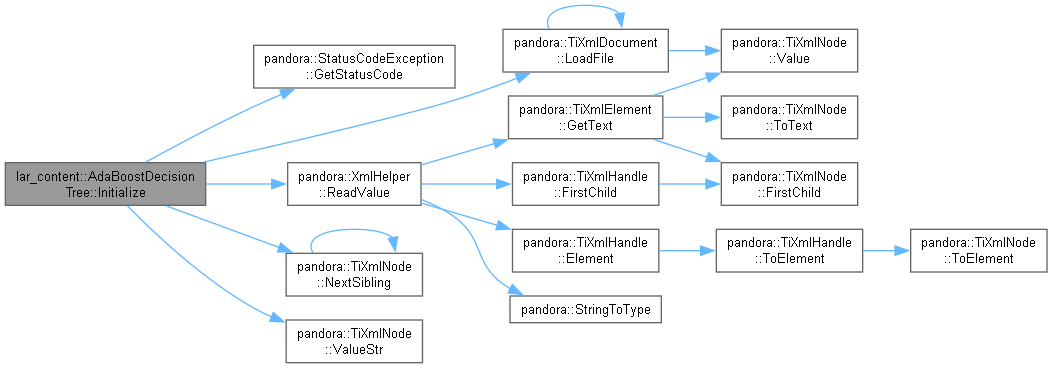

Here is the call graph for this function:

Here is the caller graph for this function:

operator=()

AdaBoostDecisionTree & lar_content::AdaBoostDecisionTree::operator=

(

const AdaBoostDecisionTree &

rhs

)

Assignment operator.

Parameters

rhs	the AdaBoostDecisionTree to assign

Definition at line 31 of file LArAdaBoostDecisionTree.cc.

Member Data Documentation

m_pStrongClassifier

StrongClassifier* lar_content::AdaBoostDecisionTree::m_pStrongClassifier

private

Strong adaptive boost tree classifier.

Definition at line 325 of file LArAdaBoostDecisionTree.h.

---

The documentation for this class was generated from the following files:

• LArContent/larpandoracontent/LArObjects/LArAdaBoostDecisionTree.h
• LArContent/larpandoracontent/LArObjects/LArAdaBoostDecisionTree.cc
