MultiPandoraApiImpl class. More...

#include "MultiPandoraApiImpl.h"

Private Types
typedef std::unordered_map< const pandora::Pandora , const pandora::Pandora >	PandoraRelationMap

typedef std::unordered_map< const pandora::Pandora *, unsigned int >	PandoraToVolumeIdMap

Private Member Functions
	MultiPandoraApiImpl ()
	Default constructor;.

	~MultiPandoraApiImpl ()
	Destructor;.

const PandoraInstanceMap &	GetPandoraInstanceMap () const
	Get the pandora instance map.

const pandora::Pandora *	GetPandoraInstance (const pandora::Pandora *const pPrimaryPandora, const unsigned int volumeId) const
	Get the address of the pandora instance associated with a given primary pandora instance and volume id number.

const PandoraInstanceList &	GetDaughterPandoraInstanceList (const pandora::Pandora *const pPrimaryPandora) const
	Get the list of daughter pandora instances associated with a given primary pandora instance.

const pandora::Pandora *	GetPrimaryPandoraInstance (const pandora::Pandora *const pDaughterPandora) const
	Get the address of the primary pandora instance associated with a given daughter pandora instance.

unsigned int	GetVolumeId (const pandora::Pandora *const pPandora) const
	Get the volume id associated with a given pandora instance.

void	AddPrimaryPandoraInstance (const pandora::Pandora *const pPrimaryPandora)
	Declare a new primary pandora instance.

void	AddDaughterPandoraInstance (const pandora::Pandora const pPrimaryPandora, const pandora::Pandora const pDaughterPandora)
	Add a pandora daughter instance, associated to a primary pandora instance.

void	DeletePandoraInstances (const pandora::Pandora *const pPrimaryPandora)
	Delete all pandora instances associated with (and including) a specified primary pandora instance.

void	SetVolumeId (const pandora::Pandora *const pPandora, const unsigned int volumeId)
	Set the volume id associated with a given pandora instance.

Private Attributes
PandoraInstanceMap	m_primaryToDaughtersMap
	The map from primary pandora instance to list of daughter pandora instances.

PandoraRelationMap	m_daughterToPrimaryMap
	The map from daughter pandora instance to primary pandora instance.

PandoraToVolumeIdMap	m_pandoraToVolumeIdMap
	The map from pandora instance to volume id.

Friends
class	MultiPandoraApi

Detailed Description

MultiPandoraApiImpl class.

Definition at line 21 of file MultiPandoraApiImpl.h.

Member Typedef Documentation

◆ PandoraRelationMap

typedef std::unordered_map<const pandora::Pandora *, const pandora::Pandora *> MultiPandoraApiImpl::PandoraRelationMap

private

Definition at line 108 of file MultiPandoraApiImpl.h.

◆ PandoraToVolumeIdMap

typedef std::unordered_map<const pandora::Pandora *, unsigned int> MultiPandoraApiImpl::PandoraToVolumeIdMap

private

Definition at line 109 of file MultiPandoraApiImpl.h.

Constructor & Destructor Documentation

◆ MultiPandoraApiImpl()

MultiPandoraApiImpl::MultiPandoraApiImpl ( )

private

Default constructor;.

Definition at line 90 of file MultiPandoraApiImpl.cc.

◆ ~MultiPandoraApiImpl()

MultiPandoraApiImpl::~MultiPandoraApiImpl ( )

private

Destructor;.

Definition at line 96 of file MultiPandoraApiImpl.cc.

Here is the call graph for this function:

Member Function Documentation

◆ AddDaughterPandoraInstance()

void MultiPandoraApiImpl::AddDaughterPandoraInstance	(	const pandora::Pandora *const	pPrimaryPandora,
		const pandora::Pandora *const	pDaughterPandora
	)

private

Add a pandora daughter instance, associated to a primary pandora instance.

Parameters

pPrimaryPandora	the address of the primary pandora instance
pDaughterPandora	the address of the daughter pandora instance

Definition at line 115 of file MultiPandoraApiImpl.cc.

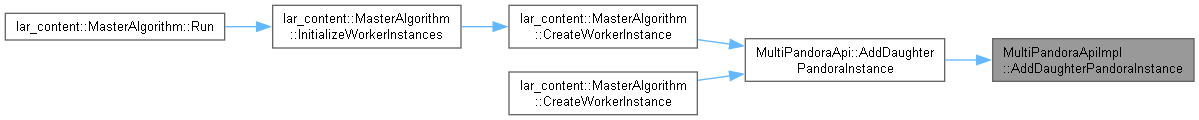

Here is the caller graph for this function:

◆ AddPrimaryPandoraInstance()

void MultiPandoraApiImpl::AddPrimaryPandoraInstance ( const pandora::Pandora *const pPrimaryPandora )

private

Declare a new primary pandora instance.

Parameters

pPrimaryPandora the address of the primary pandora instance

Definition at line 107 of file MultiPandoraApiImpl.cc.

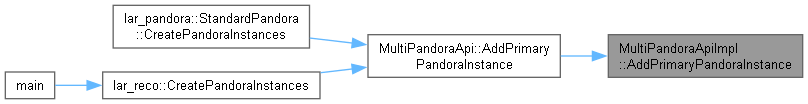

Here is the caller graph for this function:

◆ DeletePandoraInstances()

void MultiPandoraApiImpl::DeletePandoraInstances ( const pandora::Pandora *const pPrimaryPandora )

private

Delete all pandora instances associated with (and including) a specified primary pandora instance.

Parameters

pPrimaryPandora the address of the primary pandora instance

Definition at line 130 of file MultiPandoraApiImpl.cc.

Here is the call graph for this function:

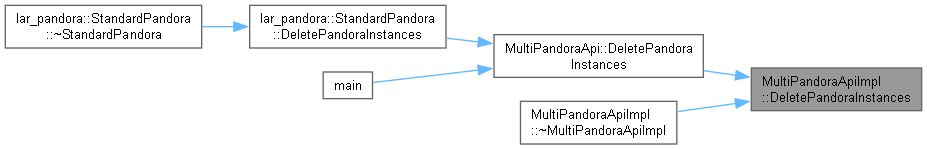

Here is the caller graph for this function:

◆ GetDaughterPandoraInstanceList()

const PandoraInstanceList & MultiPandoraApiImpl::GetDaughterPandoraInstanceList ( const pandora::Pandora *const pPrimaryPandora ) const

private

Get the list of daughter pandora instances associated with a given primary pandora instance.

Parameters

pPrimaryPandora the address of the primary pandora instance

Returns: the daughter pandora instance list

Definition at line 43 of file MultiPandoraApiImpl.cc.

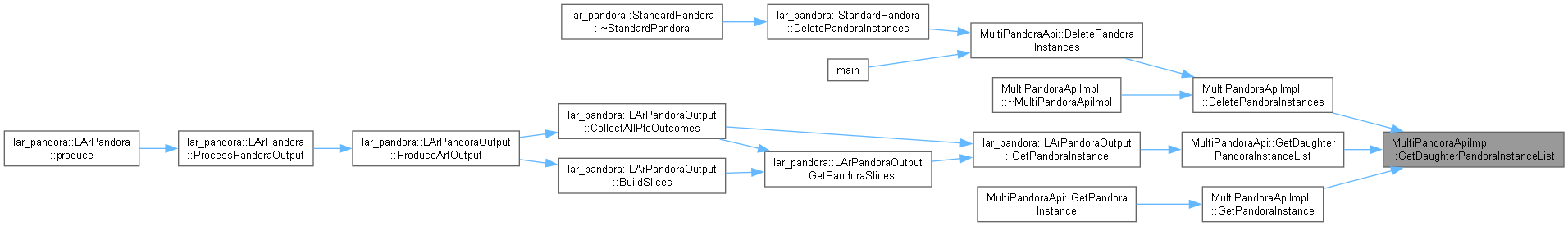

Here is the caller graph for this function:

◆ GetPandoraInstance()

const pandora::Pandora * MultiPandoraApiImpl::GetPandoraInstance	(	const pandora::Pandora *const	pPrimaryPandora,
		const unsigned int	volumeId
	)		const

private

Get the address of the pandora instance associated with a given primary pandora instance and volume id number.

Parameters

pPrimaryPandora	the address of the primary pandora instance
volumeId	the volume identifier number

Returns: the address of the pandora instance

Definition at line 21 of file MultiPandoraApiImpl.cc.

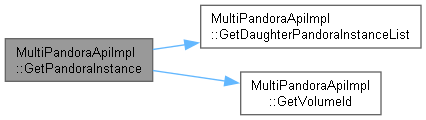

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandoraInstanceMap()

const PandoraInstanceMap & MultiPandoraApiImpl::GetPandoraInstanceMap ( ) const

private

Get the pandora instance map.

Returns: the pandora instance map

Definition at line 14 of file MultiPandoraApiImpl.cc.

Here is the caller graph for this function:

◆ GetPrimaryPandoraInstance()

const pandora::Pandora * MultiPandoraApiImpl::GetPrimaryPandoraInstance ( const pandora::Pandora *const pDaughterPandora ) const

private

Get the address of the primary pandora instance associated with a given daughter pandora instance.

Parameters

pDaughterPandora the address of the daughter pandora instance

Returns: the address of the primary pandora instance

Definition at line 55 of file MultiPandoraApiImpl.cc.

Here is the caller graph for this function:

◆ GetVolumeId()

unsigned int MultiPandoraApiImpl::GetVolumeId ( const pandora::Pandora *const pPandora ) const

private

Get the volume id associated with a given pandora instance.

Parameters

pPandora the address of the pandora instance

Returns: the volume id

Definition at line 67 of file MultiPandoraApiImpl.cc.

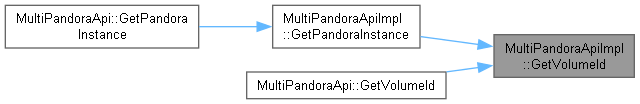

Here is the caller graph for this function:

◆ SetVolumeId()

void MultiPandoraApiImpl::SetVolumeId	(	const pandora::Pandora *const	pPandora,
		const unsigned int	volumeId
	)

private

Set the volume id associated with a given pandora instance.

Parameters

pPandora	the address of the pandora instance
volumeId	the volume id

Definition at line 79 of file MultiPandoraApiImpl.cc.

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ MultiPandoraApi

friend class MultiPandoraApi

friend

Definition at line 115 of file MultiPandoraApiImpl.h.

Member Data Documentation

◆ m_daughterToPrimaryMap

PandoraRelationMap MultiPandoraApiImpl::m_daughterToPrimaryMap

private

The map from daughter pandora instance to primary pandora instance.

Definition at line 112 of file MultiPandoraApiImpl.h.

◆ m_pandoraToVolumeIdMap

PandoraToVolumeIdMap MultiPandoraApiImpl::m_pandoraToVolumeIdMap

private

The map from pandora instance to volume id.

Definition at line 113 of file MultiPandoraApiImpl.h.

◆ m_primaryToDaughtersMap

PandoraInstanceMap MultiPandoraApiImpl::m_primaryToDaughtersMap

private

The map from primary pandora instance to list of daughter pandora instances.

Definition at line 111 of file MultiPandoraApiImpl.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArControlFlow/MultiPandoraApiImpl.h
LArContent/larpandoracontent/LArControlFlow/MultiPandoraApiImpl.cc
