#include "MultiPandoraApi.h"

Collaboration diagram for MultiPandoraApi:

Static Public Member Functions
static const PandoraInstanceMap &	GetPandoraInstanceMap ()
	Get the pandora instance map.

static const pandora::Pandora *	GetPandoraInstance (const pandora::Pandora *const pPrimaryPandora, const unsigned int volumeId)
	Get the address of the pandora instance associated with a given primary pandora instance and volume id number.

static const PandoraInstanceList &	GetDaughterPandoraInstanceList (const pandora::Pandora *const pPrimaryPandora)
	Get the list of daughter pandora instances associated with a given primary pandora instance.

static const pandora::Pandora *	GetPrimaryPandoraInstance (const pandora::Pandora *const pDaughterPandora)
	Get the address of the primary pandora instance associated with a given daughter pandora instance.

static unsigned int	GetVolumeId (const pandora::Pandora *const pPandora)
	Get the volume id associated with a given pandora instance.

static void	AddPrimaryPandoraInstance (const pandora::Pandora *const pPrimaryPandora)
	Declare a new primary pandora instance and receive the relevant multi pandora book-keeping instance.

static void	AddDaughterPandoraInstance (const pandora::Pandora const pPrimaryPandora, const pandora::Pandora const pDaughterPandora)
	Add a pandora daughter instance, associated to a primary pandora instance.

static void	DeletePandoraInstances (const pandora::Pandora *const pPrimaryPandora)
	Delete all pandora instances associated with (and including) a specified primary pandora instance.

static void	SetVolumeId (const pandora::Pandora *const pPandora, const unsigned int volumeId)
	Set the volume id associated with a given pandora instance.

Static Private Attributes
static MultiPandoraApiImpl	m_multiPandoraApiImpl
	The multi pandora api implementation.

Detailed Description

MultiPandoraApi class.

Definition at line 30 of file MultiPandoraApi.h.

Member Function Documentation

◆ AddDaughterPandoraInstance()

void MultiPandoraApi::AddDaughterPandoraInstance	(	const pandora::Pandora *const	pPrimaryPandora,
		const pandora::Pandora *const	pDaughterPandora
	)

static

Add a pandora daughter instance, associated to a primary pandora instance.

Parameters

pPrimaryPandora	the address of the primary pandora instance
pDaughterPandora	the address of the daughter pandora instance

Definition at line 61 of file MultiPandoraApi.cc.

Here is the call graph for this function:

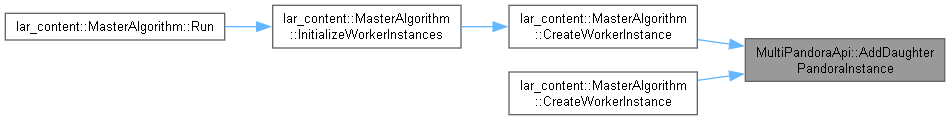

Here is the caller graph for this function:

◆ AddPrimaryPandoraInstance()

void MultiPandoraApi::AddPrimaryPandoraInstance ( const pandora::Pandora *const pPrimaryPandora )

static

Declare a new primary pandora instance and receive the relevant multi pandora book-keeping instance.

Parameters

pPrimaryPandora the address of the primary pandora instance

Returns: the multipandora instance

Definition at line 54 of file MultiPandoraApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeletePandoraInstances()

void MultiPandoraApi::DeletePandoraInstances ( const pandora::Pandora *const pPrimaryPandora )

static

Delete all pandora instances associated with (and including) a specified primary pandora instance.

Parameters

pPrimaryPandora the address of the primary pandora instance

Definition at line 68 of file MultiPandoraApi.cc.

Here is the call graph for this function:

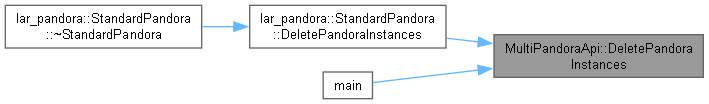

Here is the caller graph for this function:

◆ GetDaughterPandoraInstanceList()

const PandoraInstanceList & MultiPandoraApi::GetDaughterPandoraInstanceList ( const pandora::Pandora *const pPrimaryPandora )

static

Get the list of daughter pandora instances associated with a given primary pandora instance.

Parameters

pPrimaryPandora the address of the primary pandora instance

Returns: the daughter pandora instance list

Definition at line 33 of file MultiPandoraApi.cc.

Here is the call graph for this function:

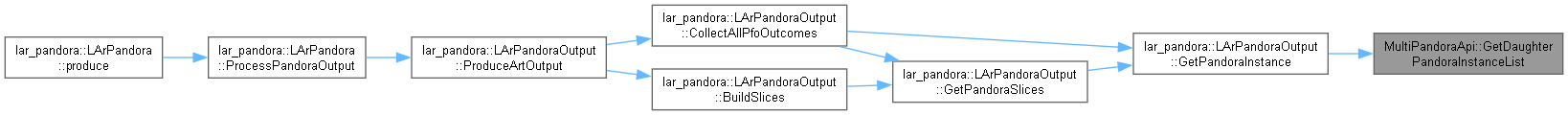

Here is the caller graph for this function:

◆ GetPandoraInstance()

const pandora::Pandora * MultiPandoraApi::GetPandoraInstance	(	const pandora::Pandora *const	pPrimaryPandora,
		const unsigned int	volumeId
	)

static

Get the address of the pandora instance associated with a given primary pandora instance and volume id number.

Parameters

pPrimaryPandora	the address of the primary pandora instance
volumeId	the volume identifier number

Returns: the address of the pandora instance

Definition at line 26 of file MultiPandoraApi.cc.

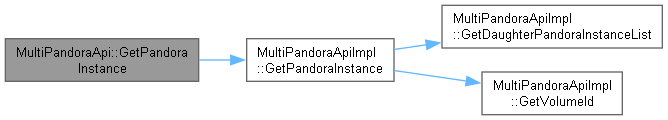

Here is the call graph for this function:

◆ GetPandoraInstanceMap()

const PandoraInstanceMap & MultiPandoraApi::GetPandoraInstanceMap ( )

static

Get the pandora instance map.

Returns: the pandora instance map

Definition at line 19 of file MultiPandoraApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPrimaryPandoraInstance()

const pandora::Pandora * MultiPandoraApi::GetPrimaryPandoraInstance ( const pandora::Pandora *const pDaughterPandora )

static

Get the address of the primary pandora instance associated with a given daughter pandora instance.

Parameters

pDaughterPandora the address of the daughter pandora instance

Returns: the address of the primary pandora instance

Definition at line 40 of file MultiPandoraApi.cc.

Here is the call graph for this function:

◆ GetVolumeId()

unsigned int MultiPandoraApi::GetVolumeId ( const pandora::Pandora *const pPandora )

static

Get the volume id associated with a given pandora instance.

Parameters

pPandora the address of the pandora instance

Returns: the volume id

Definition at line 47 of file MultiPandoraApi.cc.

Here is the call graph for this function:

◆ SetVolumeId()

void MultiPandoraApi::SetVolumeId	(	const pandora::Pandora *const	pPandora,
		const unsigned int	volumeId
	)

static

Set the volume id associated with a given pandora instance.

Parameters

pPandora	the address of the pandora instance
volumeId	the volume id

Definition at line 75 of file MultiPandoraApi.cc.

Here is the call graph for this function:

Member Data Documentation

◆ m_multiPandoraApiImpl

MultiPandoraApiImpl MultiPandoraApi::m_multiPandoraApiImpl

staticprivate

The multi pandora api implementation.

Definition at line 110 of file MultiPandoraApi.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArControlFlow/MultiPandoraApi.h
LArContent/larpandoracontent/LArControlFlow/MultiPandoraApi.cc
