TwoDHistogram class. More...

#include "Histograms.h"

Public Member Functions
	TwoDHistogram (const unsigned int nBinsX, const float xLow, const float xHigh, const unsigned int nBinsY, const float yLow, const float yHigh)
	Constructor.

	TwoDHistogram (const TiXmlHandle *const pXmlHandle, const std::string &xmlElementName)
	Constructor.

	TwoDHistogram (const TwoDHistogram &rhs)
	Copy constructor.

int	GetNBinsX () const
	Get the number of x bins.

float	GetXLow () const
	Get the min binned x value.

float	GetXHigh () const
	Get the max binned x value.

float	GetXBinWidth () const
	Get the x bin width.

int	GetNBinsY () const
	Get the number of y bins.

float	GetYLow () const
	Get the min binned y value.

float	GetYHigh () const
	Get the max binned y value.

float	GetYBinWidth () const
	Get the y bin width.

float	GetBinContent (const int binX, const int binY) const
	Get the content of a specified bin.

int	GetBinNumberX (const float valueX) const
	Get the x bin number for a specified x value.

int	GetMinBinNumberX () const
	Get the min x bin number of the histogram (ignores overflow and underflow bins)

int	GetMaxBinNumberX () const
	Get the max x bin number of the histogram (ignores overflow and underflow bins)

int	GetUnderflowBinNumberX () const
	Get the underflow x bin number of the histogram.

int	GetOverflowBinNumberX () const
	Get the overflow x bin number of the histogram.

int	GetBinNumberY (const float valueY) const
	Get the y bin number for a specified value.

int	GetMinBinNumberY () const
	Get the min y bin number of the histogram (ignores overflow and underflow bins)

int	GetMaxBinNumberY () const
	Get the max y bin number of the histogram (ignores overflow and underflow bins)

int	GetUnderflowBinNumberY () const
	Get the underflow y bin number of the histogram.

int	GetOverflowBinNumberY () const
	Get the overflow y bin number of the histogram.

float	GetCumulativeSum () const
	Get the cumulative sum of bin entries in the histogram (ignores overflow and underflow bins)

float	GetCumulativeSum (const int xLowBin, const int xHighBin, const int yLowBin, const int yHighBin) const
	Get the cumulative sum of bin entries in a specified range of the histogram (includes overflow and underflow bins if specified)

void	GetMaximum (float &maximumValue, int &maximumBinX, int &maximumBinY) const
	Get the maximum value in the histogram and the corresponding bin numbers (ignores overflow and underflow bins)

void	GetMaximum (const int xLowBin, const int xHighBin, const int yLowBin, const int yHighBin, float &maximumValue, int &maximumBinX, int &maximumBinY) const
	Get the maximum value in a specified range of the histogram and the corresponding bin numbers (includes overflow and underflow bins if specified)

float	GetMeanX () const
	Get the mean x value of entries in the histogram (ignores overflow and underflow bins)

float	GetMeanX (const int xLowBin, const int xHighBin, const int yLowBin, const int yHighBin) const
	Get the mean x value of entries in a specified range of the histogram (ignores overflow and underflow bins)

float	GetStandardDeviationX () const
	Get the standard deviation of x entries in the histogram (ignores overflow and underflow bins)

float	GetStandardDeviationX (const int xLowBin, const int xHighBin, const int yLowBin, const int yHighBin) const
	Get the standard deviation of x entries in a specified range of the histogram (ignores overflow and underflow bins)

float	GetMeanY () const
	Get the mean y value of entries in the histogram (ignores overflow and underflow bins)

float	GetMeanY (const int xLowBin, const int xHighBin, const int yLowBin, const int yHighBin) const
	Get the mean y value of entries in a specified range of the histogram (ignores overflow and underflow bins)

float	GetStandardDeviationY () const
	Get the standard deviation of y entries in the histogram (ignores overflow and underflow bins)

float	GetStandardDeviationY (const int xLowBin, const int xHighBin, const int yLowBin, const int yHighBin) const
	Get the standard deviation of y entries in a specified range of the histogram (ignores overflow and underflow bins)

void	SetBinContent (const int binX, const int binY, const float value)
	Set the contents of a specified bin.

void	Fill (const float valueX, const float valueY, const float weight=1.f)
	Add an entry to the histogram.

void	Scale (const float scaleFactor)
	Scale contents of all histogram bins by a specified factor.

void	WriteToXml (TiXmlDocument *const pTiXmlDocument, const std::string &xmlElementName) const
	Write the histogram to an xml document.

Private Types
typedef std::map< int, float >	HistogramMap

typedef std::map< int, HistogramMap >	TwoDHistogramMap

Private Attributes
TwoDHistogramMap	m_xyHistogramMap
	The x->y->value 2d histogram map.

TwoDHistogramMap	m_yxHistogramMap
	The y->x->value 2d histogram map.

int	m_nBinsX
	The number of x bins.

float	m_xLow
	The min binned x value.

float	m_xHigh
	The max binned x value.

float	m_xBinWidth
	The x bin width.

int	m_nBinsY
	The number of y bins.

float	m_yLow
	The min binned y value.

float	m_yHigh
	The max binned y value.

float	m_yBinWidth
	The y bin width.

Detailed Description

TwoDHistogram class.

Definition at line 252 of file Histograms.h.

Member Typedef Documentation

◆ HistogramMap

typedef std::map<int, float> pandora::TwoDHistogram::HistogramMap

private

Definition at line 591 of file Histograms.h.

◆ TwoDHistogramMap

typedef std::map<int, HistogramMap> pandora::TwoDHistogram::TwoDHistogramMap

private

Definition at line 592 of file Histograms.h.

Constructor & Destructor Documentation

◆ TwoDHistogram() [1/3]

pandora::TwoDHistogram::TwoDHistogram	(	const unsigned int	nBinsX,
		const float	xLow,
		const float	xHigh,
		const unsigned int	nBinsY,
		const float	yLow,
		const float	yHigh
	)

Constructor.

Parameters

nBinsX	number of x bins
xLow	min binned x value
xHigh	max binned x value
nBinsY	number of y bins
yLow	min binned y value
yHigh	max binned y value

Definition at line 293 of file Histograms.cc.

◆ TwoDHistogram() [2/3]

pandora::TwoDHistogram::TwoDHistogram	(	const TiXmlHandle *const	pXmlHandle,
		const std::string &	xmlElementName
	)

Constructor.

Parameters

pXmlHandle	address of the handle for the xml element describing the histogram
xmlElementName	the xml element name for the histogram

Definition at line 315 of file Histograms.cc.

Here is the call graph for this function:

◆ TwoDHistogram() [3/3]

pandora::TwoDHistogram::TwoDHistogram ( const TwoDHistogram & rhs )

Copy constructor.

Parameters

rhs	the histogram to copy

Definition at line 378 of file Histograms.cc.

Member Function Documentation

◆ Fill()

void pandora::TwoDHistogram::Fill	(	const float	valueX,
		const float	valueY,
		const float	weight = `1.f`
	)

Add an entry to the histogram.

Parameters

valueX	the x value for the entry
valueY	the y value for the entry
weight	the weight associated with this entry

Definition at line 665 of file Histograms.cc.

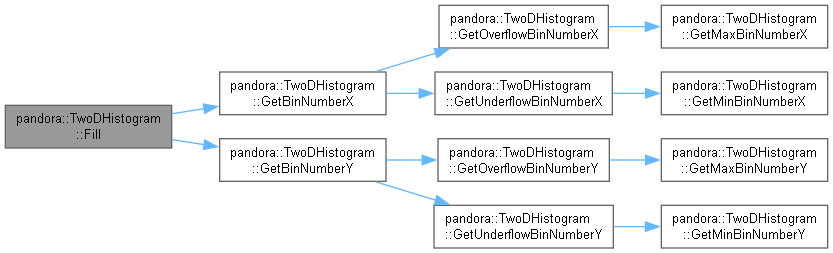

Here is the call graph for this function:

◆ GetBinContent()

float pandora::TwoDHistogram::GetBinContent	(	const int	binX,
		const int	binY
	)		const

Get the content of a specified bin.

Parameters

binX	the specified x bin number
binY	the specified y bin number

Returns: The content of the specified bin

Definition at line 394 of file Histograms.cc.

Here is the caller graph for this function:

◆ GetBinNumberX()

int pandora::TwoDHistogram::GetBinNumberX ( const float valueX ) const

Get the x bin number for a specified x value.

Parameters

valueX the specified x value

Returns: The x bin number

Definition at line 410 of file Histograms.cc.

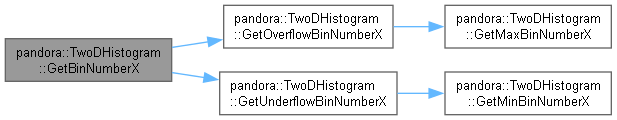

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBinNumberY()

int pandora::TwoDHistogram::GetBinNumberY ( const float valueY ) const

Get the y bin number for a specified value.

Parameters

valueY the specified y value

Returns: The y bin number

Definition at line 427 of file Histograms.cc.

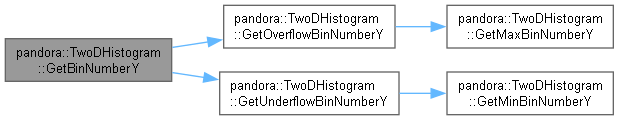

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCumulativeSum() [1/2]

float pandora::TwoDHistogram::GetCumulativeSum ( ) const

inline

Get the cumulative sum of bin entries in the histogram (ignores overflow and underflow bins)

Returns: The cumulative sum

Definition at line 806 of file Histograms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCumulativeSum() [2/2]

float pandora::TwoDHistogram::GetCumulativeSum	(	const int	xLowBin,
		const int	xHighBin,
		const int	yLowBin,
		const int	yHighBin
	)		const

Get the cumulative sum of bin entries in a specified range of the histogram (includes overflow and underflow bins if specified)

Parameters

xLowBin	bin at start of specified x range
xHighBin	bin at end of specified x range
yLowBin	bin at start of specified y range
yHighBin	bin at end of specified y range

Returns: The cumulative sum

Definition at line 445 of file Histograms.cc.

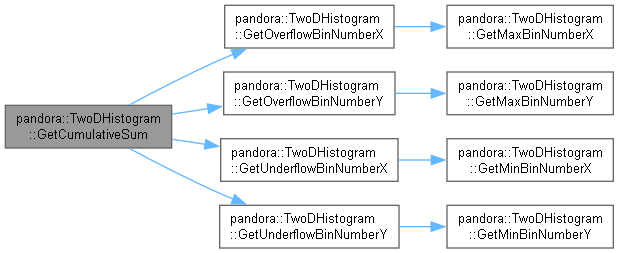

Here is the call graph for this function:

◆ GetMaxBinNumberX()

int pandora::TwoDHistogram::GetMaxBinNumberX ( ) const

inline

Get the max x bin number of the histogram (ignores overflow and underflow bins)

Returns: The max x bin number

Definition at line 758 of file Histograms.h.

Here is the caller graph for this function:

◆ GetMaxBinNumberY()

int pandora::TwoDHistogram::GetMaxBinNumberY ( ) const

inline

Get the max y bin number of the histogram (ignores overflow and underflow bins)

Returns: The max y bin number

Definition at line 785 of file Histograms.h.

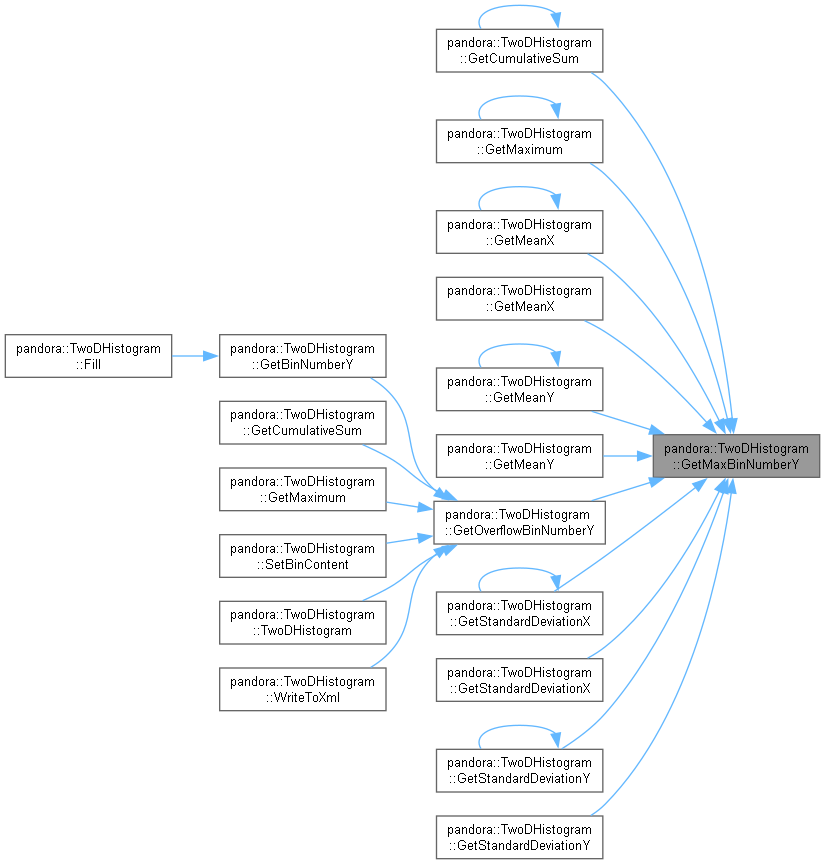

Here is the caller graph for this function:

◆ GetMaximum() [1/2]

void pandora::TwoDHistogram::GetMaximum	(	const int	xLowBin,
		const int	xHighBin,
		const int	yLowBin,
		const int	yHighBin,
		float &	maximumValue,
		int &	maximumBinX,
		int &	maximumBinY
	)		const

Get the maximum value in a specified range of the histogram and the corresponding bin numbers (includes overflow and underflow bins if specified)

Parameters

xLowBin	bin at start of specified x range
xHighBin	bin at end of specified x range
yLowBin	bin at start of specified y range
yHighBin	bin at end of specified y range
maximumValue	to receive the maximum value
maximumBinX	to receive the x coordinate of the bin containing the maximum value
maximumBinY	to receive the y coordinate of the bin containing the maximum value

Definition at line 472 of file Histograms.cc.

Here is the call graph for this function:

◆ GetMaximum() [2/2]

void pandora::TwoDHistogram::GetMaximum	(	float &	maximumValue,
		int &	maximumBinX,
		int &	maximumBinY
	)		const

inline

Get the maximum value in the histogram and the corresponding bin numbers (ignores overflow and underflow bins)

Parameters

maximumValue	to receive the maximum value
maximumBinX	to receive the x coordinate of the bin containing the maximum value
maximumBinY	to receive the y coordinate of the bin containing the maximum value

Definition at line 813 of file Histograms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMeanX() [1/2]

float pandora::TwoDHistogram::GetMeanX ( ) const

inline

Get the mean x value of entries in the histogram (ignores overflow and underflow bins)

Returns: The mean x value

Definition at line 820 of file Histograms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMeanX() [2/2]

float pandora::TwoDHistogram::GetMeanX	(	const int	xLowBin,
		const int	xHighBin,
		const int	yLowBin,
		const int	yHighBin
	)		const

Get the mean x value of entries in a specified range of the histogram (ignores overflow and underflow bins)

Parameters

xLowBin	bin at start of specified x range
xHighBin	bin at end of specified x range
yLowBin	bin at start of specified y range
yHighBin	bin at end of specified y range

Returns: The mean x value

Definition at line 506 of file Histograms.cc.

Here is the call graph for this function:

◆ GetMeanY() [1/2]

float pandora::TwoDHistogram::GetMeanY ( ) const

inline

Get the mean y value of entries in the histogram (ignores overflow and underflow bins)

Returns: The mean y value

Definition at line 834 of file Histograms.h.

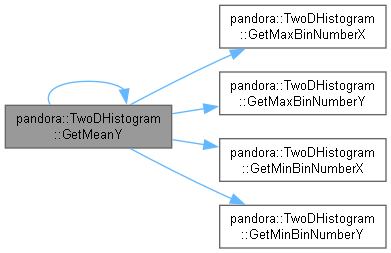

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMeanY() [2/2]

float pandora::TwoDHistogram::GetMeanY	(	const int	xLowBin,
		const int	xHighBin,
		const int	yLowBin,
		const int	yHighBin
	)		const

Get the mean y value of entries in a specified range of the histogram (ignores overflow and underflow bins)

Parameters

xLowBin	bin at start of specified x range
xHighBin	bin at end of specified x range
yLowBin	bin at start of specified y range
yHighBin	bin at end of specified y range

Returns: The mean y value

Definition at line 580 of file Histograms.cc.

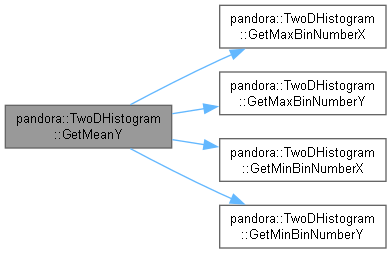

Here is the call graph for this function:

◆ GetMinBinNumberX()

int pandora::TwoDHistogram::GetMinBinNumberX ( ) const

inline

Get the min x bin number of the histogram (ignores overflow and underflow bins)

Returns: The min x bin number

Definition at line 751 of file Histograms.h.

Here is the caller graph for this function:

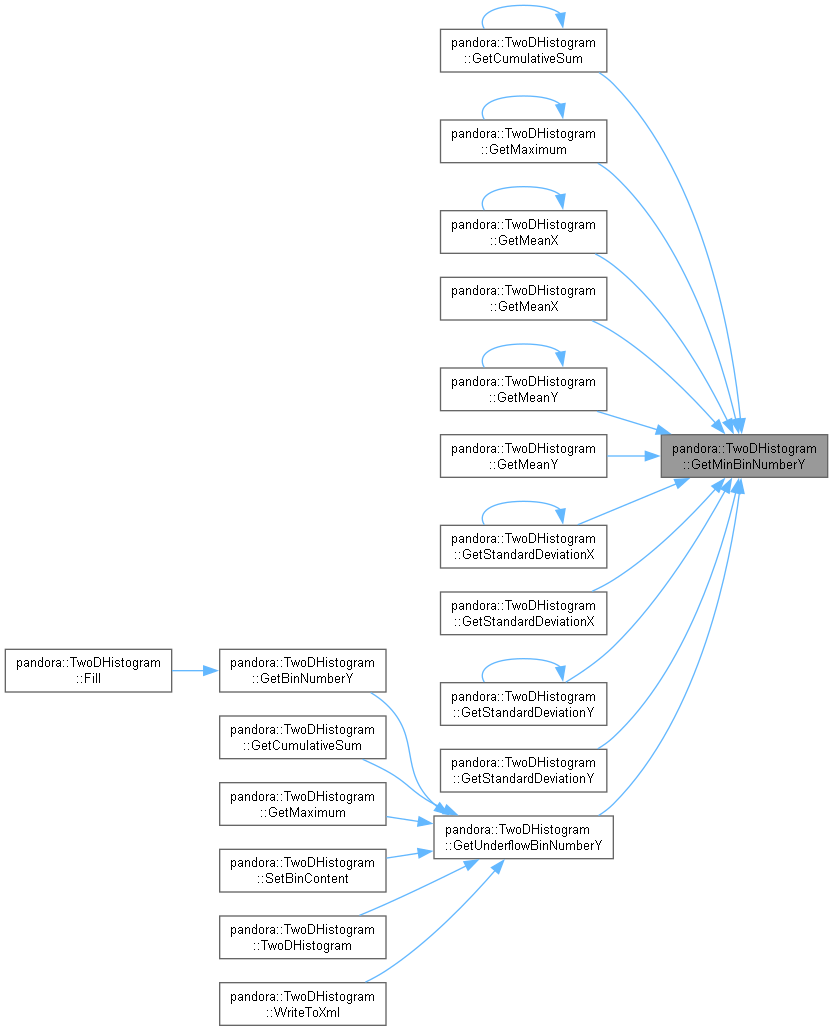

◆ GetMinBinNumberY()

int pandora::TwoDHistogram::GetMinBinNumberY ( ) const

inline

Get the min y bin number of the histogram (ignores overflow and underflow bins)

Returns: The min y bin number

Definition at line 778 of file Histograms.h.

Here is the caller graph for this function:

◆ GetNBinsX()

int pandora::TwoDHistogram::GetNBinsX ( ) const

inline

Get the number of x bins.

Returns: The number of x bins

Definition at line 696 of file Histograms.h.

◆ GetNBinsY()

int pandora::TwoDHistogram::GetNBinsY ( ) const

inline

Get the number of y bins.

Returns: The number of y bins

Definition at line 724 of file Histograms.h.

◆ GetOverflowBinNumberX()

int pandora::TwoDHistogram::GetOverflowBinNumberX ( ) const

inline

Get the overflow x bin number of the histogram.

Returns: The overflow x bin number

Definition at line 772 of file Histograms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

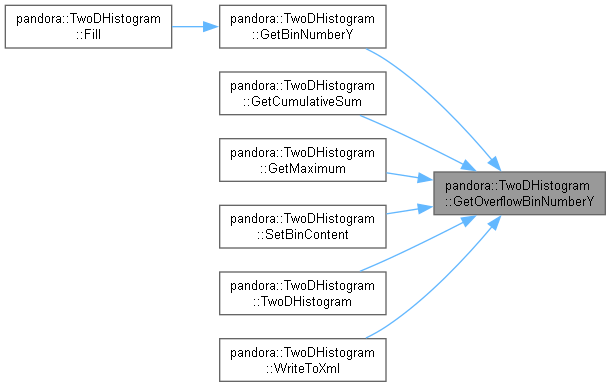

◆ GetOverflowBinNumberY()

int pandora::TwoDHistogram::GetOverflowBinNumberY ( ) const

inline

Get the overflow y bin number of the histogram.

Returns: The overflow y bin number

Definition at line 799 of file Histograms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetStandardDeviationX() [1/2]

float pandora::TwoDHistogram::GetStandardDeviationX ( ) const

inline

Get the standard deviation of x entries in the histogram (ignores overflow and underflow bins)

Returns: The standard deviation of x entries

Definition at line 827 of file Histograms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetStandardDeviationX() [2/2]

float pandora::TwoDHistogram::GetStandardDeviationX	(	const int	xLowBin,
		const int	xHighBin,
		const int	yLowBin,
		const int	yHighBin
	)		const

Get the standard deviation of x entries in a specified range of the histogram (ignores overflow and underflow bins)

Parameters

xLowBin	bin at start of specified x range
xHighBin	bin at end of specified x range
yLowBin	bin at start of specified y range
yHighBin	bin at end of specified y range

Returns: The standard deviation of x entries

Definition at line 541 of file Histograms.cc.

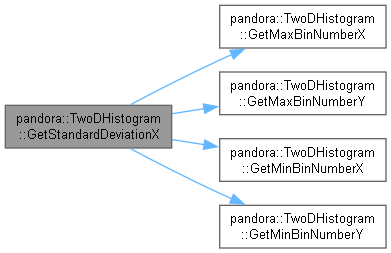

Here is the call graph for this function:

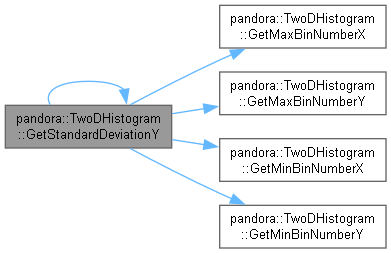

◆ GetStandardDeviationY() [1/2]

float pandora::TwoDHistogram::GetStandardDeviationY ( ) const

inline

Get the standard deviation of y entries in the histogram (ignores overflow and underflow bins)

Returns: The standard deviation of y entries

Definition at line 841 of file Histograms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetStandardDeviationY() [2/2]

float pandora::TwoDHistogram::GetStandardDeviationY	(	const int	xLowBin,
		const int	xHighBin,
		const int	yLowBin,
		const int	yHighBin
	)		const

Get the standard deviation of y entries in a specified range of the histogram (ignores overflow and underflow bins)

Parameters

xLowBin	bin at start of specified x range
xHighBin	bin at end of specified x range
yLowBin	bin at start of specified y range
yHighBin	bin at end of specified y range

Returns: The standard deviation of y entries

Definition at line 615 of file Histograms.cc.

Here is the call graph for this function:

◆ GetUnderflowBinNumberX()

int pandora::TwoDHistogram::GetUnderflowBinNumberX ( ) const

inline

Get the underflow x bin number of the histogram.

Returns: The underflow x bin number

Definition at line 765 of file Histograms.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUnderflowBinNumberY()

int pandora::TwoDHistogram::GetUnderflowBinNumberY ( ) const

inline

Get the underflow y bin number of the histogram.

Returns: The underflow y bin number

Definition at line 792 of file Histograms.h.

Here is the call graph for this function:

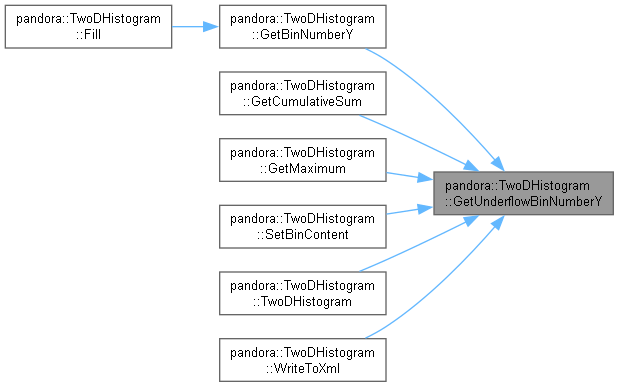

Here is the caller graph for this function:

◆ GetXBinWidth()

float pandora::TwoDHistogram::GetXBinWidth ( ) const

inline

Get the x bin width.

Returns: The x bin width

Definition at line 717 of file Histograms.h.

◆ GetXHigh()

float pandora::TwoDHistogram::GetXHigh ( ) const

inline

Get the max binned x value.

Returns: The max binned x value

Definition at line 710 of file Histograms.h.

◆ GetXLow()

float pandora::TwoDHistogram::GetXLow ( ) const

inline

Get the min binned x value.

Returns: The min binned x value

Definition at line 703 of file Histograms.h.

◆ GetYBinWidth()

float pandora::TwoDHistogram::GetYBinWidth ( ) const

inline

Get the y bin width.

Returns: The y bin width

Definition at line 745 of file Histograms.h.

◆ GetYHigh()

float pandora::TwoDHistogram::GetYHigh ( ) const

inline

Get the max binned y value.

Returns: The max binned y value

Definition at line 738 of file Histograms.h.

◆ GetYLow()

float pandora::TwoDHistogram::GetYLow ( ) const

inline

Get the min binned y value.

Returns: The min binned y value

Definition at line 731 of file Histograms.h.

◆ Scale()

void pandora::TwoDHistogram::Scale ( const float scaleFactor )

Scale contents of all histogram bins by a specified factor.

Parameters

scaleFactor the scale factor

Definition at line 688 of file Histograms.cc.

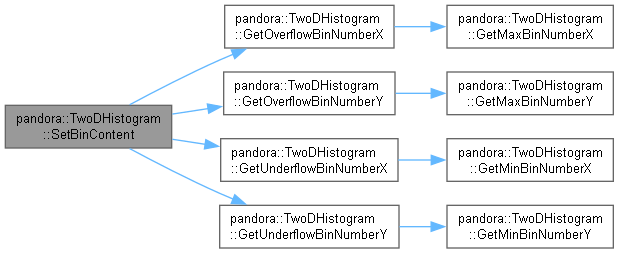

◆ SetBinContent()

void pandora::TwoDHistogram::SetBinContent	(	const int	binX,
		const int	binY,
		const float	value
	)

Set the contents of a specified bin.

Parameters

binX	the specified x bin number
binY	the specified y bin number
value	the new value for the specified bin

Definition at line 654 of file Histograms.cc.

Here is the call graph for this function:

◆ WriteToXml()

void pandora::TwoDHistogram::WriteToXml	(	TiXmlDocument *const	pTiXmlDocument,
		const std::string &	xmlElementName
	)		const

Write the histogram to an xml document.

Parameters

pTiXmlDocument	address of the xml document
xmlElementName	the xml element name for the histogram

Definition at line 709 of file Histograms.cc.

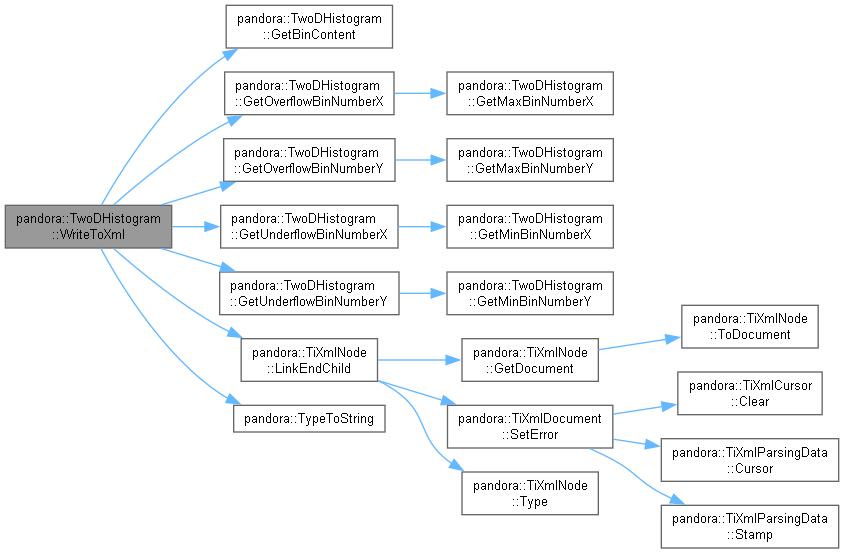

Here is the call graph for this function:

Member Data Documentation

◆ m_nBinsX

int pandora::TwoDHistogram::m_nBinsX

private

The number of x bins.

Definition at line 597 of file Histograms.h.

◆ m_nBinsY

int pandora::TwoDHistogram::m_nBinsY

private

The number of y bins.

Definition at line 602 of file Histograms.h.

◆ m_xBinWidth

float pandora::TwoDHistogram::m_xBinWidth

private

The x bin width.

Definition at line 600 of file Histograms.h.

◆ m_xHigh

float pandora::TwoDHistogram::m_xHigh

private

The max binned x value.

Definition at line 599 of file Histograms.h.

◆ m_xLow

float pandora::TwoDHistogram::m_xLow

private

The min binned x value.

Definition at line 598 of file Histograms.h.

◆ m_xyHistogramMap

TwoDHistogramMap pandora::TwoDHistogram::m_xyHistogramMap

private

The x->y->value 2d histogram map.

Definition at line 594 of file Histograms.h.

◆ m_yBinWidth

float pandora::TwoDHistogram::m_yBinWidth

private

The y bin width.

Definition at line 605 of file Histograms.h.

◆ m_yHigh

float pandora::TwoDHistogram::m_yHigh

private

The max binned y value.

Definition at line 604 of file Histograms.h.

◆ m_yLow

float pandora::TwoDHistogram::m_yLow

private

The min binned y value.

Definition at line 603 of file Histograms.h.

◆ m_yxHistogramMap

TwoDHistogramMap pandora::TwoDHistogram::m_yxHistogramMap

private

The y->x->value 2d histogram map.

Definition at line 595 of file Histograms.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Objects/Histograms.h
PandoraSDK/src/Objects/Histograms.cc

Public Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ HistogramMap

◆ TwoDHistogramMap

Constructor & Destructor Documentation

◆ TwoDHistogram() [1/3]

◆ TwoDHistogram() [2/3]

◆ TwoDHistogram() [3/3]

Member Function Documentation

◆ Fill()

◆ GetBinContent()

◆ GetBinNumberX()

◆ GetBinNumberY()

◆ GetCumulativeSum() [1/2]

◆ GetCumulativeSum() [2/2]

◆ GetMaxBinNumberX()

◆ GetMaxBinNumberY()

◆ GetMaximum() [1/2]

◆ GetMaximum() [2/2]

◆ GetMeanX() [1/2]

◆ GetMeanX() [2/2]

◆ GetMeanY() [1/2]

◆ GetMeanY() [2/2]

◆ GetMinBinNumberX()

◆ GetMinBinNumberY()

◆ GetNBinsX()

◆ GetNBinsY()

◆ GetOverflowBinNumberX()

◆ GetOverflowBinNumberY()

◆ GetStandardDeviationX() [1/2]

◆ GetStandardDeviationX() [2/2]

◆ GetStandardDeviationY() [1/2]

◆ GetStandardDeviationY() [2/2]

◆ GetUnderflowBinNumberX()

◆ GetUnderflowBinNumberY()

◆ GetXBinWidth()

◆ GetXHigh()

◆ GetXLow()

◆ GetYBinWidth()

◆ GetYHigh()

◆ GetYLow()

◆ Scale()

◆ SetBinContent()

◆ WriteToXml()

Member Data Documentation

◆ m_nBinsX

◆ m_nBinsY

◆ m_xBinWidth

◆ m_xHigh

◆ m_xLow

◆ m_xyHistogramMap

◆ m_yBinWidth

◆ m_yHigh

◆ m_yLow

◆ m_yxHistogramMap
