#include "tinyxml.h"

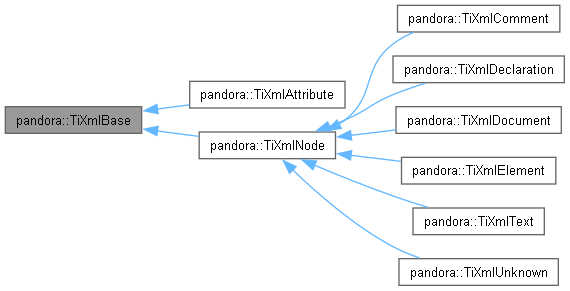

Inheritance diagram for pandora::TiXmlBase:

[legend]

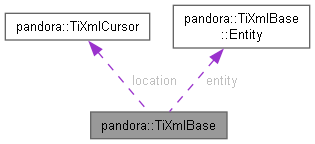

Collaboration diagram for pandora::TiXmlBase:

[legend]

Classes
struct	Entity

Public Types
enum	{ TIXML_NO_ERROR = 0 , TIXML_ERROR , TIXML_ERROR_OPENING_FILE , TIXML_ERROR_PARSING_ELEMENT , TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME , TIXML_ERROR_READING_ELEMENT_VALUE , TIXML_ERROR_READING_ATTRIBUTES , TIXML_ERROR_PARSING_EMPTY , TIXML_ERROR_READING_END_TAG , TIXML_ERROR_PARSING_UNKNOWN , TIXML_ERROR_PARSING_COMMENT , TIXML_ERROR_PARSING_DECLARATION , TIXML_ERROR_DOCUMENT_EMPTY , TIXML_ERROR_EMBEDDED_NULL , TIXML_ERROR_PARSING_CDATA , TIXML_ERROR_DOCUMENT_TOP_ONLY , TIXML_ERROR_STRING_COUNT }

Public Member Functions
	TiXmlBase ()

virtual	~TiXmlBase ()

virtual void	Print (FILE *cfile, int depth) const =0

int	Row () const

int	Column () const
	See Row()

void	SetUserData (void *user)
	Set a pointer to arbitrary user data.

void *	GetUserData ()
	Get a pointer to arbitrary user data.

const void *	GetUserData () const
	Get a pointer to arbitrary user data.

virtual const char *	Parse (const char p, TiXmlParsingData data, TiXmlEncoding encoding)=0

Static Public Member Functions
static void	SetCondenseWhiteSpace (bool condense)

static bool	IsWhiteSpaceCondensed ()
	Return the current white space setting.

static void	EncodeString (const TIXML_STRING &str, TIXML_STRING *out)

Static Public Attributes
static const int	utf8ByteTable [256]

Static Protected Member Functions
static const char *	SkipWhiteSpace (const char *, TiXmlEncoding encoding)

static bool	IsWhiteSpace (char c)

static bool	IsWhiteSpace (int c)

static bool	StreamWhiteSpace (std::istream in, TIXML_STRING tag)

static bool	StreamTo (std::istream in, int character, TIXML_STRING tag)

static const char *	ReadName (const char p, TIXML_STRING name, TiXmlEncoding encoding)

static const char *	ReadText (const char in, TIXML_STRING text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)

static const char *	GetEntity (const char in, char value, int *length, TiXmlEncoding encoding)

static const char *	GetChar (const char p, char _value, int *length, TiXmlEncoding encoding)

static bool	StringEqual (const char p, const char endTag, bool ignoreCase, TiXmlEncoding encoding)

static int	IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)

static int	IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)

static int	ToLower (int v, TiXmlEncoding encoding)

static void	ConvertUTF32ToUTF8 (unsigned long input, char output, int length)

Protected Attributes
TiXmlCursor	location

void *	userData
	Field containing a generic user pointer.

Static Protected Attributes
static const char *	errorString [TIXML_ERROR_STRING_COUNT]

Private Types
enum	{ NUM_ENTITY = 5 , MAX_ENTITY_LENGTH = 6 }

Private Member Functions
	TiXmlBase (const TiXmlBase &)

void	operator= (const TiXmlBase &base)

Static Private Attributes
static Entity	entity [NUM_ENTITY]

static bool	condenseWhiteSpace = true

Friends
class	TiXmlNode

class	TiXmlElement

class	TiXmlDocument

Detailed Description

TiXmlBase is a base class for every class in TinyXml. It does little except to establish that TinyXml classes can be printed and provide some utility functions.

In XML, the document and elements can contain other elements and other types of nodes.

A Document can contain: Element (container or leaf)
                        Comment (leaf)
                        Unknown (leaf)
                        Declaration( leaf )

An Element can contain: Element (container or leaf)
                        Text    (leaf)
                        Attributes (not on tree)
                        Comment (leaf)
                        Unknown (leaf)

A Decleration contains: Attributes (not on tree)

Definition at line 201 of file tinyxml.h.

Class Documentation

◆ pandora::TiXmlBase::Entity

struct pandora::TiXmlBase::Entity

Definition at line 407 of file tinyxml.h.

Class Members
char	chr
const char *	str
unsigned int	strLength

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
TIXML_NO_ERROR
TIXML_ERROR
TIXML_ERROR_OPENING_FILE
TIXML_ERROR_PARSING_ELEMENT
TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME
TIXML_ERROR_READING_ELEMENT_VALUE
TIXML_ERROR_READING_ATTRIBUTES
TIXML_ERROR_PARSING_EMPTY
TIXML_ERROR_READING_END_TAG
TIXML_ERROR_PARSING_UNKNOWN
TIXML_ERROR_PARSING_COMMENT
TIXML_ERROR_PARSING_DECLARATION
TIXML_ERROR_DOCUMENT_EMPTY
TIXML_ERROR_EMBEDDED_NULL
TIXML_ERROR_PARSING_CDATA
TIXML_ERROR_DOCUMENT_TOP_ONLY
TIXML_ERROR_STRING_COUNT

Definition at line 271 of file tinyxml.h.

◆ anonymous enum

anonymous enum

private

Enumerator
NUM_ENTITY
MAX_ENTITY_LENGTH

Definition at line 413 of file tinyxml.h.

Constructor & Destructor Documentation

◆ TiXmlBase() [1/2]

pandora::TiXmlBase::TiXmlBase ( )

inline

Definition at line 208 of file tinyxml.h.

◆ ~TiXmlBase()

virtual pandora::TiXmlBase::~TiXmlBase ( )

inlinevirtual

Definition at line 209 of file tinyxml.h.

◆ TiXmlBase() [2/2]

pandora::TiXmlBase::TiXmlBase ( const TiXmlBase & )

private

Member Function Documentation

◆ Column()

int pandora::TiXmlBase::Column ( ) const

inline

See Row()

Definition at line 252 of file tinyxml.h.

◆ ConvertUTF32ToUTF8()

void pandora::TiXmlBase::ConvertUTF32ToUTF8	(	unsigned long	input,
		char *	output,
		int *	length
	)

staticprotected

Definition at line 91 of file tinyxmlparser.cc.

Here is the caller graph for this function:

◆ EncodeString()

void pandora::TiXmlBase::EncodeString	(	const TIXML_STRING &	str,
		TIXML_STRING *	out
	)

static

Expands entities in a string. Note this should not contian the tag's '<', '>', etc, or they will be transformed into entities!

Definition at line 55 of file tinyxml.cc.

Here is the caller graph for this function:

◆ GetChar()

static const char * pandora::TiXmlBase::GetChar	(	const char *	p,
		char *	_value,
		int *	length,
		TiXmlEncoding	encoding
	)

inlinestaticprotected

Definition at line 334 of file tinyxml.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEntity()

const char * pandora::TiXmlBase::GetEntity	(	const char *	in,
		char *	value,
		int *	length,
		TiXmlEncoding	encoding
	)

staticprotected

Definition at line 444 of file tinyxmlparser.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUserData() [1/2]

void * pandora::TiXmlBase::GetUserData ( )

inline

Get a pointer to arbitrary user data.

Definition at line 255 of file tinyxml.h.

◆ GetUserData() [2/2]

const void * pandora::TiXmlBase::GetUserData ( ) const

inline

Get a pointer to arbitrary user data.

Definition at line 256 of file tinyxml.h.

◆ IsAlpha()

int pandora::TiXmlBase::IsAlpha	(	unsigned char	anyByte,
		TiXmlEncoding	encoding
	)

staticprotected

Definition at line 135 of file tinyxmlparser.cc.

Here is the caller graph for this function:

◆ IsAlphaNum()

int pandora::TiXmlBase::IsAlphaNum	(	unsigned char	anyByte,
		TiXmlEncoding	encoding
	)

staticprotected

Definition at line 156 of file tinyxmlparser.cc.

Here is the caller graph for this function:

◆ IsWhiteSpace() [1/2]

static bool pandora::TiXmlBase::IsWhiteSpace ( char c )

inlinestaticprotected

Definition at line 297 of file tinyxml.h.

Here is the caller graph for this function:

◆ IsWhiteSpace() [2/2]

static bool pandora::TiXmlBase::IsWhiteSpace ( int c )

inlinestaticprotected

Definition at line 301 of file tinyxml.h.

Here is the call graph for this function:

◆ IsWhiteSpaceCondensed()

static bool pandora::TiXmlBase::IsWhiteSpaceCondensed ( )

inlinestatic

Return the current white space setting.

Definition at line 231 of file tinyxml.h.

Here is the caller graph for this function:

◆ operator=()

void pandora::TiXmlBase::operator= ( const TiXmlBase & base )

private

◆ Parse()

virtual const char * pandora::TiXmlBase::Parse	(	const char *	p,
		TiXmlParsingData *	data,
		TiXmlEncoding	encoding
	)

pure virtual

Implemented in pandora::TiXmlAttribute, pandora::TiXmlElement, pandora::TiXmlComment, pandora::TiXmlText, pandora::TiXmlDeclaration, pandora::TiXmlUnknown, and pandora::TiXmlDocument.

Here is the caller graph for this function:

◆ Print()

virtual void pandora::TiXmlBase::Print	(	FILE *	cfile,
		int	depth
	)		const

pure virtual

All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in pandora::TiXmlAttribute, pandora::TiXmlElement, pandora::TiXmlComment, pandora::TiXmlText, pandora::TiXmlDeclaration, pandora::TiXmlUnknown, and pandora::TiXmlDocument.

Here is the caller graph for this function:

◆ ReadName()

const char * pandora::TiXmlBase::ReadName	(	const char *	p,
		TIXML_STRING *	name,
		TiXmlEncoding	encoding
	)

staticprotected

Definition at line 407 of file tinyxmlparser.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadText()

const char * pandora::TiXmlBase::ReadText	(	const char *	in,
		TIXML_STRING *	text,
		bool	ignoreWhiteSpace,
		const char *	endTag,
		bool	ignoreCase,
		TiXmlEncoding	encoding
	)

staticprotected

Definition at line 580 of file tinyxmlparser.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Row()

int pandora::TiXmlBase::Row ( ) const

inline

Return the position, in the original source file, of this node or attribute. The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also: TiXmlDocument::SetTabSize()

Definition at line 251 of file tinyxml.h.

◆ SetCondenseWhiteSpace()

static void pandora::TiXmlBase::SetCondenseWhiteSpace ( bool condense )

inlinestatic

The world does not agree on whether white space should be kept or not. In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this value is not thread safe.

Definition at line 228 of file tinyxml.h.

◆ SetUserData()

void pandora::TiXmlBase::SetUserData ( void * user )

inline

Set a pointer to arbitrary user data.

Definition at line 254 of file tinyxml.h.

◆ SkipWhiteSpace()

const char * pandora::TiXmlBase::SkipWhiteSpace	(	const char *	p,
		TiXmlEncoding	encoding
	)

staticprotected

Definition at line 320 of file tinyxmlparser.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StreamTo()

static bool pandora::TiXmlBase::StreamTo	(	std::istream *	in,
		int	character,
		TIXML_STRING *	tag
	)

staticprotected

◆ StreamWhiteSpace()

static bool pandora::TiXmlBase::StreamWhiteSpace	(	std::istream *	in,
		TIXML_STRING *	tag
	)

staticprotected

◆ StringEqual()

bool pandora::TiXmlBase::StringEqual	(	const char *	p,
		const char *	endTag,
		bool	ignoreCase,
		TiXmlEncoding	encoding
	)

staticprotected

Definition at line 540 of file tinyxmlparser.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ToLower()

static int pandora::TiXmlBase::ToLower	(	int	v,
		TiXmlEncoding	encoding
	)

inlinestaticprotected

Definition at line 389 of file tinyxml.h.

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ TiXmlDocument

friend class TiXmlDocument

friend

Definition at line 205 of file tinyxml.h.

◆ TiXmlElement

friend class TiXmlElement

friend

Definition at line 204 of file tinyxml.h.

◆ TiXmlNode

friend class TiXmlNode

friend

Definition at line 203 of file tinyxml.h.

Member Data Documentation

◆ condenseWhiteSpace

bool pandora::TiXmlBase::condenseWhiteSpace = true

staticprivate

Definition at line 420 of file tinyxml.h.

◆ entity

TiXmlBase::Entity pandora::TiXmlBase::entity

staticprivate

Initial value:

=
{
    { "&amp;",  5, '&' },
    { "&lt;",   4, '<' },
    { "&gt;",   4, '>' },
    { "&quot;", 6, '\"' },
    { "&apos;", 6, '\'' }
}

Definition at line 419 of file tinyxml.h.

◆ errorString

const char * pandora::TiXmlBase::errorString

staticprotected

Initial value:

=
{
    "No error",
    "Error",
    "Failed to open file",
    "Error parsing Element.",
    "Failed to read Element name",
    "Error reading Element value.",
    "Error reading Attributes.",
    "Error: empty tag.",
    "Error reading end tag.",
    "Error parsing Unknown.",
    "Error parsing Comment.",
    "Error parsing Declaration.",
    "Error document empty.",
    "Error null (0) or unexpected EOF found in input stream.",
    "Error parsing CDATA.",
    "Error when TiXmlDocument added to document, because TiXmlDocument can only be at the root.",
}

Definition at line 378 of file tinyxml.h.

◆ location

TiXmlCursor pandora::TiXmlBase::location

protected

Definition at line 380 of file tinyxml.h.

◆ userData

void* pandora::TiXmlBase::userData

protected

Field containing a generic user pointer.

Definition at line 383 of file tinyxml.h.

◆ utf8ByteTable

const int pandora::TiXmlBase::utf8ByteTable

static

Initial value:

=
{

        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,
        4,  4,  4,  4,  4,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1
}

Definition at line 260 of file tinyxml.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Xml/tinyxml.h
PandoraSDK/src/Xml/tinyxml.cc
PandoraSDK/src/Xml/tinyxmlerror.cc
PandoraSDK/src/Xml/tinyxmlparser.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Types

Private Member Functions

Static Private Attributes

Friends

Detailed Description

Class Documentation

◆ pandora::TiXmlBase::Entity

Member Enumeration Documentation

◆ anonymous enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ TiXmlBase() [1/2]

◆ ~TiXmlBase()

◆ TiXmlBase() [2/2]

Member Function Documentation

◆ Column()

◆ ConvertUTF32ToUTF8()

◆ EncodeString()

◆ GetChar()

◆ GetEntity()

◆ GetUserData() [1/2]

◆ GetUserData() [2/2]

◆ IsAlpha()

◆ IsAlphaNum()

◆ IsWhiteSpace() [1/2]

◆ IsWhiteSpace() [2/2]

◆ IsWhiteSpaceCondensed()

◆ operator=()

◆ Parse()

◆ Print()

◆ ReadName()

◆ ReadText()

◆ Row()

◆ SetCondenseWhiteSpace()

◆ SetUserData()

◆ SkipWhiteSpace()

◆ StreamTo()

◆ StreamWhiteSpace()

◆ StringEqual()

◆ ToLower()

Friends And Related Symbol Documentation

◆ TiXmlDocument

◆ TiXmlElement

◆ TiXmlNode

Member Data Documentation

◆ condenseWhiteSpace

◆ entity

◆ errorString

◆ location

◆ userData

◆ utf8ByteTable
