pandora::ReclusterMetadata Class Reference

ReclusterMetadata class. More...

#include "Metadata.h"

Collaboration diagram for pandora::ReclusterMetadata:

Public Member Functions
	ReclusterMetadata (CaloHitList *const pCaloHitList)
	Constructor.
	~ReclusterMetadata ()
	Destructor.
StatusCode	CreateCaloHitMetadata (CaloHitList *const pCaloHitList, const std::string &caloHitListName, const std::string &reclusterListName, const bool initialHitAvailability)
	Create new calo hit metadata, associated with a new reclustering option for the calo hits.
StatusCode	ExtractCaloHitMetadata (const std::string &reclusterListName, CaloHitMetadata *&pCaloHitMetaData)
	Extract specific calo hit metadata, removing entry from map and receiving a pointer to the metadata.
const CaloHitList &	GetCaloHitList () const
	Get the initial calo hit list.
CaloHitMetadata *	GetCurrentCaloHitMetadata ()
	Get the current calo hit metadata.

Private Types
typedef std::map< std::string, CaloHitMetadata * >	NameToMetadataMap

Private Attributes
CaloHitMetadata *	m_pCurrentCaloHitMetadata
	Address of the current calo hit metadata.
CaloHitList	m_caloHitList
	Copy of the reclustering input calo hit list.
NameToMetadataMap	m_nameToMetadataMap
	The recluster list name to metadata map.

Detailed Description

ReclusterMetadata class.

Definition at line 120 of file Metadata.h.

Member Typedef Documentation

NameToMetadataMap

typedef std::map<std::string, CaloHitMetadata *> pandora::ReclusterMetadata::NameToMetadataMap

private

Definition at line 169 of file Metadata.h.

Constructor & Destructor Documentation

ReclusterMetadata()

pandora::ReclusterMetadata::ReclusterMetadata

(

CaloHitList *const

pCaloHitList

)

Constructor.

Parameters

pCaloHitList

address of the initial calo hit list, copies of which will be used during reclustering

Definition at line 186 of file Metadata.cc.

~ReclusterMetadata()

pandora::ReclusterMetadata::~ReclusterMetadata

(

)

Destructor.

Definition at line 196 of file Metadata.cc.

Member Function Documentation

CreateCaloHitMetadata()

StatusCode pandora::ReclusterMetadata::CreateCaloHitMetadata	(	CaloHitList *const	pCaloHitList,
		const std::string &	caloHitListName,
		const std::string &	reclusterListName,
		const bool	initialHitAvailability
	)

Create new calo hit metadata, associated with a new reclustering option for the calo hits.

Parameters

pCaloHitList	address of the calo hit list associated with the reclustering option
caloHitListName	name of the calo hit list associated with the reclustering option
reclusterListName	the name of the reclustering option
initialHitAvailability	the initial availability of the calo hits

Definition at line 204 of file Metadata.cc.

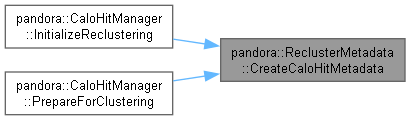

Here is the caller graph for this function:

ExtractCaloHitMetadata()

StatusCode pandora::ReclusterMetadata::ExtractCaloHitMetadata	(	const std::string &	reclusterListName,
		CaloHitMetadata *&	pCaloHitMetaData
	)

Extract specific calo hit metadata, removing entry from map and receiving a pointer to the metadata.

Parameters

reclusterListName	the key/name matching the desired metadata
pCaloHitMetaData	to receive the pointer to the metadata

Definition at line 220 of file Metadata.cc.

Here is the caller graph for this function:

GetCaloHitList()

const CaloHitList & pandora::ReclusterMetadata::GetCaloHitList ( ) const

inline

Get the initial calo hit list.

Returns

the initial calo hit list

Definition at line 196 of file Metadata.h.

Here is the caller graph for this function:

GetCurrentCaloHitMetadata()

CaloHitMetadata * pandora::ReclusterMetadata::GetCurrentCaloHitMetadata ( )

inline

Get the current calo hit metadata.

Returns

the current calo hit metadata

Definition at line 203 of file Metadata.h.

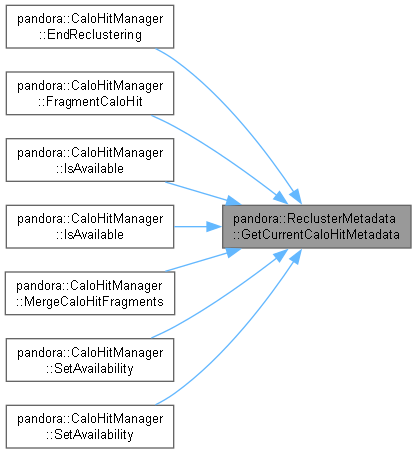

Here is the caller graph for this function:

Member Data Documentation

m_caloHitList

CaloHitList pandora::ReclusterMetadata::m_caloHitList

private

Copy of the reclustering input calo hit list.

Definition at line 172 of file Metadata.h.

m_nameToMetadataMap

NameToMetadataMap pandora::ReclusterMetadata::m_nameToMetadataMap

private

The recluster list name to metadata map.

Definition at line 173 of file Metadata.h.

m_pCurrentCaloHitMetadata

CaloHitMetadata* pandora::ReclusterMetadata::m_pCurrentCaloHitMetadata

private

Address of the current calo hit metadata.

Definition at line 171 of file Metadata.h.

---

The documentation for this class was generated from the following files:

• PandoraSDK/include/Managers/Metadata.h
• PandoraSDK/src/Managers/Metadata.cc
