#include "Persistency.h"

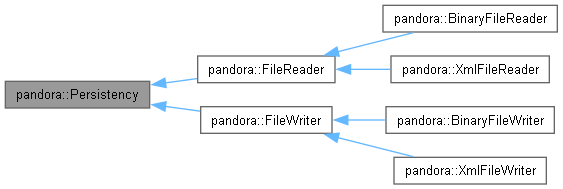

Inheritance diagram for pandora::Persistency:

[legend]

Collaboration diagram for pandora::Persistency:

[legend]

Public Member Functions
	Persistency (const pandora::Pandora &pandora, const std::string &fileName)
	Constructor.

virtual	~Persistency ()
	Destructor.

const std::string &	GetFileName () const
	Get the file name.

FileType	GetFileType () const
	Get the file type.

template<typename PARAMETERS , typename OBJECT >
StatusCode	SetFactory (ObjectFactory< PARAMETERS, OBJECT > *const pFactory)
	Set the factory to use for all instantiations and parameter persistence.

template<>
void	ReplaceCurrentFactory (ObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object > *const pFactory)

template<>
void	ReplaceCurrentFactory (ObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object > *const pFactory)

template<>
void	ReplaceCurrentFactory (ObjectFactory< object_creation::MCParticle::Parameters, object_creation::MCParticle::Object > *const pFactory)

template<>
void	ReplaceCurrentFactory (ObjectFactory< object_creation::Geometry::SubDetector::Parameters, object_creation::Geometry::SubDetector::Object > *const pFactory)

template<>
void	ReplaceCurrentFactory (ObjectFactory< object_creation::Geometry::LArTPC::Parameters, object_creation::Geometry::LArTPC::Object > *const pFactory)

template<>
void	ReplaceCurrentFactory (ObjectFactory< object_creation::Geometry::LineGap::Parameters, object_creation::Geometry::LineGap::Object > *const pFactory)

template<>
void	ReplaceCurrentFactory (ObjectFactory< object_creation::Geometry::BoxGap::Parameters, object_creation::Geometry::BoxGap::Object > *const pFactory)

template<>
void	ReplaceCurrentFactory (ObjectFactory< object_creation::Geometry::ConcentricGap::Parameters, object_creation::Geometry::ConcentricGap::Object > *const pFactory)

Protected Member Functions
template<typename PARAMETERS , typename OBJECT >
void	ReplaceCurrentFactory (ObjectFactory< PARAMETERS, OBJECT > *const pFactory)
	Replace the current factory with the provided instance.

Protected Attributes
const Pandora *const	m_pPandora
	Address of pandora instance to be used alongside the file writer.

std::string	m_fileName
	The file name.

FileType	m_fileType
	The file type.

ContainerId	m_containerId
	The type of container currently being written to file.

ObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object > *	m_pCaloHitFactory
	Address of the calo hit factory.

ObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object > *	m_pTrackFactory
	Address of the track factory.

ObjectFactory< object_creation::MCParticle::Parameters, object_creation::MCParticle::Object > *	m_pMCParticleFactory
	Address of the mc particle factory.

ObjectFactory< object_creation::Geometry::SubDetector::Parameters, object_creation::Geometry::SubDetector::Object > *	m_pSubDetectorFactory
	Address of the sub detector factory.

ObjectFactory< object_creation::Geometry::LArTPC::Parameters, object_creation::Geometry::LArTPC::Object > *	m_pLArTPCFactory
	Address of the lar tpc factory.

ObjectFactory< object_creation::Geometry::LineGap::Parameters, object_creation::Geometry::LineGap::Object > *	m_pLineGapFactory
	Address of the line gap factory.

ObjectFactory< object_creation::Geometry::BoxGap::Parameters, object_creation::Geometry::BoxGap::Object > *	m_pBoxGapFactory
	Address of the box gap factory.

ObjectFactory< object_creation::Geometry::ConcentricGap::Parameters, object_creation::Geometry::ConcentricGap::Object > *	m_pConcentricGapFactory
	Address of the concentric gap factory.

Detailed Description

Persistency class.

Definition at line 25 of file Persistency.h.

Constructor & Destructor Documentation

◆ Persistency()

pandora::Persistency::Persistency	(	const pandora::Pandora &	pandora,
		const std::string &	fileName
	)

Constructor.

Parameters

pandora	the pandora instance to be used alongside the file writer
fileName	the name of the output file
fileMode	the mode for file writing

Definition at line 16 of file Persistency.cc.

◆ ~Persistency()

pandora::Persistency::~Persistency ( )

virtual

Destructor.

Definition at line 34 of file Persistency.cc.

Member Function Documentation

◆ GetFileName()

const std::string & pandora::Persistency::GetFileName ( ) const

inline

Get the file name.

Returns: the file name

Definition at line 90 of file Persistency.h.

◆ GetFileType()

FileType pandora::Persistency::GetFileType ( ) const

inline

Get the file type.

Returns: the file type

Definition at line 97 of file Persistency.h.

Here is the caller graph for this function:

◆ ReplaceCurrentFactory() [1/9]

template<>

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object > *const pFactory )

Definition at line 61 of file Persistency.cc.

◆ ReplaceCurrentFactory() [2/9]

template<>

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< object_creation::Geometry::BoxGap::Parameters, object_creation::Geometry::BoxGap::Object > *const pFactory )

Definition at line 103 of file Persistency.cc.

◆ ReplaceCurrentFactory() [3/9]

template<>

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< object_creation::Geometry::ConcentricGap::Parameters, object_creation::Geometry::ConcentricGap::Object > *const pFactory )

Definition at line 110 of file Persistency.cc.

◆ ReplaceCurrentFactory() [4/9]

template<>

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< object_creation::Geometry::LArTPC::Parameters, object_creation::Geometry::LArTPC::Object > *const pFactory )

Definition at line 89 of file Persistency.cc.

◆ ReplaceCurrentFactory() [5/9]

template<>

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< object_creation::Geometry::LineGap::Parameters, object_creation::Geometry::LineGap::Object > *const pFactory )

Definition at line 96 of file Persistency.cc.

◆ ReplaceCurrentFactory() [6/9]

template<>

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< object_creation::Geometry::SubDetector::Parameters, object_creation::Geometry::SubDetector::Object > *const pFactory )

Definition at line 82 of file Persistency.cc.

◆ ReplaceCurrentFactory() [7/9]

template<>

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< object_creation::MCParticle::Parameters, object_creation::MCParticle::Object > *const pFactory )

Definition at line 75 of file Persistency.cc.

◆ ReplaceCurrentFactory() [8/9]

template<>

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object > *const pFactory )

Definition at line 68 of file Persistency.cc.

◆ ReplaceCurrentFactory() [9/9]

template<typename PARAMETERS , typename OBJECT >

void pandora::Persistency::ReplaceCurrentFactory ( ObjectFactory< PARAMETERS, OBJECT > *const pFactory )

protected

Replace the current factory with the provided instance.

Parameters

pFactory address of the factory

Here is the caller graph for this function:

◆ SetFactory()

template<typename PARAMETERS , typename OBJECT >

template StatusCode pandora::Persistency::SetFactory ( ObjectFactory< PARAMETERS, OBJECT > *const pFactory )

Set the factory to use for all instantiations and parameter persistence.

Parameters

pFactory address of the factory

Definition at line 49 of file Persistency.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_containerId

ContainerId pandora::Persistency::m_containerId

protected

The type of container currently being written to file.

Definition at line 76 of file Persistency.h.

◆ m_fileName

std::string pandora::Persistency::m_fileName

protected

The file name.

Definition at line 74 of file Persistency.h.

◆ m_fileType

FileType pandora::Persistency::m_fileType

protected

The file type.

Definition at line 75 of file Persistency.h.

◆ m_pBoxGapFactory

ObjectFactory<object_creation::Geometry::BoxGap::Parameters, object_creation::Geometry::BoxGap::Object>* pandora::Persistency::m_pBoxGapFactory

protected

Address of the box gap factory.

Definition at line 84 of file Persistency.h.

◆ m_pCaloHitFactory

ObjectFactory<object_creation::CaloHit::Parameters, object_creation::CaloHit::Object>* pandora::Persistency::m_pCaloHitFactory

protected

Address of the calo hit factory.

Definition at line 78 of file Persistency.h.

◆ m_pConcentricGapFactory

ObjectFactory<object_creation::Geometry::ConcentricGap::Parameters, object_creation::Geometry::ConcentricGap::Object>* pandora::Persistency::m_pConcentricGapFactory

protected

Address of the concentric gap factory.

Definition at line 85 of file Persistency.h.

◆ m_pLArTPCFactory

ObjectFactory<object_creation::Geometry::LArTPC::Parameters, object_creation::Geometry::LArTPC::Object>* pandora::Persistency::m_pLArTPCFactory

protected

Address of the lar tpc factory.

Definition at line 82 of file Persistency.h.

◆ m_pLineGapFactory

ObjectFactory<object_creation::Geometry::LineGap::Parameters, object_creation::Geometry::LineGap::Object>* pandora::Persistency::m_pLineGapFactory

protected

Address of the line gap factory.

Definition at line 83 of file Persistency.h.

◆ m_pMCParticleFactory

ObjectFactory<object_creation::MCParticle::Parameters, object_creation::MCParticle::Object>* pandora::Persistency::m_pMCParticleFactory

protected

Address of the mc particle factory.

Definition at line 80 of file Persistency.h.

◆ m_pPandora

const Pandora* const pandora::Persistency::m_pPandora

protected

Address of pandora instance to be used alongside the file writer.

Definition at line 73 of file Persistency.h.

◆ m_pSubDetectorFactory

ObjectFactory<object_creation::Geometry::SubDetector::Parameters, object_creation::Geometry::SubDetector::Object>* pandora::Persistency::m_pSubDetectorFactory

protected

Address of the sub detector factory.

Definition at line 81 of file Persistency.h.

◆ m_pTrackFactory

ObjectFactory<object_creation::Track::Parameters, object_creation::Track::Object>* pandora::Persistency::m_pTrackFactory

protected

Address of the track factory.

Definition at line 79 of file Persistency.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Persistency/Persistency.h
PandoraSDK/src/Persistency/Persistency.cc
