#include "Helix.h"

Collaboration diagram for pandora::Helix:

Public Member Functions
	Helix (const float phi0, const float d0, const float z0, const float omega, const float tanlambda, const float bField)
	Constructor using canonical (LEP-wise) parameterisation.

	Helix (const CartesianVector &position, const CartesianVector &momentum, const float charge, const float bField)
	Constructor.

StatusCode	GetPointInXY (const float x0, const float y0, const float ax, const float ay, const CartesianVector &referencePoint, CartesianVector &intersectionPoint) const
	Get helix intersection point with a plane parallel to z axis. The plane is defined by two coordinates in the plane (x0,y0) and a normal vector (ax,ay).

StatusCode	GetPointInXY (const float x0, const float y0, const float ax, const float ay, const CartesianVector &referencePoint, CartesianVector &intersectionPoint, float &genericTime) const
	Get helix intersection point with a plane parallel to z axis. The plane is defined by two coordinates in the plane (x0,y0) and a normal vector (ax,ay).

StatusCode	GetPointInZ (const float zPlane, const CartesianVector &referencePoint, CartesianVector &intersectionPoint) const
	Get helix intersection point with a plane perpendicular to z axis.

StatusCode	GetPointInZ (const float zPlane, const CartesianVector &referencePoint, CartesianVector &intersectionPoint, float &genericTime) const
	Get helix intersection point with a plane perpendicular to z axis.

StatusCode	GetPointOnCircle (const float radius, const CartesianVector &referencePoint, CartesianVector &intersectionPoint) const
	Get coordinates of helix intersection with cylinder, aligned along z-axis.

StatusCode	GetPointOnCircle (const float radius, const CartesianVector &referencePoint, CartesianVector &intersectionPoint, float &genericTime) const
	Get coordinates of helix intersection with cylinder, aligned along z-axis.

StatusCode	GetDistanceToPoint (const CartesianVector &point, CartesianVector &distance) const
	Get distance of the closest approach of helix to an arbitrary point in space.

StatusCode	GetDistanceToPoint (const CartesianVector &point, CartesianVector &distance, float &genericTime) const
	Get distance of the closest approach of helix to an arbitrary point in space.

StatusCode	GetDistanceToHelix (const Helix *const pHelix, CartesianVector &positionOfClosestApproach, CartesianVector &v0momentum, float &helixDistance) const
	Get distance between two helices.

CartesianVector	GetExtrapolatedMomentum (const CartesianVector &position) const

const CartesianVector &	GetMomentum () const
	Get momentum of particle at the point of closest approach to IP.

const CartesianVector &	GetReferencePoint () const
	Get reference point of track.

float	GetPhi0 () const
	Get phi angle of the momentum vector at the point of closest approach to IP.

float	GetD0 () const
	Get z signed distance of closest approach to IP in the R-Phi plane.

float	GetZ0 () const
	Get z coordinate of the point of closest approach to IP in the R-Phi plane.

float	GetOmega () const
	Get signed curvature of the track.

float	GetTanLambda () const
	Get tangent of dip angle of the track.

float	GetPxy () const
	Get transverse momentum of the track.

float	GetCharge () const
	Get charge.

float	GetXCentre () const
	Get x coordinate of circumference.

float	GetYCentre () const
	Get y coordinate of circumference.

float	GetRadius () const
	Get radius of circumference.

Private Attributes
CartesianVector	m_referencePoint
	The coordinates of the reference point.

CartesianVector	m_momentum
	The momentum vector at reference point.

float	m_phi0
	phi0 in canonical parameterization

float	m_d0
	d0 in canonical parameterisation

float	m_z0
	z0 in canonical parameterisation

float	m_omega
	signed curvature in canonical parameterisation

float	m_tanLambda
	tanLambda

float	m_pxy
	The transverse momentum.

float	m_charge
	The particle charge.

float	m_xCentre
	The circle centre x coordinate.

float	m_yCentre
	The circle centre y coordinate.

float	m_radius
	The radius of circle in XY plane.

float	m_phiRefPoint
	Phi w.r.t. (X0, Y0) of circle at reference point.

float	m_phiAtPCA
	Phi w.r.t. (X0, Y0) of circle at point of closest approach.

float	m_xAtPCA
	x coordinate at point of closest approach

float	m_yAtPCA
	y coordinate at point of closest approach

float	m_pxAtPCA
	Momentum x component at point of closest approach.

float	m_pyAtPCA
	Momentum y component at point of closest approach.

float	m_phiMomRefPoint
	Phi of Momentum vector at reference point.

Static Private Attributes
static const float	FCT = 2.99792458E-4f

static const float	TWO_PI = static_cast<float>(2. * std::acos(-1.0))

static const float	HALF_PI = static_cast<float>(0.5 * std::acos(-1.0))

Detailed Description

Helix class.

Definition at line 21 of file Helix.h.

Constructor & Destructor Documentation

◆ Helix() [1/2]

pandora::Helix::Helix	(	const float	phi0,
		const float	d0,
		const float	z0,
		const float	omega,
		const float	tanlambda,
		const float	bField
	)

Constructor using canonical (LEP-wise) parameterisation.

Parameters

phi0	phi angle of momentum vector at the point of closest approach to IP in R-Phi plane
d0	signed distance of closest approach in R-Phi plane
z0	z coordinate of the point of closest approach to IP in R-Phi plane
omega	signed curvature
tanLambda	tangent of dip angle
bField	magnetic field (in Tesla)

Definition at line 24 of file Helix.cc.

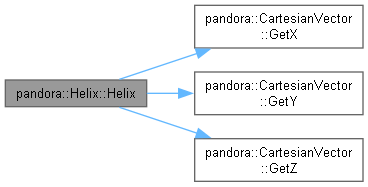

Here is the call graph for this function:

◆ Helix() [2/2]

pandora::Helix::Helix	(	const CartesianVector &	position,
		const CartesianVector &	momentum,
		const float	charge,
		const float	bField
	)

Constructor.

Parameters

position	position of the reference point
momentum	momentum vector at the reference point
charge	particle charge
bField	magnetic field (in Tesla)

Definition at line 57 of file Helix.cc.

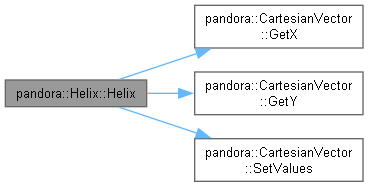

Here is the call graph for this function:

Member Function Documentation

◆ GetCharge()

float pandora::Helix::GetCharge ( ) const

inline

Get charge.

Returns: the charge

Definition at line 363 of file Helix.h.

Here is the caller graph for this function:

◆ GetD0()

float pandora::Helix::GetD0 ( ) const

inline

Get z signed distance of closest approach to IP in the R-Phi plane.

Returns: the signed distance of closest approach

Definition at line 328 of file Helix.h.

◆ GetDistanceToHelix()

StatusCode pandora::Helix::GetDistanceToHelix	(	const Helix *const	pHelix,
		CartesianVector &	positionOfClosestApproach,
		CartesianVector &	v0momentum,
		float &	helixDistance
	)		const

Get distance between two helices.

Parameters

pHelix	address of a second helix
positionOfClosestApproach	to receive position of the point of closest approach
v0momentum	to receive the v0 momentum
helixDistance	to receive the distance between the two helices

Definition at line 349 of file Helix.cc.

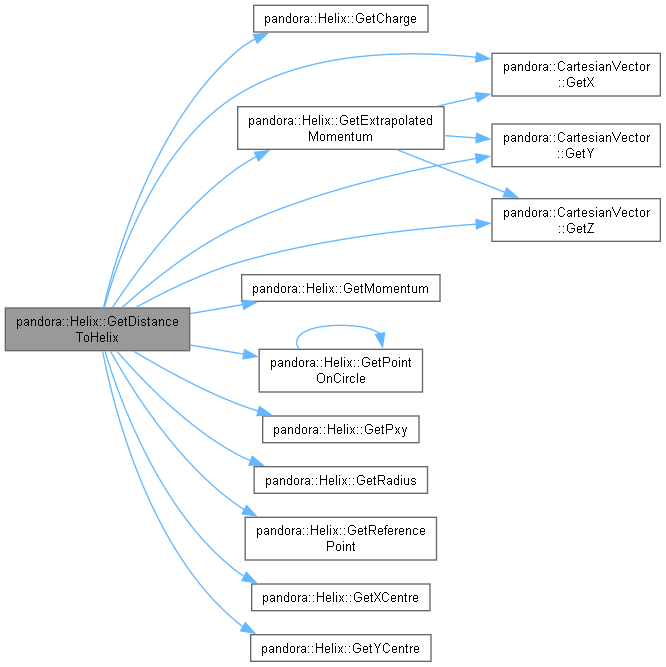

Here is the call graph for this function:

◆ GetDistanceToPoint() [1/2]

StatusCode pandora::Helix::GetDistanceToPoint	(	const CartesianVector &	point,
		CartesianVector &	distance
	)		const

inline

Get distance of the closest approach of helix to an arbitrary point in space.

Parameters

point	coordinates of the specified point
distance	to receive a vector of distances from helix to point in the following projections: x component: distance in R-Phi plane y-component: distance along Z axis z-component: 3D distance magnitude

Definition at line 296 of file Helix.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDistanceToPoint() [2/2]

StatusCode pandora::Helix::GetDistanceToPoint	(	const CartesianVector &	point,
		CartesianVector &	distance,
		float &	genericTime
	)		const

Get distance of the closest approach of helix to an arbitrary point in space.

Parameters

point	coordinates of the specified point
distance	to receive a vector of distances from helix to point in the following projections: x component: distance in R-Phi plane y-component: distance along Z axis z-component: 3D distance magnitude
genericTime	to receive the generic time (helix length, from reference point to intersection, divided by particle momentum)

Definition at line 298 of file Helix.cc.

Here is the call graph for this function:

◆ GetExtrapolatedMomentum()

CartesianVector pandora::Helix::GetExtrapolatedMomentum ( const CartesianVector & position ) const

Parameters

Get	extrapolated momentum at a specified position
position	the specified position

Returns: the extrapolated momentum

Definition at line 522 of file Helix.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMomentum()

const CartesianVector & pandora::Helix::GetMomentum ( ) const

inline

Get momentum of particle at the point of closest approach to IP.

Returns: the momentum of particle

Definition at line 304 of file Helix.h.

Here is the caller graph for this function:

◆ GetOmega()

float pandora::Helix::GetOmega ( ) const

inline

Get signed curvature of the track.

Returns: the signed curvature of the track

Definition at line 342 of file Helix.h.

◆ GetPhi0()

float pandora::Helix::GetPhi0 ( ) const

inline

Get phi angle of the momentum vector at the point of closest approach to IP.

Returns: the phi angle of the momentum vector

Definition at line 318 of file Helix.h.

◆ GetPointInXY() [1/2]

StatusCode pandora::Helix::GetPointInXY	(	const float	x0,
		const float	y0,
		const float	ax,
		const float	ay,
		const CartesianVector &	referencePoint,
		CartesianVector &	intersectionPoint
	)		const

inline

Get helix intersection point with a plane parallel to z axis. The plane is defined by two coordinates in the plane (x0,y0) and a normal vector (ax,ay).

Parameters

x0	x coordinate in the specified plane
y0	y coordinate in the specified plane
ax	x component of vector normal to specified plane
ay	y component of vector normal to specified plane
referencePoint	the reference point of the helix
intersectionPoint	to receive the coordinates of the intersection point

Definition at line 271 of file Helix.h.

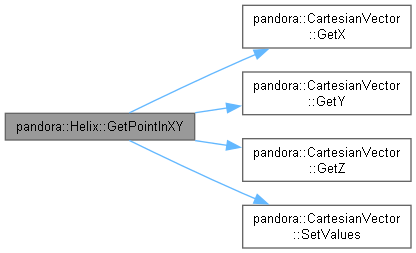

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPointInXY() [2/2]

StatusCode pandora::Helix::GetPointInXY	(	const float	x0,
		const float	y0,
		const float	ax,
		const float	ay,
		const CartesianVector &	referencePoint,
		CartesianVector &	intersectionPoint,
		float &	genericTime
	)		const

Get helix intersection point with a plane parallel to z axis. The plane is defined by two coordinates in the plane (x0,y0) and a normal vector (ax,ay).

Parameters

x0	x coordinate in the specified plane
y0	y coordinate in the specified plane
ax	x component of vector normal to specified plane
ay	y component of vector normal to specified plane
referencePoint	the reference point of the helix
intersectionPoint	to receive the coordinates of the intersection point
genericTime	to receive the generic time (helix length, from reference point to intersection, divided by particle momentum)

Definition at line 132 of file Helix.cc.

Here is the call graph for this function:

◆ GetPointInZ() [1/2]

StatusCode pandora::Helix::GetPointInZ	(	const float	zPlane,
		const CartesianVector &	referencePoint,
		CartesianVector &	intersectionPoint
	)		const

inline

Get helix intersection point with a plane perpendicular to z axis.

Parameters

zPlane	the z coordinate for the specified plane
referencePoint	the reference point of the helix
intersectionPoint	to receive the coordinates of the intersection point

Definition at line 280 of file Helix.h.

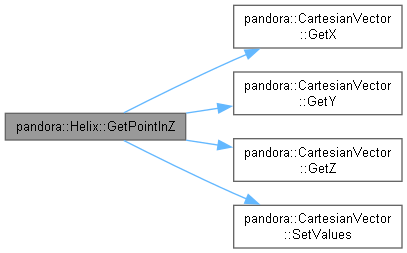

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPointInZ() [2/2]

StatusCode pandora::Helix::GetPointInZ	(	const float	zPlane,
		const CartesianVector &	referencePoint,
		CartesianVector &	intersectionPoint,
		float &	genericTime
	)		const

Get helix intersection point with a plane perpendicular to z axis.

Parameters

zPlane	the z coordinate for the specified plane
referencePoint	the reference point of the helix
intersectionPoint	to receive the coordinates of the intersection point
genericTime	to receive the generic time (helix length, from reference point to intersection, divided by particle momentum)

Definition at line 204 of file Helix.cc.

Here is the call graph for this function:

◆ GetPointOnCircle() [1/2]

StatusCode pandora::Helix::GetPointOnCircle	(	const float	radius,
		const CartesianVector &	referencePoint,
		CartesianVector &	intersectionPoint
	)		const

inline

Get coordinates of helix intersection with cylinder, aligned along z-axis.

Parameters

radius	the radius of the cylinder
referencePoint	the reference point of the helix
intersectionPoint	to receive the coordinates of the intersection point

Definition at line 288 of file Helix.h.

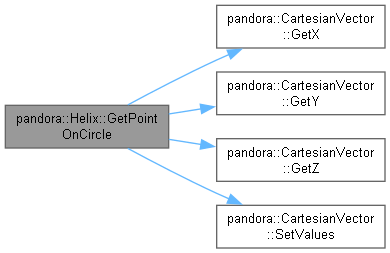

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPointOnCircle() [2/2]

StatusCode pandora::Helix::GetPointOnCircle	(	const float	radius,
		const CartesianVector &	referencePoint,
		CartesianVector &	intersectionPoint,
		float &	genericTime
	)		const

Get coordinates of helix intersection with cylinder, aligned along z-axis.

Parameters

radius	the radius of the cylinder
referencePoint	the reference point of the helix
intersectionPoint	to receive the coordinates of the intersection point
genericTime	to receive the generic time (helix length, from reference point to intersection, divided by particle momentum)

Definition at line 222 of file Helix.cc.

Here is the call graph for this function:

◆ GetPxy()

float pandora::Helix::GetPxy ( ) const

inline

Get transverse momentum of the track.

Returns: the transverse momentum of the track

Definition at line 356 of file Helix.h.

Here is the caller graph for this function:

◆ GetRadius()

float pandora::Helix::GetRadius ( ) const

inline

Get radius of circumference.

Returns: the radius of circumference

Definition at line 384 of file Helix.h.

Here is the caller graph for this function:

◆ GetReferencePoint()

const CartesianVector & pandora::Helix::GetReferencePoint ( ) const

inline

Get reference point of track.

Returns: the reference point of track

Definition at line 311 of file Helix.h.

Here is the caller graph for this function:

◆ GetTanLambda()

float pandora::Helix::GetTanLambda ( ) const

inline

Get tangent of dip angle of the track.

Returns: the tangent of dip angle of the track

Definition at line 349 of file Helix.h.

◆ GetXCentre()

float pandora::Helix::GetXCentre ( ) const

inline

Get x coordinate of circumference.

Returns: the x coordinate of circumference

Definition at line 370 of file Helix.h.

Here is the caller graph for this function:

◆ GetYCentre()

float pandora::Helix::GetYCentre ( ) const

inline

Get y coordinate of circumference.

Returns: the y coordinate of circumference

Definition at line 377 of file Helix.h.

Here is the caller graph for this function:

◆ GetZ0()

float pandora::Helix::GetZ0 ( ) const

inline

Get z coordinate of the point of closest approach to IP in the R-Phi plane.

Returns: the z coordinate of the point of closest approach

Definition at line 335 of file Helix.h.

Member Data Documentation

◆ FCT

const float pandora::Helix::FCT = 2.99792458E-4f

staticprivate

Definition at line 243 of file Helix.h.

◆ HALF_PI

const float pandora::Helix::HALF_PI = static_cast<float>(0.5 * std::acos(-1.0))

staticprivate

Definition at line 245 of file Helix.h.

◆ m_charge

float pandora::Helix::m_charge

private

The particle charge.

Definition at line 256 of file Helix.h.

◆ m_d0

float pandora::Helix::m_d0

private

d0 in canonical parameterisation

Definition at line 251 of file Helix.h.

◆ m_momentum

CartesianVector pandora::Helix::m_momentum

private

The momentum vector at reference point.

Definition at line 248 of file Helix.h.

◆ m_omega

float pandora::Helix::m_omega

private

signed curvature in canonical parameterisation

Definition at line 253 of file Helix.h.

◆ m_phi0

float pandora::Helix::m_phi0

private

phi0 in canonical parameterization

Definition at line 250 of file Helix.h.

◆ m_phiAtPCA

float pandora::Helix::m_phiAtPCA

private

Phi w.r.t. (X0, Y0) of circle at point of closest approach.

Definition at line 261 of file Helix.h.

◆ m_phiMomRefPoint

float pandora::Helix::m_phiMomRefPoint

private

Phi of Momentum vector at reference point.

Definition at line 266 of file Helix.h.

◆ m_phiRefPoint

float pandora::Helix::m_phiRefPoint

private

Phi w.r.t. (X0, Y0) of circle at reference point.

Definition at line 260 of file Helix.h.

◆ m_pxAtPCA

float pandora::Helix::m_pxAtPCA

private

Momentum x component at point of closest approach.

Definition at line 264 of file Helix.h.

◆ m_pxy

float pandora::Helix::m_pxy

private

The transverse momentum.

Definition at line 255 of file Helix.h.

◆ m_pyAtPCA

float pandora::Helix::m_pyAtPCA

private

Momentum y component at point of closest approach.

Definition at line 265 of file Helix.h.

◆ m_radius

float pandora::Helix::m_radius

private

The radius of circle in XY plane.

Definition at line 259 of file Helix.h.

◆ m_referencePoint

CartesianVector pandora::Helix::m_referencePoint

private

The coordinates of the reference point.

Definition at line 247 of file Helix.h.

◆ m_tanLambda

float pandora::Helix::m_tanLambda

private

tanLambda

Definition at line 254 of file Helix.h.

◆ m_xAtPCA

float pandora::Helix::m_xAtPCA

private

x coordinate at point of closest approach

Definition at line 262 of file Helix.h.

◆ m_xCentre

float pandora::Helix::m_xCentre

private

The circle centre x coordinate.

Definition at line 257 of file Helix.h.

◆ m_yAtPCA

float pandora::Helix::m_yAtPCA

private

y coordinate at point of closest approach

Definition at line 263 of file Helix.h.

◆ m_yCentre

float pandora::Helix::m_yCentre

private

The circle centre y coordinate.

Definition at line 258 of file Helix.h.

◆ m_z0

float pandora::Helix::m_z0

private

z0 in canonical parameterisation

Definition at line 252 of file Helix.h.

◆ TWO_PI

const float pandora::Helix::TWO_PI = static_cast<float>(2. * std::acos(-1.0))

staticprivate

Definition at line 244 of file Helix.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Objects/Helix.h
PandoraSDK/src/Objects/Helix.cc

Public Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Helix() [1/2]

◆ Helix() [2/2]

Member Function Documentation

◆ GetCharge()

◆ GetD0()

◆ GetDistanceToHelix()

◆ GetDistanceToPoint() [1/2]

◆ GetDistanceToPoint() [2/2]

◆ GetExtrapolatedMomentum()

◆ GetMomentum()

◆ GetOmega()

◆ GetPhi0()

◆ GetPointInXY() [1/2]

◆ GetPointInXY() [2/2]

◆ GetPointInZ() [1/2]

◆ GetPointInZ() [2/2]

◆ GetPointOnCircle() [1/2]

◆ GetPointOnCircle() [2/2]

◆ GetPxy()

◆ GetRadius()

◆ GetReferencePoint()

◆ GetTanLambda()

◆ GetXCentre()

◆ GetYCentre()

◆ GetZ0()

Member Data Documentation

◆ FCT

◆ HALF_PI

◆ m_charge

◆ m_d0

◆ m_momentum

◆ m_omega

◆ m_phi0

◆ m_phiAtPCA

◆ m_phiMomRefPoint

◆ m_phiRefPoint

◆ m_pxAtPCA

◆ m_pxy

◆ m_pyAtPCA

◆ m_radius

◆ m_referencePoint

◆ m_tanLambda

◆ m_xAtPCA

◆ m_xCentre

◆ m_yAtPCA

◆ m_yCentre

◆ m_z0

◆ TWO_PI
