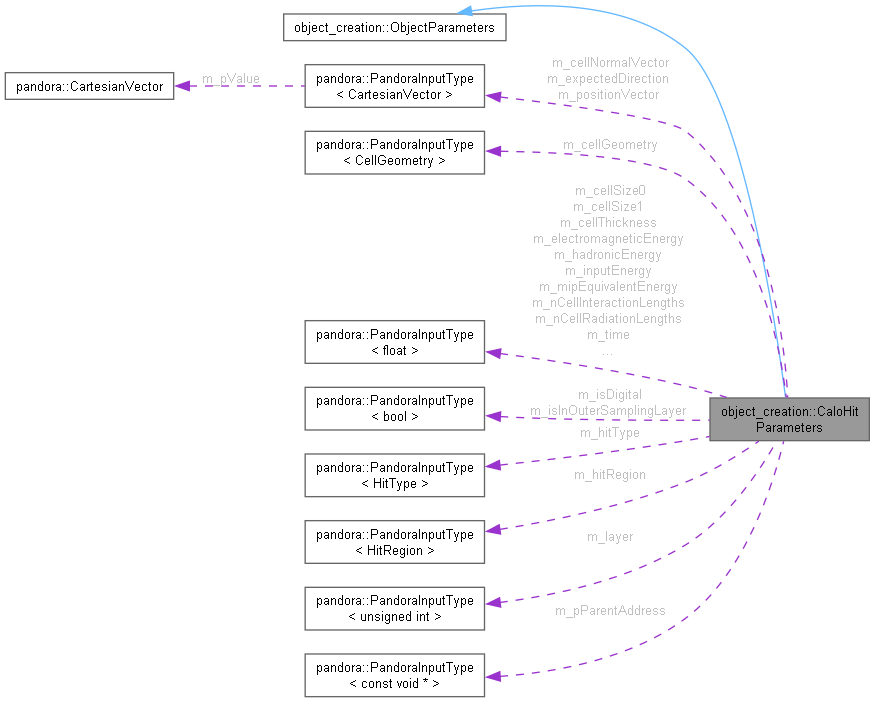

CaloHitParameters class. More...
#include "ObjectCreation.h"
Public Attributes | |
| pandora::InputCartesianVector | m_positionVector |
| Position vector of center of calorimeter cell, units mm. | |
| pandora::InputCartesianVector | m_expectedDirection |
| Unit vector in direction of expected hit propagation. | |
| pandora::InputCartesianVector | m_cellNormalVector |
| Unit normal to sampling layer, pointing outwards from the origin. | |
| pandora::InputCellGeometry | m_cellGeometry |
| The cell geometry type, pointing or rectangular. | |
| pandora::InputFloat | m_cellSize0 |
| Cell size 0 [pointing: eta, rectangular: up in ENDCAP, along beam in BARREL, units mm]. | |
| pandora::InputFloat | m_cellSize1 |
| Cell size 1 [pointing: phi, rectangular: perpendicular to size 0 and thickness, units mm]. | |
| pandora::InputFloat | m_cellThickness |
| Cell thickness, units mm. | |
| pandora::InputFloat | m_nCellRadiationLengths |
| Absorber material in front of cell, units radiation lengths. | |
| pandora::InputFloat | m_nCellInteractionLengths |
| Absorber material in front of cell, units interaction lengths. | |
| pandora::InputFloat | m_time |
| Time of (earliest) energy deposition in this cell, units ns. | |
| pandora::InputFloat | m_inputEnergy |
| Corrected energy of calorimeter cell in user framework, units GeV. | |
| pandora::InputFloat | m_mipEquivalentEnergy |
| The calibrated mip equivalent energy, units mip. | |
| pandora::InputFloat | m_electromagneticEnergy |
| The calibrated electromagnetic energy measure, units GeV. | |
| pandora::InputFloat | m_hadronicEnergy |
| The calibrated hadronic energy measure, units GeV. | |
| pandora::InputBool | m_isDigital |
| Whether cell should be treated as digital. | |
| pandora::InputHitType | m_hitType |
| The type of calorimeter hit. | |
| pandora::InputHitRegion | m_hitRegion |
| Region of the detector in which the calo hit is located. | |
| pandora::InputUInt | m_layer |
| The subdetector readout layer number. | |
| pandora::InputBool | m_isInOuterSamplingLayer |
| Whether cell is in one of the outermost detector sampling layers. | |
| pandora::InputAddress | m_pParentAddress |
| Address of the parent calo hit in the user framework. | |
Detailed Description
CaloHitParameters class.
Definition at line 117 of file ObjectCreation.h.
Member Data Documentation
◆ m_cellGeometry
| pandora::InputCellGeometry object_creation::CaloHitParameters::m_cellGeometry |
The cell geometry type, pointing or rectangular.
Definition at line 123 of file ObjectCreation.h.
◆ m_cellNormalVector
| pandora::InputCartesianVector object_creation::CaloHitParameters::m_cellNormalVector |
Unit normal to sampling layer, pointing outwards from the origin.
Definition at line 122 of file ObjectCreation.h.
◆ m_cellSize0
| pandora::InputFloat object_creation::CaloHitParameters::m_cellSize0 |
Cell size 0 [pointing: eta, rectangular: up in ENDCAP, along beam in BARREL, units mm].
Definition at line 124 of file ObjectCreation.h.
◆ m_cellSize1
| pandora::InputFloat object_creation::CaloHitParameters::m_cellSize1 |
Cell size 1 [pointing: phi, rectangular: perpendicular to size 0 and thickness, units mm].
Definition at line 125 of file ObjectCreation.h.
◆ m_cellThickness
| pandora::InputFloat object_creation::CaloHitParameters::m_cellThickness |
Cell thickness, units mm.
Definition at line 126 of file ObjectCreation.h.
◆ m_electromagneticEnergy
| pandora::InputFloat object_creation::CaloHitParameters::m_electromagneticEnergy |
The calibrated electromagnetic energy measure, units GeV.
Definition at line 132 of file ObjectCreation.h.
◆ m_expectedDirection
| pandora::InputCartesianVector object_creation::CaloHitParameters::m_expectedDirection |
Unit vector in direction of expected hit propagation.
Definition at line 121 of file ObjectCreation.h.
◆ m_hadronicEnergy
| pandora::InputFloat object_creation::CaloHitParameters::m_hadronicEnergy |
The calibrated hadronic energy measure, units GeV.
Definition at line 133 of file ObjectCreation.h.
◆ m_hitRegion
| pandora::InputHitRegion object_creation::CaloHitParameters::m_hitRegion |
Region of the detector in which the calo hit is located.
Definition at line 136 of file ObjectCreation.h.
◆ m_hitType
| pandora::InputHitType object_creation::CaloHitParameters::m_hitType |
The type of calorimeter hit.
Definition at line 135 of file ObjectCreation.h.
◆ m_inputEnergy
| pandora::InputFloat object_creation::CaloHitParameters::m_inputEnergy |
Corrected energy of calorimeter cell in user framework, units GeV.
Definition at line 130 of file ObjectCreation.h.
◆ m_isDigital
| pandora::InputBool object_creation::CaloHitParameters::m_isDigital |
Whether cell should be treated as digital.
Definition at line 134 of file ObjectCreation.h.
◆ m_isInOuterSamplingLayer
| pandora::InputBool object_creation::CaloHitParameters::m_isInOuterSamplingLayer |
Whether cell is in one of the outermost detector sampling layers.
Definition at line 138 of file ObjectCreation.h.
◆ m_layer
| pandora::InputUInt object_creation::CaloHitParameters::m_layer |
The subdetector readout layer number.
Definition at line 137 of file ObjectCreation.h.
◆ m_mipEquivalentEnergy
| pandora::InputFloat object_creation::CaloHitParameters::m_mipEquivalentEnergy |
The calibrated mip equivalent energy, units mip.
Definition at line 131 of file ObjectCreation.h.
◆ m_nCellInteractionLengths
| pandora::InputFloat object_creation::CaloHitParameters::m_nCellInteractionLengths |
Absorber material in front of cell, units interaction lengths.
Definition at line 128 of file ObjectCreation.h.
◆ m_nCellRadiationLengths
| pandora::InputFloat object_creation::CaloHitParameters::m_nCellRadiationLengths |
Absorber material in front of cell, units radiation lengths.
Definition at line 127 of file ObjectCreation.h.
◆ m_positionVector
| pandora::InputCartesianVector object_creation::CaloHitParameters::m_positionVector |
Position vector of center of calorimeter cell, units mm.
Definition at line 120 of file ObjectCreation.h.
◆ m_pParentAddress
| pandora::InputAddress object_creation::CaloHitParameters::m_pParentAddress |
Address of the parent calo hit in the user framework.
Definition at line 139 of file ObjectCreation.h.
◆ m_time
| pandora::InputFloat object_creation::CaloHitParameters::m_time |
Time of (earliest) energy deposition in this cell, units ns.
Definition at line 129 of file ObjectCreation.h.
The documentation for this class was generated from the following file:
- PandoraSDK/include/Pandora/ObjectCreation.h
