daughter drift volume class to hold properties of daughter drift volumes More...

#include "LArPandoraGeometryComponents.h"

Public Member Functions
	LArDaughterDriftVolume (const unsigned int cryostat, const unsigned int tpc, const float centerX, const float centerY, const float centerZ, const float widthX, const float widthY, const float widthZ)
	Constructor.

unsigned int	GetCryostat () const
	Return cryostat ID.

unsigned int	GetTpc () const
	Return tpc ID.

float	GetCenterX () const
	Return X position at centre of tpc volume.

float	GetCenterY () const
	Return Y position at centre of tpc volume.

float	GetCenterZ () const
	Return Z position at centre of tpc volume.

float	GetWidthX () const
	Return X span of tpc volume.

float	GetWidthY () const
	Return Y span of tpc volume.

float	GetWidthZ () const
	Return Z span of tpc volume.

Private Attributes
unsigned int	m_cryostat

unsigned int	m_tpc

float	m_centerX

float	m_centerY

float	m_centerZ

float	m_widthX

float	m_widthY

float	m_widthZ

Detailed Description

daughter drift volume class to hold properties of daughter drift volumes

Definition at line 91 of file LArPandoraGeometryComponents.h.

Constructor & Destructor Documentation

◆ LArDaughterDriftVolume()

lar_pandora::LArDaughterDriftVolume::LArDaughterDriftVolume	(	const unsigned int	cryostat,
		const unsigned int	tpc,
		const float	centerX,
		const float	centerY,
		const float	centerZ,
		const float	widthX,
		const float	widthY,
		const float	widthZ
	)

inline

Constructor.

Parameters

cryostat	the cryostat ID
tpc	the tpc ID
centerX	centre of tpc volume (X)
centerY	centre of tpc volume (Y)
centerZ	centre of tpc volume (Z)
widthX	width of tpc volume (X)
widthY	width of tpc volume (Y)
widthZ	width of tpc volume (Z)

Definition at line 363 of file LArPandoraGeometryComponents.h.

Member Function Documentation

◆ GetCenterX()

float lar_pandora::LArDaughterDriftVolume::GetCenterX ( ) const

inline

Return X position at centre of tpc volume.

Definition at line 391 of file LArPandoraGeometryComponents.h.

Here is the caller graph for this function:

◆ GetCenterY()

float lar_pandora::LArDaughterDriftVolume::GetCenterY ( ) const

inline

Return Y position at centre of tpc volume.

Definition at line 395 of file LArPandoraGeometryComponents.h.

Here is the caller graph for this function:

◆ GetCenterZ()

float lar_pandora::LArDaughterDriftVolume::GetCenterZ ( ) const

inline

Return Z position at centre of tpc volume.

Definition at line 399 of file LArPandoraGeometryComponents.h.

Here is the caller graph for this function:

◆ GetCryostat()

unsigned int lar_pandora::LArDaughterDriftVolume::GetCryostat ( ) const

inline

Return cryostat ID.

Definition at line 383 of file LArPandoraGeometryComponents.h.

Here is the caller graph for this function:

◆ GetTpc()

unsigned int lar_pandora::LArDaughterDriftVolume::GetTpc ( ) const

inline

Return tpc ID.

Definition at line 387 of file LArPandoraGeometryComponents.h.

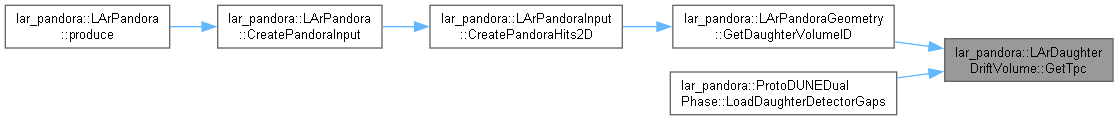

Here is the caller graph for this function:

◆ GetWidthX()

float lar_pandora::LArDaughterDriftVolume::GetWidthX ( ) const

inline

Return X span of tpc volume.

Definition at line 403 of file LArPandoraGeometryComponents.h.

Here is the caller graph for this function:

◆ GetWidthY()

float lar_pandora::LArDaughterDriftVolume::GetWidthY ( ) const

inline

Return Y span of tpc volume.

Definition at line 407 of file LArPandoraGeometryComponents.h.

Here is the caller graph for this function:

◆ GetWidthZ()

float lar_pandora::LArDaughterDriftVolume::GetWidthZ ( ) const

inline

Return Z span of tpc volume.

Definition at line 411 of file LArPandoraGeometryComponents.h.

Here is the caller graph for this function:

Member Data Documentation

◆ m_centerX

float lar_pandora::LArDaughterDriftVolume::m_centerX

private

Definition at line 157 of file LArPandoraGeometryComponents.h.

◆ m_centerY

float lar_pandora::LArDaughterDriftVolume::m_centerY

private

Definition at line 158 of file LArPandoraGeometryComponents.h.

◆ m_centerZ

float lar_pandora::LArDaughterDriftVolume::m_centerZ

private

Definition at line 159 of file LArPandoraGeometryComponents.h.

◆ m_cryostat

unsigned int lar_pandora::LArDaughterDriftVolume::m_cryostat

private

Definition at line 155 of file LArPandoraGeometryComponents.h.

◆ m_tpc

unsigned int lar_pandora::LArDaughterDriftVolume::m_tpc

private

Definition at line 156 of file LArPandoraGeometryComponents.h.

◆ m_widthX

float lar_pandora::LArDaughterDriftVolume::m_widthX

private

Definition at line 160 of file LArPandoraGeometryComponents.h.

◆ m_widthY

float lar_pandora::LArDaughterDriftVolume::m_widthY

private

Definition at line 161 of file LArPandoraGeometryComponents.h.

◆ m_widthZ

float lar_pandora::LArDaughterDriftVolume::m_widthZ

private

Definition at line 162 of file LArPandoraGeometryComponents.h.

The documentation for this class was generated from the following file:

larpandora/larpandora/LArPandoraInterface/LArPandoraGeometryComponents.h
