lar_pandora::ILArPandora Class Reference

ILArPandora class. More...

#include "ILArPandora.h"

Inheritance diagram for lar_pandora::ILArPandora:

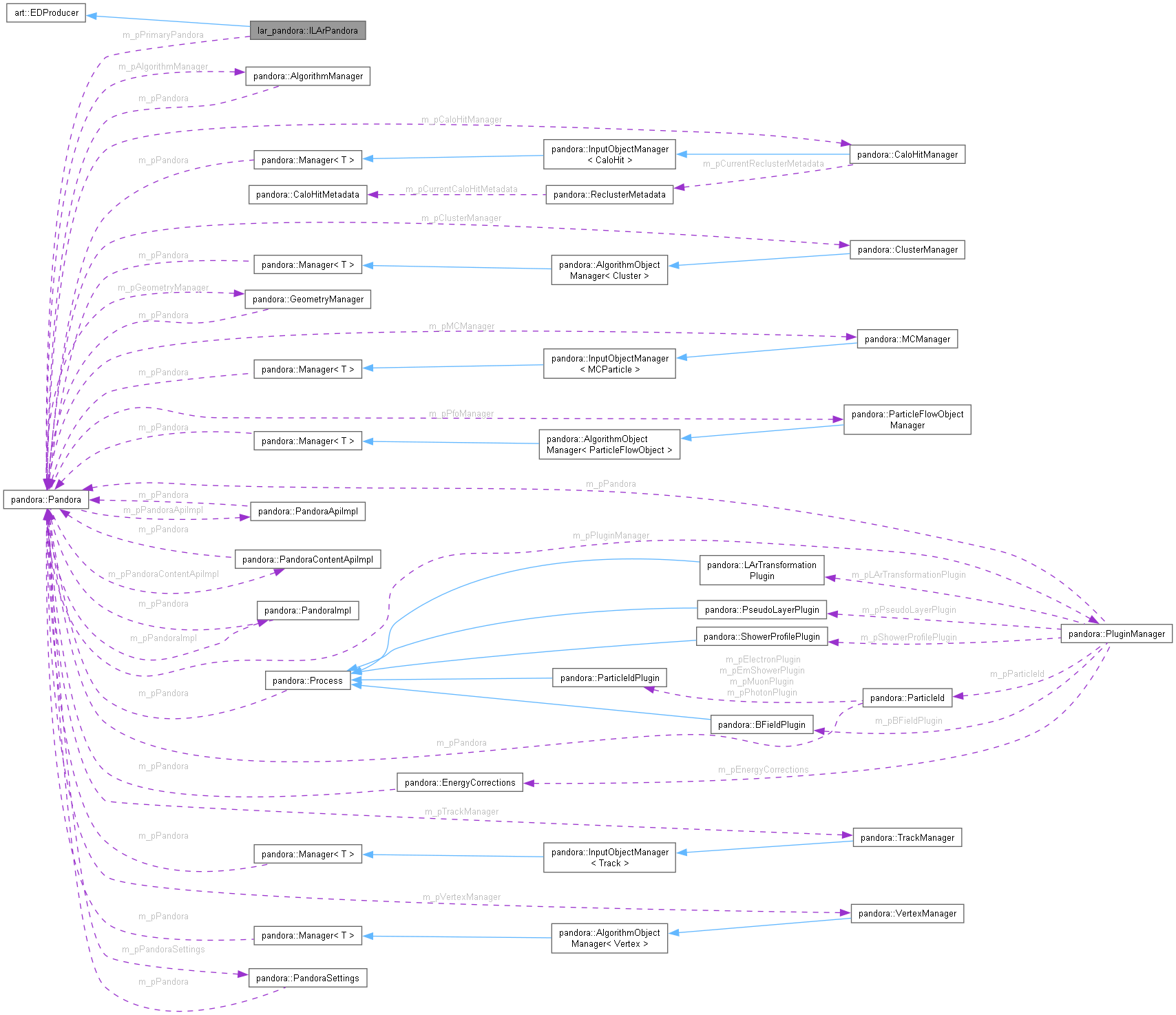

Collaboration diagram for lar_pandora::ILArPandora:

Public Member Functions
	ILArPandora (fhicl::ParameterSet const &pset)
	Constructor.
virtual	~ILArPandora ()
	Destructor.

Protected Member Functions
virtual void	CreatePandoraInstances ()=0
	Create pandora instances.
virtual void	ConfigurePandoraInstances ()=0
	Configure pandora instances.
virtual void	DeletePandoraInstances ()=0
	Delete pandora instances.
virtual void	CreatePandoraInput (art::Event &evt, IdToHitMap &idToHitMap)=0
	Create pandora input hits, mc particles etc.
virtual void	ProcessPandoraOutput (art::Event &evt, const IdToHitMap &idToHitMap)=0
	Process pandora output particle flow objects.
virtual void	RunPandoraInstances ()=0
	Run all associated pandora instances.
virtual void	ResetPandoraInstances ()=0
	Reset all associated pandora instances.

Protected Attributes
const pandora::Pandora *	m_pPrimaryPandora
	The address of the primary pandora instance.

Detailed Description

ILArPandora class.

Definition at line 29 of file ILArPandora.h.

Constructor & Destructor Documentation

ILArPandora()

lar_pandora::ILArPandora::ILArPandora ( fhicl::ParameterSet const &  pset )

inline

Constructor.

Parameters

pset	the parameter set

Definition at line 90 of file ILArPandora.h.

~ILArPandora()

lar_pandora::ILArPandora::~ILArPandora ( )

inlinevirtual

Destructor.

Definition at line 96 of file ILArPandora.h.

Member Function Documentation

ConfigurePandoraInstances()

virtual void lar_pandora::ILArPandora::ConfigurePandoraInstances ( )

protectedpure virtual

Configure pandora instances.

Implemented in lar_pandora::StandardPandora.

Here is the caller graph for this function:

CreatePandoraInput()

virtual void lar_pandora::ILArPandora::CreatePandoraInput ( art::Event &  evt, IdToHitMap &  idToHitMap  )

protectedpure virtual

Create pandora input hits, mc particles etc.

Parameters

evt	the art event
idToHitMap	to receive the populated pandora hit id to art hit map

Implemented in lar_pandora::LArPandora.

CreatePandoraInstances()

virtual void lar_pandora::ILArPandora::CreatePandoraInstances ( )

protectedpure virtual

Create pandora instances.

Implemented in lar_pandora::StandardPandora.

Here is the caller graph for this function:

DeletePandoraInstances()

virtual void lar_pandora::ILArPandora::DeletePandoraInstances ( )

protectedpure virtual

Delete pandora instances.

Implemented in lar_pandora::StandardPandora.

ProcessPandoraOutput()

virtual void lar_pandora::ILArPandora::ProcessPandoraOutput ( art::Event &  evt, const IdToHitMap &  idToHitMap  )

protectedpure virtual

Process pandora output particle flow objects.

Parameters

evt	the art event
idToHitMap	the pandora hit id to art hit map

Implemented in lar_pandora::LArPandora.

ResetPandoraInstances()

virtual void lar_pandora::ILArPandora::ResetPandoraInstances ( )

protectedpure virtual

Reset all associated pandora instances.

Implemented in lar_pandora::StandardPandora.

Here is the caller graph for this function:

RunPandoraInstances()

virtual void lar_pandora::ILArPandora::RunPandoraInstances ( )

protectedpure virtual

Run all associated pandora instances.

Implemented in lar_pandora::StandardPandora.

Here is the caller graph for this function:

Member Data Documentation

m_pPrimaryPandora

const pandora::Pandora* lar_pandora::ILArPandora::m_pPrimaryPandora

protected

The address of the primary pandora instance.

Definition at line 85 of file ILArPandora.h.

---

The documentation for this class was generated from the following file:

• larpandora/larpandora/LArPandoraInterface/ILArPandora.h
