ConsolidatedPFParticleAnalysisTemplate class. More...

Inheritance diagram for lar_pandora::ConsolidatedPFParticleAnalysisTemplate:

Collaboration diagram for lar_pandora::ConsolidatedPFParticleAnalysisTemplate:

Public Types
typedef art::Handle< std::vector< recob::PFParticle > >	PFParticleHandle

typedef std::map< size_t, art::Ptr< recob::PFParticle > >	PFParticleIdMap

typedef std::vector< art::Ptr< recob::PFParticle > >	PFParticleVector

typedef std::vector< art::Ptr< recob::Track > >	TrackVector

typedef std::vector< art::Ptr< recob::Shower > >	ShowerVector

Public Member Functions
	ConsolidatedPFParticleAnalysisTemplate (fhicl::ParameterSet const &pset)
	Constructor.

void	reconfigure (fhicl::ParameterSet const &pset)
	Configure memeber variables using FHiCL parameters.

void	analyze (const art::Event &evt)
	Analyze an event!

Private Member Functions
void	GetPFParticleIdMap (const PFParticleHandle &pfParticleHandle, PFParticleIdMap &pfParticleMap)
	Produce a mapping from PFParticle ID to the art ptr to the PFParticle itself for fast navigation.

void	PrintOutScores (const art::Event &evt, const PFParticleHandle &pfParticleHandle) const
	Print out scores in PFParticleMetadata.

void	GetFinalStatePFParticleVectors (const PFParticleIdMap &pfParticleMap, PFParticleVector &crParticles, PFParticleVector &nuParticles)
	Produce a mapping from PFParticle ID to the art ptr to the PFParticle itself for fast navigation.

void	CollectTracksAndShowers (const PFParticleVector &particles, const PFParticleHandle &pfParticleHandle, const art::Event &evt, TrackVector &tracks, ShowerVector &showers)
	Collect associated tracks and showers to particles in an input particle vector.

Private Attributes
std::string	m_pandoraLabel
	The label for the pandora producer.

std::string	m_trackLabel
	The label for the track producer from PFParticles.

std::string	m_showerLabel
	The label for the shower producer from PFParticles.

bool	m_printOutScores
	Option to investigate the associations to scores for PFParticles.

Detailed Description

ConsolidatedPFParticleAnalysisTemplate class.

Definition at line 23 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

Member Typedef Documentation

◆ PFParticleHandle

typedef art::Handle<std::vector<recob::PFParticle> > lar_pandora::ConsolidatedPFParticleAnalysisTemplate::PFParticleHandle

Definition at line 25 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

◆ PFParticleIdMap

typedef std::map<size_t, art::Ptr<recob::PFParticle> > lar_pandora::ConsolidatedPFParticleAnalysisTemplate::PFParticleIdMap

Definition at line 26 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

◆ PFParticleVector

typedef std::vector<art::Ptr<recob::PFParticle> > lar_pandora::ConsolidatedPFParticleAnalysisTemplate::PFParticleVector

Definition at line 27 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

◆ ShowerVector

typedef std::vector<art::Ptr<recob::Shower> > lar_pandora::ConsolidatedPFParticleAnalysisTemplate::ShowerVector

Definition at line 29 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

◆ TrackVector

typedef std::vector<art::Ptr<recob::Track> > lar_pandora::ConsolidatedPFParticleAnalysisTemplate::TrackVector

Definition at line 28 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

Constructor & Destructor Documentation

◆ ConsolidatedPFParticleAnalysisTemplate()

lar_pandora::ConsolidatedPFParticleAnalysisTemplate::ConsolidatedPFParticleAnalysisTemplate ( fhicl::ParameterSet const & pset )

Constructor.

Parameters

pset	the set of input fhicl parameters

Definition at line 126 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

Here is the call graph for this function:

Member Function Documentation

◆ analyze()

void lar_pandora::ConsolidatedPFParticleAnalysisTemplate::analyze ( const art::Event & evt )

Analyze an event!

Parameters

evt	the art event to analyze

Investigate scores associated as larpandoraobject::metadata for the PFParticles

Definition at line 145 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

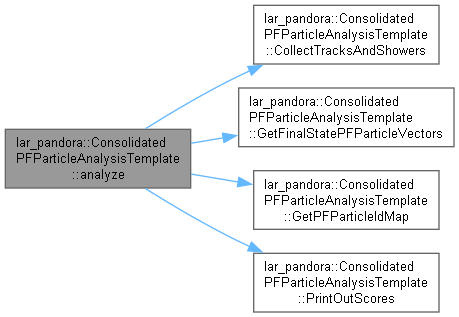

Here is the call graph for this function:

◆ CollectTracksAndShowers()

void lar_pandora::ConsolidatedPFParticleAnalysisTemplate::CollectTracksAndShowers	(	const PFParticleVector &	particles,
		const PFParticleHandle &	pfParticleHandle,
		const art::Event &	evt,
		TrackVector &	tracks,
		ShowerVector &	showers
	)

private

Collect associated tracks and showers to particles in an input particle vector.

Parameters

particles	a vector holding PFParticles from which to find the associated tracks and showers
pfParticleHandle	the handle for the PFParticle collection
evt	the art event to analyze
tracks	a vector to hold the associated tracks
showers	a vector to hold the associated showers

Definition at line 282 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

Here is the caller graph for this function:

◆ GetFinalStatePFParticleVectors()

void lar_pandora::ConsolidatedPFParticleAnalysisTemplate::GetFinalStatePFParticleVectors	(	const PFParticleIdMap &	pfParticleMap,
		PFParticleVector &	crParticles,
		PFParticleVector &	nuParticles
	)

private

Produce a mapping from PFParticle ID to the art ptr to the PFParticle itself for fast navigation.

Parameters

pfParticleMap	the mapping from ID to PFParticle
crParticles	a vector to hold the top-level PFParticles reconstructed under the cosmic hypothesis
nuParticles	a vector to hold the final-states of the reconstruced neutrino

Definition at line 239 of file ConsolidatedPFParticleAnalysisTemplate_module.cc.

Here is the caller graph for this function:

◆ GetPFParticleIdMap()

void lar_pandora::ConsolidatedPFParticleAnalysisTemplate::GetPFParticleIdMap	(	const PFParticleHandle &	pfParticleHandle,
		PFParticleIdMap &	pfParticleMap
	)
