lar_content::TwoViewXOverlap Class Reference

TwoViewXOverlap class. More...

#include "LArTwoViewXOverlap.h"

Public Member Functions
	TwoViewXOverlap (const float xMin0, const float xMax0, const float xMin1, const float xMax1)
	Constructor.
float	GetXMin0 () const
	Get the min x value in the view 0.
float	GetXMax0 () const
	Get the max x value in the view 0.
float	GetXMin1 () const
	Get the min x value in the view 1.
float	GetXMax1 () const
	Get the max x value in the view 1.
float	GetXSpan0 () const
	Get the x span in the view 0.
float	GetXSpan1 () const
	Get the x span in the view 1.
float	GetTwoViewXOverlapSpan () const
	Get the x overlap span.
float	GetTwoViewXOverlapMin () const
	Get the x overlap max X value.
float	GetTwoViewXOverlapMax () const
	Get the x overlap min X value.
float	GetXOverlapFraction0 () const
	Get the fraction of the view 0 cluster that overlaps in x.
float	GetXOverlapFraction1 () const
	Get the fraction of the view 1 cluster that overlaps in x.

Private Attributes
float	m_xMin0
	The min x value in the view 0.
float	m_xMax0
	The max x value in the view 0.
float	m_xMin1
	The min x value in the view 1.
float	m_xMax1
	The max x value in the view 1.
float	m_xOverlapSpan
	The x overlap span.

Detailed Description

TwoViewXOverlap class.

Definition at line 21 of file LArTwoViewXOverlap.h.

Constructor & Destructor Documentation

TwoViewXOverlap()

lar_content::TwoViewXOverlap::TwoViewXOverlap ( const float  xMin0, const float  xMax0, const float  xMin1, const float  xMax1  )

inline

Constructor.

Parameters

xMin0	min x value in the view 0
xMax0	max x value in the view 0
xMin1	min x value in the view 1
xMax1	max x value in the view 1

Definition at line 129 of file LArTwoViewXOverlap.h.

Member Function Documentation

GetTwoViewXOverlapMax()

float lar_content::TwoViewXOverlap::GetTwoViewXOverlapMax ( ) const

inline

Get the x overlap min X value.

Returns

the x overlap max

Definition at line 196 of file LArTwoViewXOverlap.h.

Here is the caller graph for this function:

GetTwoViewXOverlapMin()

float lar_content::TwoViewXOverlap::GetTwoViewXOverlapMin ( ) const

inline

Get the x overlap max X value.

Returns

the x overlap min

Definition at line 189 of file LArTwoViewXOverlap.h.

Here is the caller graph for this function:

GetTwoViewXOverlapSpan()

float lar_content::TwoViewXOverlap::GetTwoViewXOverlapSpan ( ) const

inline

Get the x overlap span.

Returns

the x overlap span

Definition at line 182 of file LArTwoViewXOverlap.h.

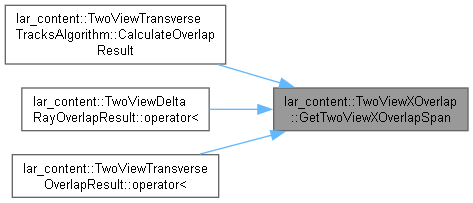

Here is the caller graph for this function:

GetXMax0()

float lar_content::TwoViewXOverlap::GetXMax0 ( ) const

inline

Get the max x value in the view 0.

Returns

the max x value in the view 0

Definition at line 147 of file LArTwoViewXOverlap.h.

Here is the caller graph for this function:

GetXMax1()

float lar_content::TwoViewXOverlap::GetXMax1 ( ) const

inline

Get the max x value in the view 1.

Returns

the max x value in the view 1

Definition at line 161 of file LArTwoViewXOverlap.h.

Here is the caller graph for this function:

GetXMin0()

float lar_content::TwoViewXOverlap::GetXMin0 ( ) const

inline

Get the min x value in the view 0.

Returns

the min x value in the view 0

Definition at line 140 of file LArTwoViewXOverlap.h.

Here is the caller graph for this function:

GetXMin1()

float lar_content::TwoViewXOverlap::GetXMin1 ( ) const

inline

Get the min x value in the view 1.

Returns

the min x value in the view 1

Definition at line 154 of file LArTwoViewXOverlap.h.

Here is the caller graph for this function:

GetXOverlapFraction0()

float lar_content::TwoViewXOverlap::GetXOverlapFraction0 ( ) const

inline

Get the fraction of the view 0 cluster that overlaps in x.

Returns

the view 0 cluster's fractional overlap

Definition at line 203 of file LArTwoViewXOverlap.h.

Here is the call graph for this function:

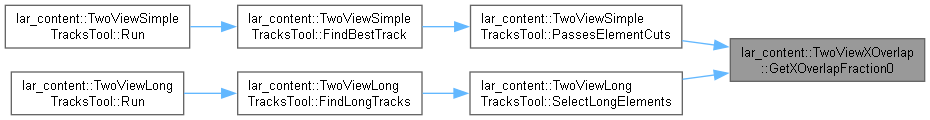

Here is the caller graph for this function:

GetXOverlapFraction1()

float lar_content::TwoViewXOverlap::GetXOverlapFraction1 ( ) const

inline

Get the fraction of the view 1 cluster that overlaps in x.

Returns

the view 1 cluster's fractional overlap

Definition at line 210 of file LArTwoViewXOverlap.h.

Here is the call graph for this function:

Here is the caller graph for this function:

GetXSpan0()

float lar_content::TwoViewXOverlap::GetXSpan0 ( ) const

inline

Get the x span in the view 0.

Returns

the x span in the view 0

Definition at line 168 of file LArTwoViewXOverlap.h.

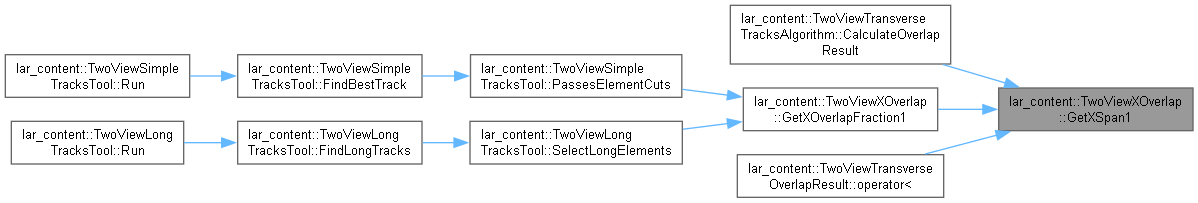

Here is the caller graph for this function:

GetXSpan1()

float lar_content::TwoViewXOverlap::GetXSpan1 ( ) const

inline

Get the x span in the view 1.

Returns

the x span in the view 1

Definition at line 175 of file LArTwoViewXOverlap.h.

Here is the caller graph for this function:

Member Data Documentation

m_xMax0

float lar_content::TwoViewXOverlap::m_xMax0

private

The max x value in the view 0.

Definition at line 113 of file LArTwoViewXOverlap.h.

m_xMax1

float lar_content::TwoViewXOverlap::m_xMax1

private

The max x value in the view 1.

Definition at line 115 of file LArTwoViewXOverlap.h.

m_xMin0

float lar_content::TwoViewXOverlap::m_xMin0

private

The min x value in the view 0.

Definition at line 112 of file LArTwoViewXOverlap.h.

m_xMin1

float lar_content::TwoViewXOverlap::m_xMin1

private

The min x value in the view 1.

Definition at line 114 of file LArTwoViewXOverlap.h.

m_xOverlapSpan

float lar_content::TwoViewXOverlap::m_xOverlapSpan

private

The x overlap span.

Definition at line 116 of file LArTwoViewXOverlap.h.

---

The documentation for this class was generated from the following file:

• LArContent/larpandoracontent/LArObjects/LArTwoViewXOverlap.h
