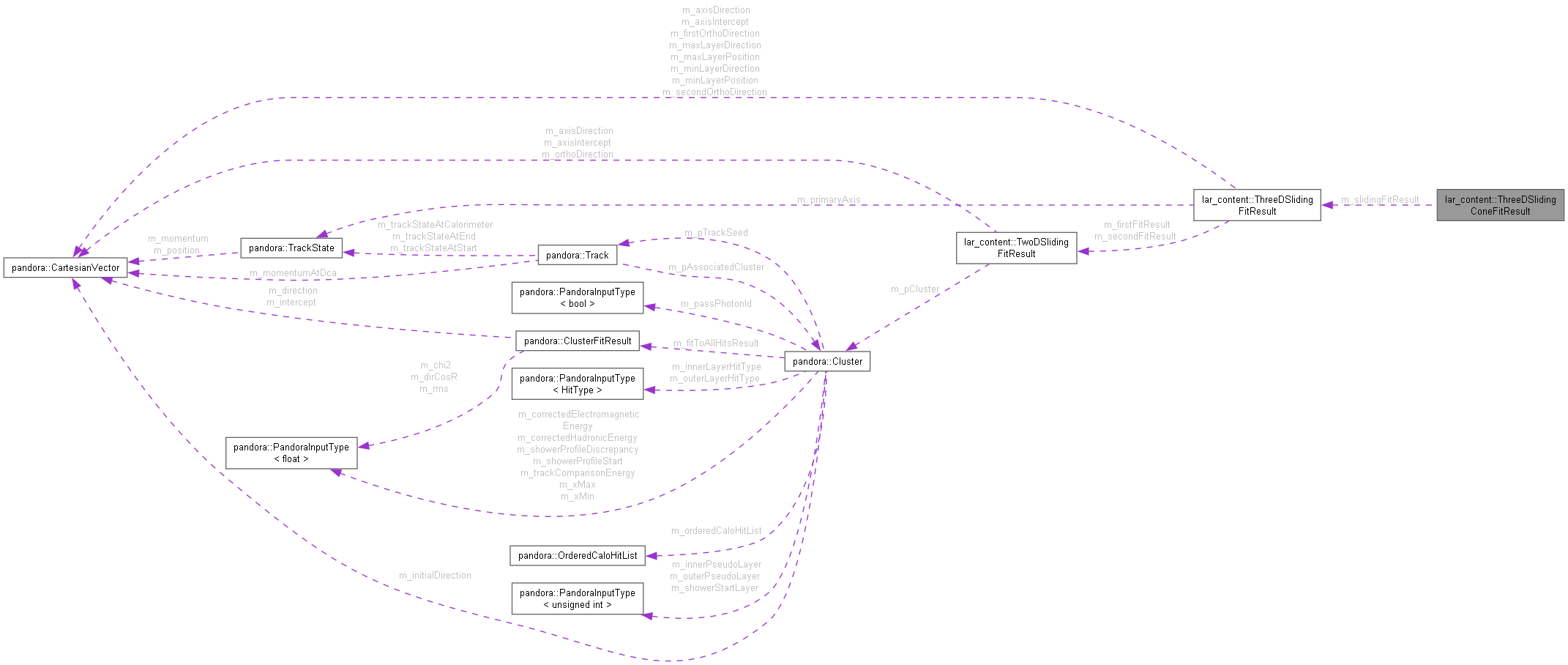

Collaboration diagram for lar_content::ThreeDSlidingConeFitResult:

[legend]

Public Member Functions
template<typename T >
	ThreeDSlidingConeFitResult (const T *const pT, const unsigned int slidingFitWindow, const float slidingFitLayerPitch)
	Constructor.

const ThreeDSlidingFitResult &	GetSlidingFitResult () const
	Get the sliding fit result for the full cluster.

const TrackStateMap &	GetTrackStateMap () const
	Get the track state map, which caches results from the sliding fit result.

void	GetSimpleConeList (const unsigned int nLayersForConeFit, const unsigned int nCones, const ConeSelection coneSelection, SimpleConeList &simpleConeList) const
	Get the list of simple cones fitted to the three dimensional cluster.

Private Types
typedef std::list< pandora::TrackState >	TrackStateLinkedList
	The track state linked list typedef.

Private Attributes
const ThreeDSlidingFitResult	m_slidingFitResult
	The sliding fit result for the full cluster.

TrackStateMap	m_trackStateMap
	The track state map.

Detailed Description

Member Typedef Documentation

private

The track state linked list typedef.

template<typename T >

template lar_content::ThreeDSlidingConeFitResult::ThreeDSlidingConeFitResult	(	const T *const	pT,
		const unsigned int	slidingFitWindow,
		const float	slidingFitLayerPitch
	)

Constructor.

Parameters

pT	describing the positions to be fitted
slidingFitWindow	the sliding fit window
slidingFitLayerPitch	the sliding fit pitch, units cm

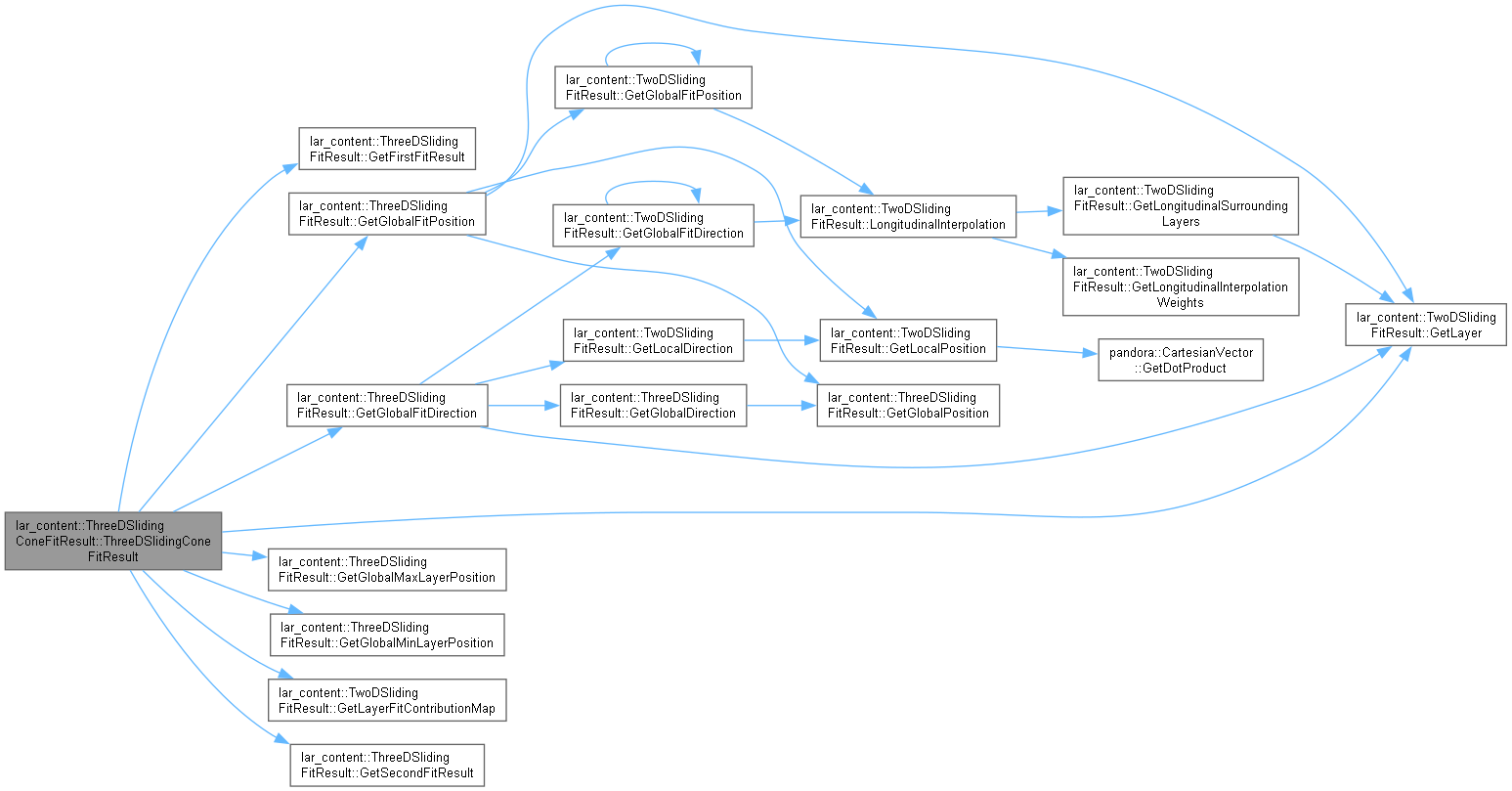

Here is the call graph for this function:

void lar_content::ThreeDSlidingConeFitResult::GetSimpleConeList	(	const unsigned int	nLayersForConeFit,
		const unsigned int	nCones,
		const ConeSelection	coneSelection,
		SimpleConeList &	simpleConeList
	)		const

Get the list of simple cones fitted to the three dimensional cluster.

Parameters

nLayersForConeFit	the number of layer to use to extract the cone direction
nCones	the number of cones to extract from the cluster (spaced uniformly along the cluster)
coneSelection	whether to receive forwards or backwards (or both) cones
simpleConeList	to receive the simple cone list

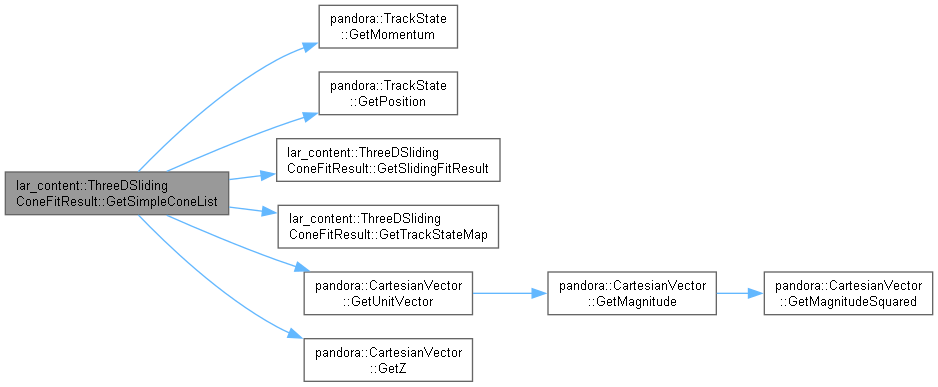

Here is the call graph for this function:
