lar_content::ShowerOverlapResult Class Reference

ShowerOverlapResult class. More...

#include "LArShowerOverlapResult.h"

Collaboration diagram for lar_content::ShowerOverlapResult:

Public Member Functions
	ShowerOverlapResult ()
	Default constructor.
	ShowerOverlapResult (const unsigned int nMatchedSamplingPoints, const unsigned int nSamplingPoints, const XOverlap &xOverlap)
	Constructor.
	ShowerOverlapResult (const ShowerOverlapResult &rhs)
	Copy constructor.
	~ShowerOverlapResult ()
	Destructor.
bool	IsInitialized () const
	Whether the track overlap result has been initialized.
unsigned int	GetNMatchedSamplingPoints () const
	Get the number of matched sampling points.
unsigned int	GetNSamplingPoints () const
	Get the number of sampling points.
float	GetMatchedFraction () const
	Get the fraction of sampling points resulting in a match.
const XOverlap &	GetXOverlap () const
	Get the x overlap object.
bool	operator< (const ShowerOverlapResult &rhs) const
	Track overlap result less than operator.
bool	operator> (const ShowerOverlapResult &rhs) const
	Track overlap result greater than operator.
ShowerOverlapResult &	operator= (const ShowerOverlapResult &rhs)
	Track overlap result assigment operator.

Protected Attributes
bool	m_isInitialized
	Whether the track overlap result has been initialized.
unsigned int	m_nMatchedSamplingPoints
	The number of matched sampling points.
unsigned int	m_nSamplingPoints
	The number of sampling points.
float	m_matchedFraction
	The fraction of sampling points resulting in a match.
XOverlap	m_xOverlap
	The x overlap object.

Detailed Description

ShowerOverlapResult class.

Definition at line 25 of file LArShowerOverlapResult.h.

Constructor & Destructor Documentation

ShowerOverlapResult() [1/3]

lar_content::ShowerOverlapResult::ShowerOverlapResult

(

)

Default constructor.

Definition at line 20 of file LArShowerOverlapResult.cc.

ShowerOverlapResult() [2/3]

lar_content::ShowerOverlapResult::ShowerOverlapResult	(	const unsigned int	nMatchedSamplingPoints,
		const unsigned int	nSamplingPoints,
		const XOverlap &	xOverlap
	)

Constructor.

Parameters

nMatchedSamplingPoints
nSamplingPoints

Definition at line 31 of file LArShowerOverlapResult.cc.

ShowerOverlapResult() [3/3]

lar_content::ShowerOverlapResult::ShowerOverlapResult

(

const ShowerOverlapResult &

rhs

)

Copy constructor.

Parameters

rhs

Definition at line 46 of file LArShowerOverlapResult.cc.

~ShowerOverlapResult()

lar_content::ShowerOverlapResult::~ShowerOverlapResult

(

)

Destructor.

Definition at line 57 of file LArShowerOverlapResult.cc.

Member Function Documentation

GetMatchedFraction()

float lar_content::ShowerOverlapResult::GetMatchedFraction ( ) const

inline

Get the fraction of sampling points resulting in a match.

Returns

the fraction of sampling points resulting in a match

Definition at line 146 of file LArShowerOverlapResult.h.

Here is the caller graph for this function:

GetNMatchedSamplingPoints()

unsigned int lar_content::ShowerOverlapResult::GetNMatchedSamplingPoints ( ) const

inline

Get the number of matched sampling points.

Returns

the number of matched sampling points

Definition at line 126 of file LArShowerOverlapResult.h.

Here is the caller graph for this function:

GetNSamplingPoints()

unsigned int lar_content::ShowerOverlapResult::GetNSamplingPoints ( ) const

inline

Get the number of sampling points.

Returns

the number of sampling points

Definition at line 136 of file LArShowerOverlapResult.h.

GetXOverlap()

const XOverlap & lar_content::ShowerOverlapResult::GetXOverlap ( ) const

inline

Get the x overlap object.

Returns

the x overlap object

Definition at line 156 of file LArShowerOverlapResult.h.

Here is the caller graph for this function:

IsInitialized()

bool lar_content::ShowerOverlapResult::IsInitialized ( ) const

inline

Whether the track overlap result has been initialized.

Returns

boolean

Definition at line 119 of file LArShowerOverlapResult.h.

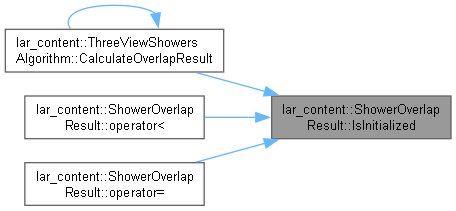

Here is the caller graph for this function:

operator<()

bool lar_content::ShowerOverlapResult::operator<

(

const ShowerOverlapResult &

rhs

)

const

Track overlap result less than operator.

Parameters

rhs	the track overlap result for comparison

Definition at line 63 of file LArShowerOverlapResult.cc.

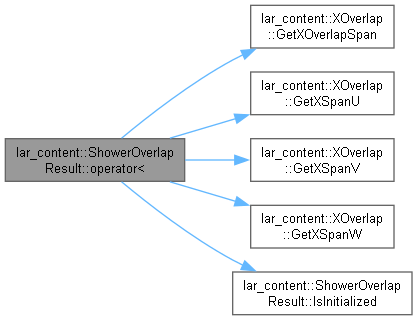

Here is the call graph for this function:

operator=()

ShowerOverlapResult & lar_content::ShowerOverlapResult::operator=

(

const ShowerOverlapResult &

rhs

)

Track overlap result assigment operator.

Parameters

rhs	the track overlap result to assign

Definition at line 107 of file LArShowerOverlapResult.cc.

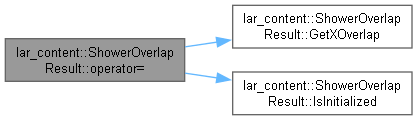

Here is the call graph for this function:

operator>()

bool lar_content::ShowerOverlapResult::operator>

(

const ShowerOverlapResult &

rhs

)

const

Track overlap result greater than operator.

Parameters

rhs	the track overlap result for comparison

Definition at line 97 of file LArShowerOverlapResult.cc.

Member Data Documentation

m_isInitialized

bool lar_content::ShowerOverlapResult::m_isInitialized

protected

Whether the track overlap result has been initialized.

Definition at line 110 of file LArShowerOverlapResult.h.

m_matchedFraction

float lar_content::ShowerOverlapResult::m_matchedFraction

protected

The fraction of sampling points resulting in a match.

Definition at line 113 of file LArShowerOverlapResult.h.

m_nMatchedSamplingPoints

unsigned int lar_content::ShowerOverlapResult::m_nMatchedSamplingPoints

protected

The number of matched sampling points.

Definition at line 111 of file LArShowerOverlapResult.h.

m_nSamplingPoints

unsigned int lar_content::ShowerOverlapResult::m_nSamplingPoints

protected

The number of sampling points.

Definition at line 112 of file LArShowerOverlapResult.h.

m_xOverlap

XOverlap lar_content::ShowerOverlapResult::m_xOverlap

protected

The x overlap object.

Definition at line 114 of file LArShowerOverlapResult.h.

---

The documentation for this class was generated from the following files:

• LArContent/larpandoracontent/LArObjects/LArShowerOverlapResult.h
• LArContent/larpandoracontent/LArObjects/LArShowerOverlapResult.cc
