lar_content::LArCaloHit Class Reference

LAr calo hit class. More...

#include "LArCaloHit.h"

Inheritance diagram for lar_content::LArCaloHit:

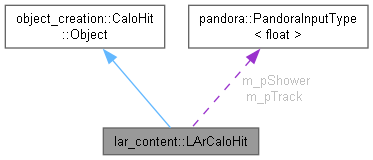

Collaboration diagram for lar_content::LArCaloHit:

Public Member Functions
	LArCaloHit (const LArCaloHitParameters &parameters)
	Constructor.
unsigned int	GetLArTPCVolumeId () const
	Get the lar tpc volume id.
unsigned int	GetDaughterVolumeId () const
	Get the daughter volume id.
void	FillParameters (LArCaloHitParameters &parameters) const
	Fill the parameters associated with this calo hit.
float	GetTrackProbability () const
	Get the probability that the hit is track-like.
float	GetShowerProbability () const
	Get the probability that the hit is shower-like.
void	SetTrackProbability (const float probability)
	Set the probability that the hit is track-like.
void	SetShowerProbability (const float probability)
	Set the probability that the hit is shower-like.

Private Attributes
unsigned int	m_larTPCVolumeId
	The lar tpc volume id.
unsigned int	m_daughterVolumeId
	The daughter volume id.
pandora::InputFloat	m_pTrack
	The probability that the hit is track-like.
pandora::InputFloat	m_pShower
	The probability that the hit is shower-like.

Detailed Description

LAr calo hit class.

Definition at line 39 of file LArCaloHit.h.

Constructor & Destructor Documentation

LArCaloHit()

lar_content::LArCaloHit::LArCaloHit ( const LArCaloHitParameters &  parameters )

inline

Constructor.

Parameters

parameters

the lar calo hit parameters

Definition at line 158 of file LArCaloHit.h.

Member Function Documentation

FillParameters()

void lar_content::LArCaloHit::FillParameters ( LArCaloHitParameters &  parameters ) const

inline

Fill the parameters associated with this calo hit.

Parameters

parameters

the output parameters

Definition at line 181 of file LArCaloHit.h.

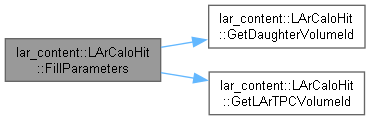

Here is the call graph for this function:

GetDaughterVolumeId()

unsigned int lar_content::LArCaloHit::GetDaughterVolumeId ( ) const

inline

Get the daughter volume id.

Returns

the daughter volume id

Definition at line 174 of file LArCaloHit.h.

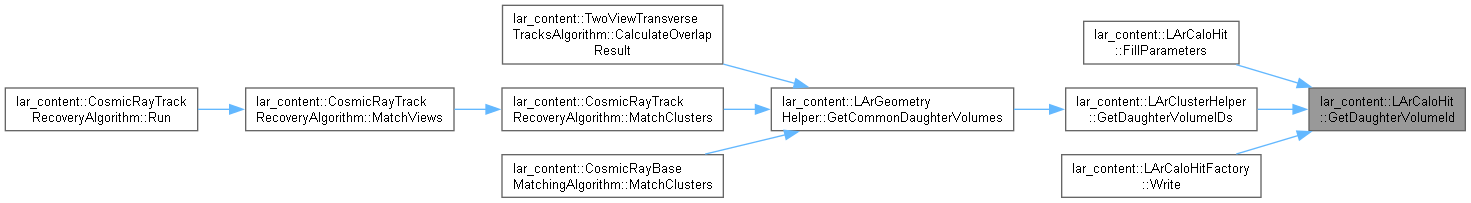

Here is the caller graph for this function:

GetLArTPCVolumeId()

unsigned int lar_content::LArCaloHit::GetLArTPCVolumeId ( ) const

inline

Get the lar tpc volume id.

Returns

the lar tpc volume id

Definition at line 167 of file LArCaloHit.h.

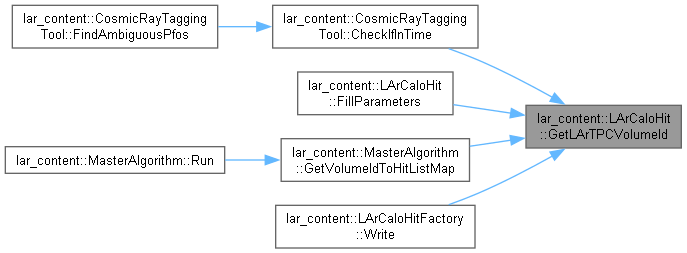

Here is the caller graph for this function:

GetShowerProbability()

float lar_content::LArCaloHit::GetShowerProbability ( ) const

inline

Get the probability that the hit is shower-like.

Returns

the probability the hit is shower-like

Definition at line 217 of file LArCaloHit.h.

Here is the call graph for this function:

GetTrackProbability()

float lar_content::LArCaloHit::GetTrackProbability ( ) const

inline

Get the probability that the hit is track-like.

Returns

the probability the hit is track-like

Definition at line 210 of file LArCaloHit.h.

Here is the call graph for this function:

Here is the caller graph for this function:

SetShowerProbability()

void lar_content::LArCaloHit::SetShowerProbability ( const float  probability )

inline

Set the probability that the hit is shower-like.

Parameters

probability

the probability the hit is shower-like

Definition at line 234 of file LArCaloHit.h.

Here is the caller graph for this function:

SetTrackProbability()

void lar_content::LArCaloHit::SetTrackProbability ( const float  probability )

inline

Set the probability that the hit is track-like.

Parameters

probability

the probability the hit is track-like

Definition at line 224 of file LArCaloHit.h.

Member Data Documentation

m_daughterVolumeId

unsigned int lar_content::LArCaloHit::m_daughterVolumeId

private

The daughter volume id.

Definition at line 100 of file LArCaloHit.h.

m_larTPCVolumeId

unsigned int lar_content::LArCaloHit::m_larTPCVolumeId

private

The lar tpc volume id.

Definition at line 99 of file LArCaloHit.h.

m_pShower

pandora::InputFloat lar_content::LArCaloHit::m_pShower

private

The probability that the hit is shower-like.

Definition at line 102 of file LArCaloHit.h.

m_pTrack

pandora::InputFloat lar_content::LArCaloHit::m_pTrack

private

The probability that the hit is track-like.

Definition at line 101 of file LArCaloHit.h.

---

The documentation for this class was generated from the following file:

• LArContent/larpandoracontent/LArObjects/LArCaloHit.h
