ShowerRecoTools::IShowerTool Class Reference

#include "IShowerTool.h"

Inheritance diagram for ShowerRecoTools::IShowerTool:

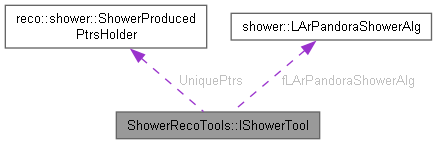

Collaboration diagram for ShowerRecoTools::IShowerTool:

Public Member Functions
	IShowerTool (const fhicl::ParameterSet &pset)
virtual	~IShowerTool () noexcept=default
virtual int	CalculateElement (const art::Ptr< recob::PFParticle > &pfparticle, art::Event &Event, reco::shower::ShowerElementHolder &ShowerEleHolder)=0
int	RunShowerTool (const art::Ptr< recob::PFParticle > &pfparticle, art::Event &Event, reco::shower::ShowerElementHolder &ShowerEleHolder, std::string evd_display_name_append="")
virtual void	InitialiseProducers ()
void	SetPtr (art::ProducesCollector *collector)
void	InitaliseProducerPtr (reco::shower::ShowerProducedPtrsHolder &uniqueproducerPtrs)
virtual int	AddAssociations (const art::Ptr< recob::PFParticle > &pfpPtr, art::Event &Event, reco::shower::ShowerElementHolder &ShowerEleHolder)

Protected Member Functions
const shower::LArPandoraShowerAlg &	GetLArPandoraShowerAlg () const
template<class T >
art::Ptr< T >	GetProducedElementPtr (std::string Name, reco::shower::ShowerElementHolder &ShowerEleHolder, int iter=-1)
template<class T >
void	InitialiseProduct (std::string Name, std::string InstanceName="")
template<class T , class A , class B >
void	AddSingle (A &a, B &b, std::string Name)
int	GetVectorPtrSize (std::string Name)
void	PrintPtrs ()
void	PrintPtr (std::string Name)

Private Attributes
reco::shower::ShowerProducedPtrsHolder *	UniquePtrs
shower::LArPandoraShowerAlg	fLArPandoraShowerAlg
bool	fRunEventDisplay
art::ProducesCollector *	collectorPtr

Detailed Description

Definition at line 30 of file IShowerTool.h.

Constructor & Destructor Documentation

IShowerTool()

ShowerRecoTools::IShowerTool::IShowerTool ( const fhicl::ParameterSet &  pset )

inline

Definition at line 33 of file IShowerTool.h.

~IShowerTool()

virtual ShowerRecoTools::IShowerTool::~IShowerTool ( )

virtualdefaultnoexcept

Member Function Documentation

AddAssociations()

virtual int ShowerRecoTools::IShowerTool::AddAssociations ( const art::Ptr< recob::PFParticle > &  pfpPtr, art::Event &  Event, reco::shower::ShowerElementHolder &  ShowerEleHolder  )

inlinevirtual

Reimplemented in ShowerRecoTools::ShowerExampleTool, ShowerRecoTools::ShowerPandoraSlidingFitTrackFinder, ShowerRecoTools::ShowerPCADirection, and ShowerRecoTools::ShowerSkeletonTool.

Definition at line 74 of file IShowerTool.h.

AddSingle()

template<class T , class A , class B >

void ShowerRecoTools::IShowerTool::AddSingle ( A &  a, B &  b, std::string  Name  )

inlineprotected

Definition at line 152 of file IShowerTool.h.

Here is the call graph for this function:

CalculateElement()

virtual int ShowerRecoTools::IShowerTool::CalculateElement ( const art::Ptr< recob::PFParticle > &  pfparticle, art::Event &  Event, reco::shower::ShowerElementHolder &  ShowerEleHolder  )

pure virtual

Implemented in ShowerRecoTools::ShowerDirectionCheater, ShowerRecoTools::ShowerStartPositionCheater, ShowerRecoTools::ShowerTrackFinderCheater, ShowerRecoTools::Shower2DLinearRegressionTrackHitFinder, ShowerRecoTools::Shower3DCylinderTrackHitFinder, ShowerRecoTools::ShowerBayesianTrucatingdEdx, ShowerRecoTools::ShowerDirectionTopologyDecisionTool, ShowerRecoTools::ShowerExampleTool, ShowerRecoTools::ShowerIncrementalTrackHitFinder, ShowerRecoTools::ShowerLengthPercentile, ShowerRecoTools::ShowerPandoraSlidingFitTrackFinder, ShowerRecoTools::ShowerPCADirection, ShowerRecoTools::ShowerPCAEigenvalueLength, ShowerRecoTools::ShowerPCAPropergationStartPosition, ShowerRecoTools::ShowerPFPVertexStartPosition, ShowerRecoTools::ShowerSkeletonTool, ShowerRecoTools::ShowerTrackColinearTrajPointDirection, ShowerRecoTools::ShowerTrackDirection, ShowerRecoTools::ShowerTrackHitDirection, ShowerRecoTools::ShowerTrackPCADirection, ShowerRecoTools::ShowerTrackSpacePointDirection, ShowerRecoTools::ShowerTrackStartPosition, ShowerRecoTools::ShowerTrackTrajPointDirection, ShowerRecoTools::ShowerTrackTrajToSpacePoint, ShowerRecoTools::ShowerTrajPointdEdx, ShowerRecoTools::ShowerUnidirectiondEdx, ShowerRecoTools::ShowerLinearEnergy, and ShowerRecoTools::ShowerNumElectronsEnergy.

Here is the caller graph for this function:

GetLArPandoraShowerAlg()

const shower::LArPandoraShowerAlg & ShowerRecoTools::IShowerTool::GetLArPandoraShowerAlg ( ) const

inlineprotected

Definition at line 82 of file IShowerTool.h.

Here is the caller graph for this function:

GetProducedElementPtr()

template<class T >

art::Ptr< T > ShowerRecoTools::IShowerTool::GetProducedElementPtr ( std::string  Name, reco::shower::ShowerElementHolder &  ShowerEleHolder, int  iter = -1  )

inlineprotected

Definition at line 102 of file IShowerTool.h.

Here is the call graph for this function:

GetVectorPtrSize()

int ShowerRecoTools::IShowerTool::GetVectorPtrSize ( std::string  Name )

inlineprotected

Definition at line 158 of file IShowerTool.h.

Here is the call graph for this function:

Here is the caller graph for this function:

InitaliseProducerPtr()

void ShowerRecoTools::IShowerTool::InitaliseProducerPtr ( reco::shower::ShowerProducedPtrsHolder &  uniqueproducerPtrs )

inline

Definition at line 68 of file IShowerTool.h.

InitialiseProducers()

virtual void ShowerRecoTools::IShowerTool::InitialiseProducers ( )

inlinevirtual

Reimplemented in ShowerRecoTools::ShowerExampleTool, ShowerRecoTools::ShowerPandoraSlidingFitTrackFinder, and ShowerRecoTools::ShowerPCADirection.

Definition at line 62 of file IShowerTool.h.

InitialiseProduct()

template<class T >

void ShowerRecoTools::IShowerTool::InitialiseProduct ( std::string  Name, std::string  InstanceName = ""  )

inlineprotected

Definition at line 137 of file IShowerTool.h.

Here is the call graph for this function:

PrintPtr()

void ShowerRecoTools::IShowerTool::PrintPtr ( std::string  Name )

inlineprotected

Definition at line 162 of file IShowerTool.h.

Here is the call graph for this function:

Here is the caller graph for this function:

PrintPtrs()

void ShowerRecoTools::IShowerTool::PrintPtrs ( )

inlineprotected

Definition at line 160 of file IShowerTool.h.

Here is the call graph for this function:

Here is the caller graph for this function:

RunShowerTool()

int ShowerRecoTools::IShowerTool::RunShowerTool ( const art::Ptr< recob::PFParticle > &  pfparticle, art::Event &  Event, reco::shower::ShowerElementHolder &  ShowerEleHolder, std::string  evd_display_name_append = ""  )

inline

Definition at line 46 of file IShowerTool.h.

Here is the call graph for this function:

SetPtr()

void ShowerRecoTools::IShowerTool::SetPtr ( art::ProducesCollector *  collector )

inline

Definition at line 65 of file IShowerTool.h.

Member Data Documentation

collectorPtr

art::ProducesCollector* ShowerRecoTools::IShowerTool::collectorPtr

private

Definition at line 97 of file IShowerTool.h.

fLArPandoraShowerAlg

shower::LArPandoraShowerAlg ShowerRecoTools::IShowerTool::fLArPandoraShowerAlg

private

Definition at line 92 of file IShowerTool.h.

fRunEventDisplay

bool ShowerRecoTools::IShowerTool::fRunEventDisplay

private

Definition at line 95 of file IShowerTool.h.

UniquePtrs

reco::shower::ShowerProducedPtrsHolder* ShowerRecoTools::IShowerTool::UniquePtrs

private

Definition at line 89 of file IShowerTool.h.

---

The documentation for this class was generated from the following file:

• larpandora/larpandora/LArPandoraEventBuilding/LArPandoraShower/Tools/IShowerTool.h
